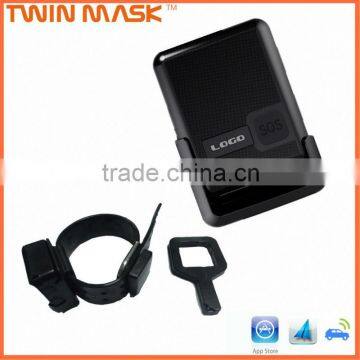

GPS +AGPS+LBS MINI Handheld gps tracking system

Malfunction:the device cannot be switched on

Possible Cause

Solution

Main power switch is in OFF position

Open the cover and slide the switch to ON position

Power button is not pressed

Please press and hold power button for 3s to switch on tracker

Battery discharged

Please charge the device for 3 hours

Malfunction: The device does not reply to SMS

Possible cause

Solution

MT-100 unable to register to the GSM network (LED flashes: 0.5s on & 0.5s off)

Move the device to an area with good GSM signal coverage.

Please check SIM card, if necessary, re-insert SIM card again.

Please check by using a mobile phone if SIM card has enough balance, is not locked or damaged.

GSM network is overloaded

Wait for message for few minutes. GSM network may be overloaded in crowded areas or during some emergency.

Authorized number is not set or is incorrect

Please check if authorized telephone number is set and the number is correct

Balance of SIM card is low or SIM card is locked

Please check by using a mobile phone if SIM card has enough balance, is not locked or damaged.

Malfunction:GPS/Glonass is not fixed for long time (Green LED: 1s on & 1s off)

Possible cause

Solution

Satellites signal is too low or unavailable

For cold start make sure that the tracker is in open sky area and its front is up to the sky.

If in the building move tracker text to the window.

Narrow street with tall buildings, heavy rain can affect normal reception.

Fault: The device fails to connect to server via GPRS

Possible cause

Solution

SIM card data (GPRS) feature is not enabled

Enable SIM card data – check with GSM provider

GPRS parameters of the tracker are not set and enabled

Set GPRS parameters and enable GPRS data transfer

Incorrect IP address or PORT

Check correct IP and port with your system administrator or service provider

GSM signal is weak

Move to a better reception area
