GY 4060 600x400mm 50W/60W/80W/100W CO2 granite stone laser engraving machine
- QINGDAO
- T/T Credit Card PayPal
You May Like
-
wood acrylic used GY 6090 600x900mm laser engraving machine price
-
Factory direct sale high quality GY 6090 600x900mm 3d laser engraving machine price
-
High speed and accuracy GY 6090 working area 600x900mm CO2 3d crystal laser engraving machine price
-
GY 6090 600x900mm wood acrylic CO2 granite stone laser engraving machine
-
Liaocheng Factory near Jinan GY G3050 300x500mm 50W/60W CO2 laser engraving machine price
-
Liaocheng Factory near Jinan GY G3050 300x500mm 50W/60W CO2 mini laser engraving machine
Product Details
| Condition | New | Laser Type | CO2 | |
| Engraving Area | 400x600mm | Engraving Speed | 0-30,000mm/min | |
| CNC or Not | Yes | Cooling Mode | Water Cooling | |
| Applicable Material | Acrylic, Crytal, Glass, Leather, MDF, Paper, plastic, Plexiglax, Plywood, Rubber, Stone, Wood | Graphic Format Supported | AI, BMP, DST, DWG, DXF, DXP, LAS, PLT | |
| Place of Origin | Shandong, China | Brand Name | Gungyue | |
| Model Number | GY-460/4060 | Dimension(L*W*H) | 1220x800x780mm | |
| Certification | CE | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
GY 4060 600x400mm 50W/60W/80W/100W CO2 granite stone laser engraving machine
DESCRIPTION
| Application of granite stone laser engraving machine |
| Mainly used for the engraving and cutting of little artistic works.such as engraved portraits,badges,breast cards and various engraved packages.It can also engrave little artistic ,seals and crabs. |

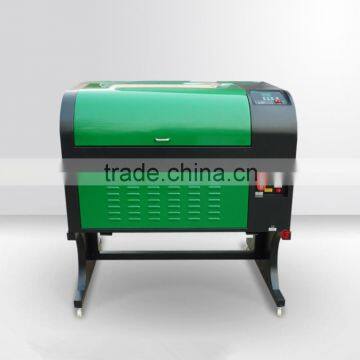

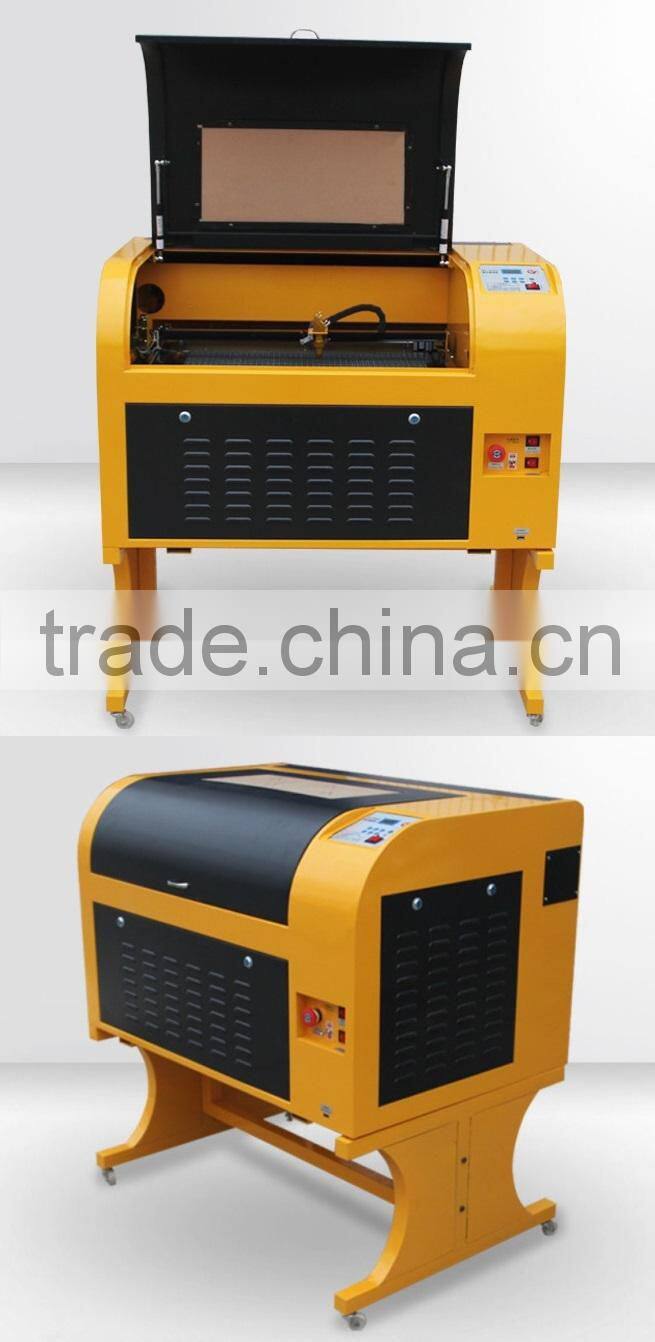

PICTURES FOR DETAILS
SPCIFICATION
| Model | GY 460/4060 granite stone laser engraving machine |
| Colour | Yellow,Green,Red(optional) |
| Working Table Size | 600 *400mm |
| Laser Tube | Sealed CO2 glass Tube |
| Working Table | Honeycomb/Aliuminium (optional) |
| Laser Power | 50W/60W/100W |
| Cutting Speed | 0-3600 mm/min |
| Engraving Speed | 0-30000mm/min |
| Resolution | ±0.05mm/1000DPI |
| Minimum Letter | English 1×1mm (Chinese Characters 2*2mm) |
| Support Fils | BMP,HPGL,PLT,DST and AI |
| Port | USB 2.0 Plug and play |
| Software | CorelDraw (Direct Output) |
| Motor | Stepper |
| Power Voltage | AC 110-220V±10%,50-60Hz |
| Working Environment | 0-45℃(temperature) 5-95%(humidity) |
| Power consumption | <300W (Total) |
| Z-Axis Movement | Automatic (0-300mm adjustable) |
| Position system | Red-light pointer |
| Cooling way | Water cooling and protection system |
| Cutting thickness | 0-15mm (upon materials type) |
| Rotary device | φ10-150×300mm(optional) |
| Packing Size | 1220*800*780mm |
| Gross Weight | 120kg |
| Material | Engraving | Cutting | Material | Engraving | Cutting | |
| Natural wood | √ | √ | Paper | √ | √ | |
| Acrylic | √ | √ | Mylar | √ | √ | |
| Glass | √ | X | Pressboard | √ | √ | |
| Double color plate | √ | √ | Rubber | √ | √ | |
| Bamboo | √ | X | Plywood | √ | √ | |
| MDF | √ | √ | Fiberglass | √ | √ | |
| Cloth | √ | √ | Painted metals | √ | √ | |
| Leather | √ | √ | Plastic | √ | √ | |
| Marble | √ | X | Ceramic | √ | X | |
| Matte boards | √ | √ | Coated metals | √ | X | |
| Stone | √ | X | Other materials | √ | √ |
| Laser power (W) | Acrylic(mm) | Plywood(mm) | MDF(mm) |
| 40W | 3 | 2 | 1.5 |
| 60W | 8 | 5 | 3 |
| 80W | 12 | 8 | 6 |
| 100W | 15 | 12 | 9 |
| 130W | 20 | 15 | 12 |
| 150W | 25 | 20 | 15 |

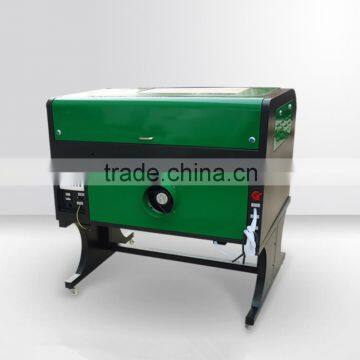

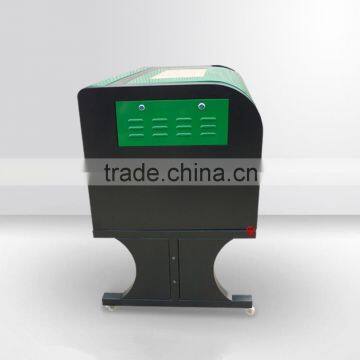

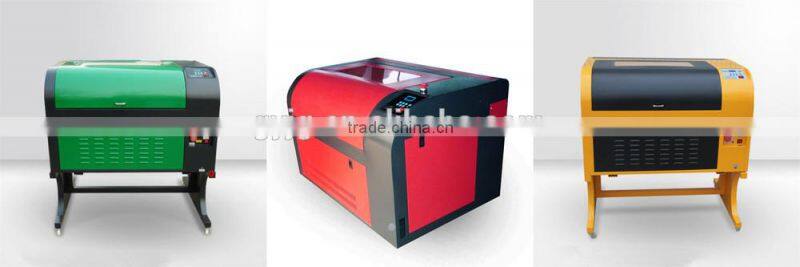

Three colours optional or as customer's requirments

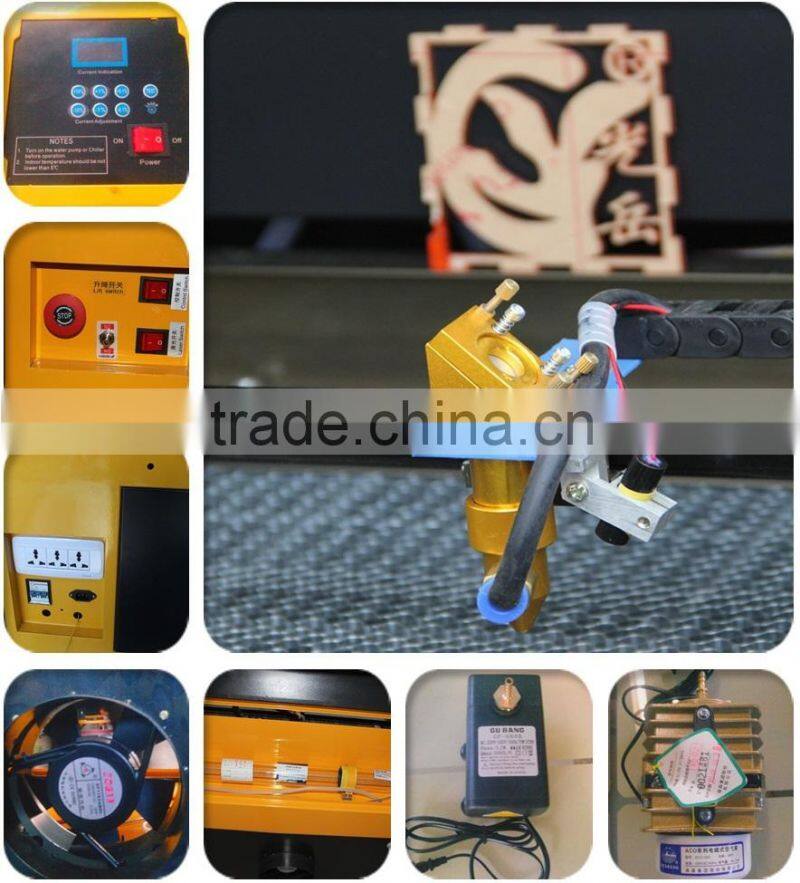

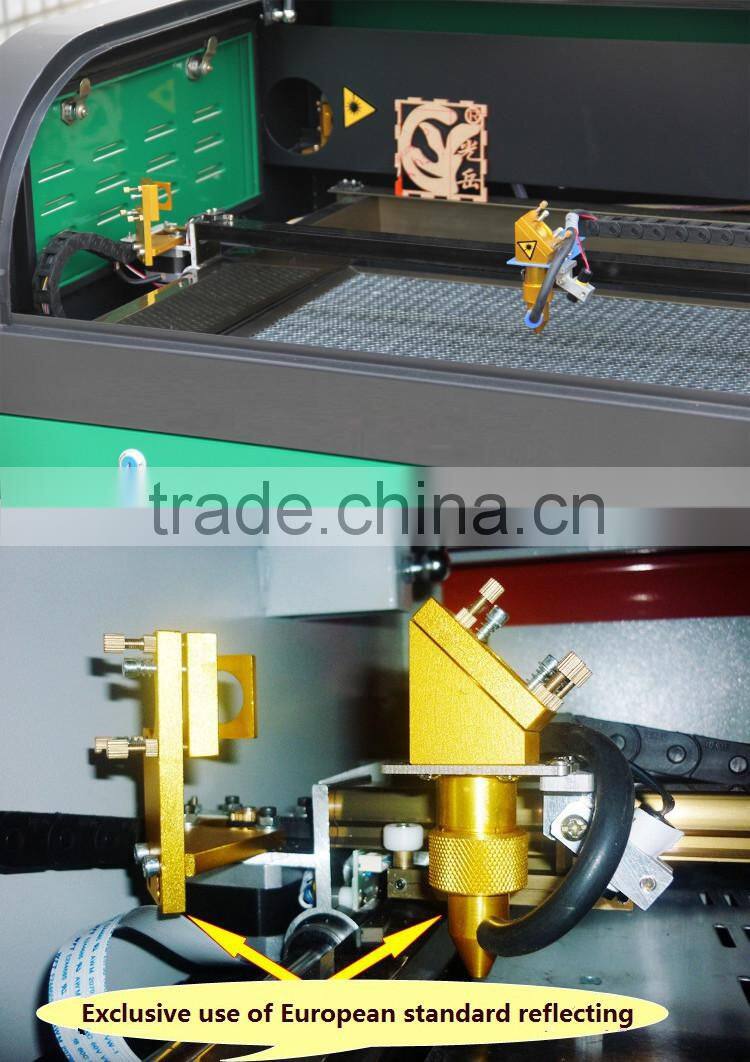

Details for parts :

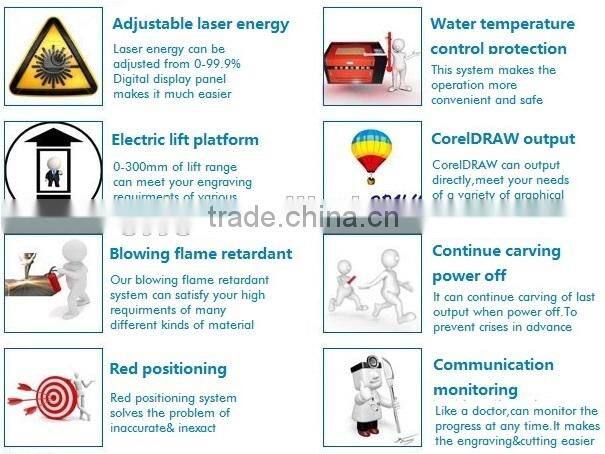

Features:
This machine can be used in which industry?
This machine can make which materials?
SOME OF SAMPLES SHOW
PACKAGING

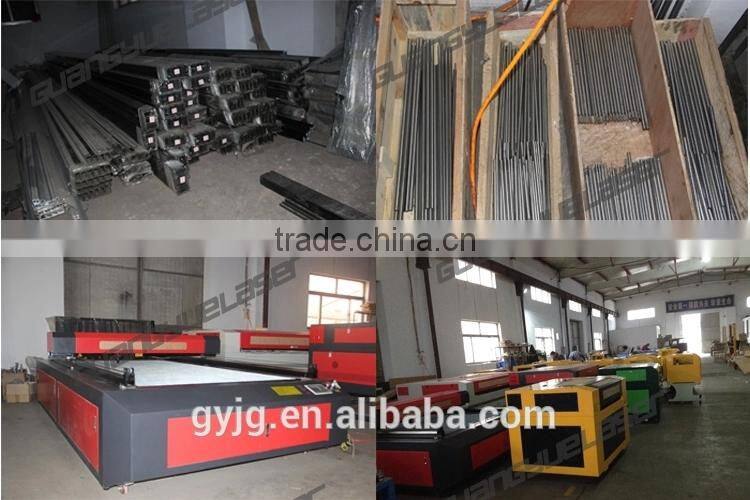

COMPANY INFORMATION
SERVICE
1.This type of laser engraving machine is guaranteed for one year;consumable parts,as laser
tube and lens is for 3 months.Any other parts are provided as agent's price
2.Full English instructions and installation Videos
3.24hrs of phone,skype,Email& trademanager online service
4.All the machines has been adjusted before delivery
5.Professional technical team can support you the best technical guidance&meet your various requirments
6.OEM service availble as your orders
CONTACT INFORMATION
Our tenet "quality first, credit standing paramountcy, price in reason, delivery in time"
Welcome to cooperate and develop with us!
If any questions,pls just contact us at any time.
Ms Ina Wang
|
| Email: inalaser@f |
| Mob: 0086-13646354381 |
Skype: inaguguwang |
QQ: 1368238825 Trademanager: cn1512504927 |
