2015New Product GY 1390 1300x900mm Wood Glass Paper 3d Laser Crystal Engraving Machine
- QINGDAO
- T/T Credit Card PayPal
You May Like
-
Hot Sale GY 1390 1300x900mm 60W/80W/100W Granite Stone Laser Engraving Machine
-
High Quality GY G4060 600x400mm 50W60W100W CO2 Mini Laser Engraving Machine
-
High Quality GY G4060 600x400mm 50W60W100W Offline Support Automatic Lifting CO2 3d Laser Engraving Machine
-
High Quality GY G4060 600x400mm 50W60W100W CO2 Granite Stone Laser Engraving Machine
-
GY 1290 1200x900mm 80W100W Laser Engraving Machine Price
-
GY 1290 1200x900mm 80W100W 3d Laser Engraving Machine
Product Details
| Condition | New | Laser Type | CO2 | |
| Engraving Area | 1300*900mm | Engraving Speed | 1500mm/s | |
| CNC or Not | Yes | Cooling Mode | Water Cooling | |
| Applicable Material | Acrylic, Crytal, Leather, MDF, Paper, plastic, Plexiglax, Plywood, Rubber, Wood | Graphic Format Supported | AI, BMP, DST, DWG, DXF, DXP, LAS, PLT | |
| Place of Origin | Shandong, China | Brand Name | Guangyue | |

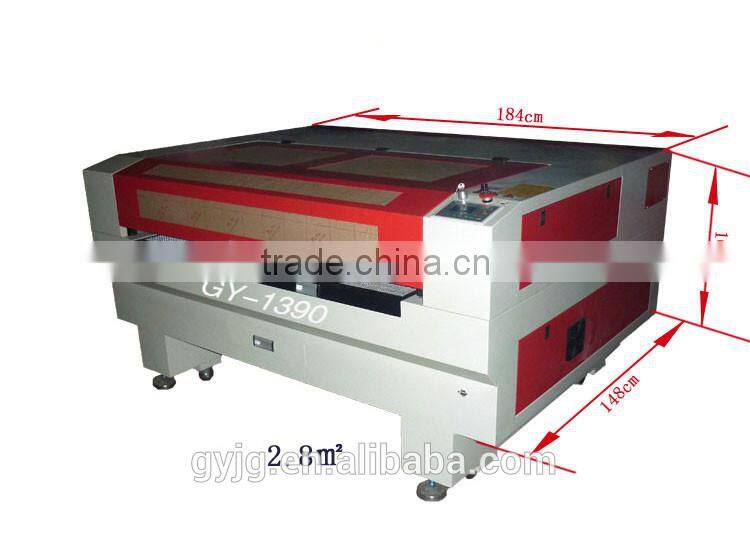

| Model Number | GY-1390s | Dimension(L*W*H) | 1840x1480x1050mm | |
| Certification | CE | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
2015New product GY 1390 1300x900mm wood glass paper 3d laser crystal engraving machine
DESCRIPTION
| Application of 3d laser crystal engraving machine |
The nonmetal materials like doublecolor board, organic glass,crystal, wood, paper, leather and rubber etc. The industries like advertising logomaking, crafts& gifts, crystal, relief sculpture, leather &cloth, embroidery and decoration. |

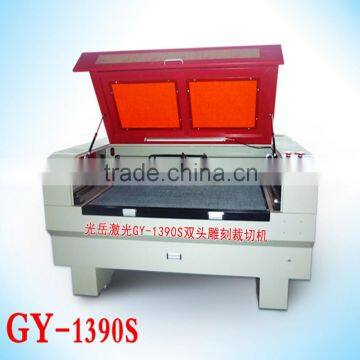

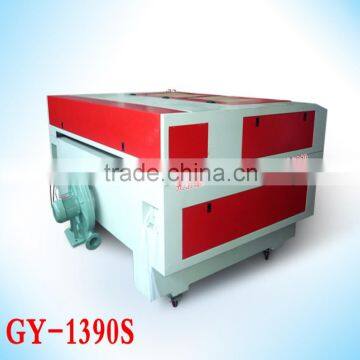

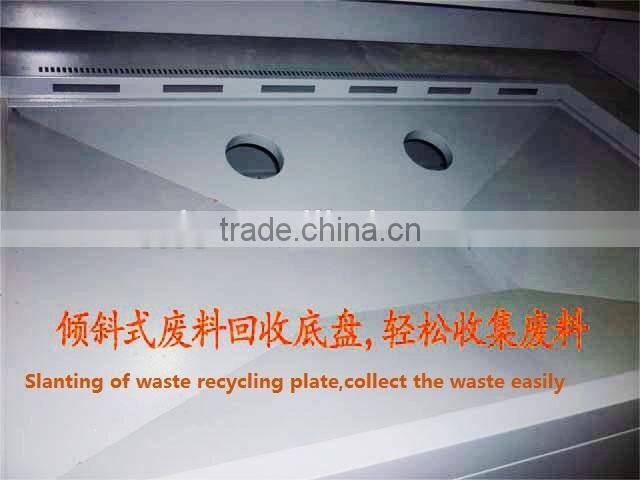

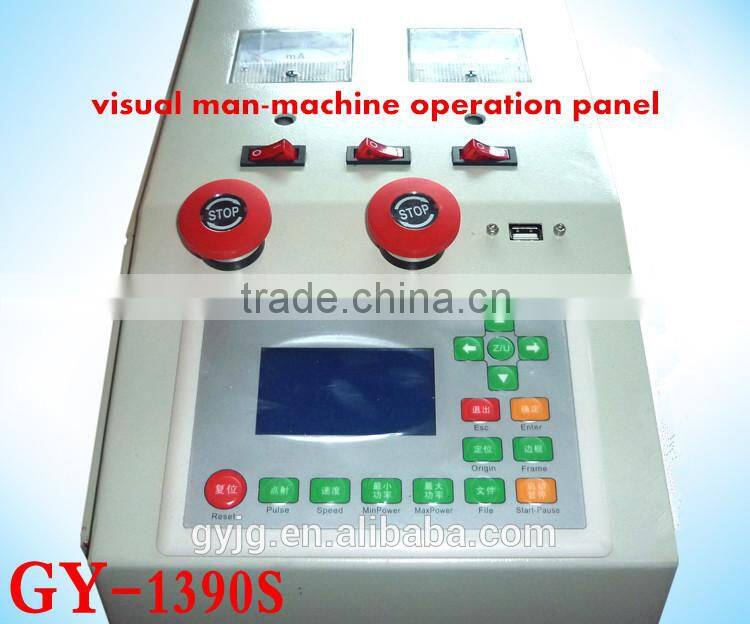

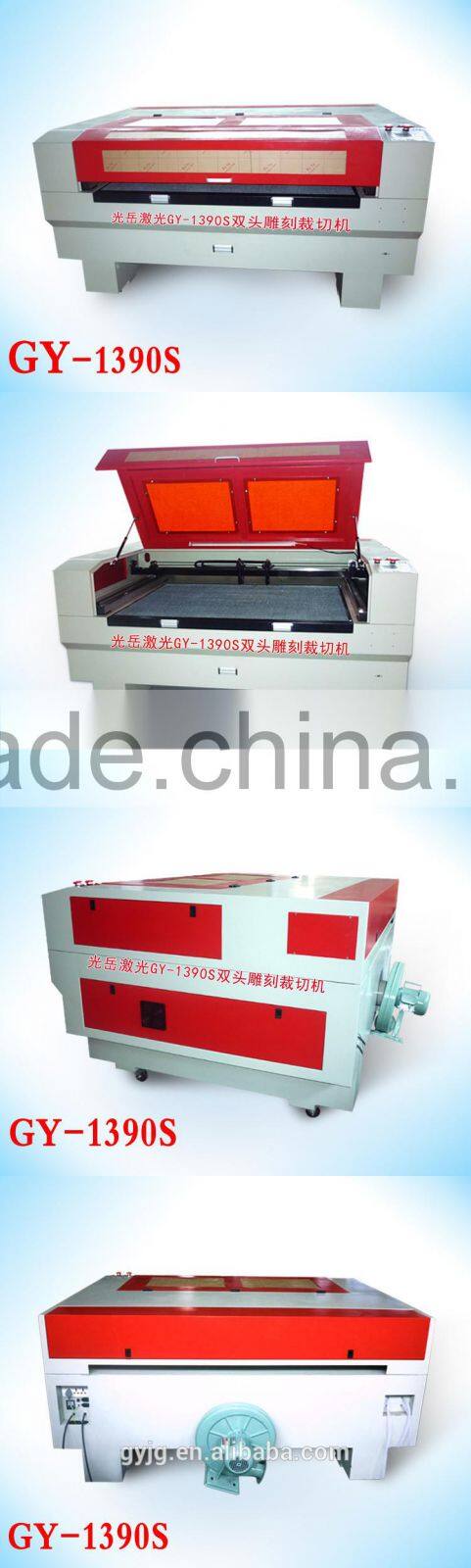

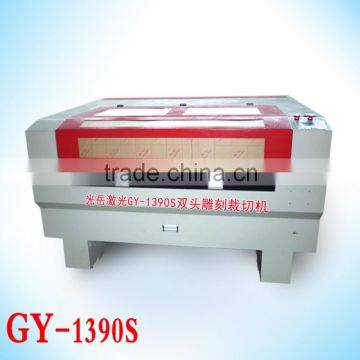

PICTURES FOR DETAILS
SPECIFICATION
| Model | GY 1390 3d laser crystal engraving machine |
| Working Table Size | 1300 *900mm |
| Laser Tube | Sealed CO2 glass Tube |

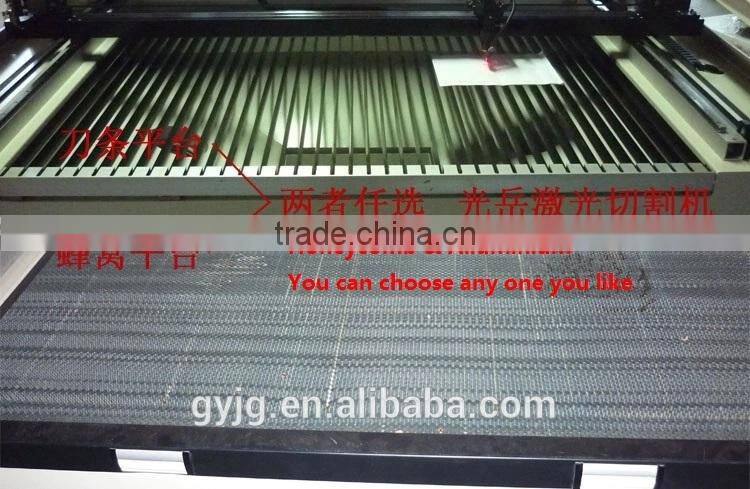

| Working Table | Honeycomb/Aliuminium (optional) |
| Laser Power | 80W/100W/130W/150W |
| Cutting Speed | 500 mm/s |
| Engraving Speed | 1500mm/s |
| Resolution | ≤4500DPI |
| Minimum Letter | English 1×1mm (Chinese Characters 2*2mm) |
| Support Fils | AI,BMP,HPGL,PLT,DST and DXF files which CorelDraw, Photoshop, AutoCAD can identify |
| Port | USB 2.0 Plug and play(offline) |
| Software | TAJIMA , CorelDraw, AutoCAD, Photoshop |
| Motor | Stepper |
| Power Voltage | AC 110-220V±10%,50-60Hz |
| Working Environment | 0-45℃(temperature) 5-95%(humidity) |
| Power consumption | 1000-1500W (Total) |
| Controlling software | DSP control system |
| Cutting thinkness | 0-25mm(upon material & laser power) |
| Position system | Red-light pointer |
| Cooling way | Water cooling and protection system |
| Slope engraving | Yes, slope can be designed discretionarily |
| Color separation | Separation of cutting up to 256 colors |
| Packing Size | 1940*1580*1150mm |
| Gross Weight | 450kg |
| Material | Engraving | Cutting | Material | Engraving | Cutting | |
| Natural wood | √ | √ | Paper | √ | √ | |
| Acrylic | √ | √ | Mylar | √ | √ | |
| Glass | √ | X | Pressboard | √ | √ | |
| Double color plate | √ | √ | Rubber | √ | √ | |
| Bamboo | √ | X | Plywood | √ | √ | |
| MDF | √ | √ | Fiberglass | √ | √ | |
| Cloth | √ | √ | Painted metals | √ | √ | |
| Leather | √ | √ | Plastic | √ | √ | |
| Marble | √ | X | Ceramic | √ | X | |
| Matte boards | √ | √ | Coated metals | √ | X | |
| Stone | √ | X | Other materials | √ | √ |
| Laser power (W) | Acrylic(mm) | Plywood(mm) | MDF(mm) |
| 40W | 3 | 2 | 1.5 |
| 60W | 8 | 5 | 3 |
| 80W | 12 | 8 | 6 |
| 100W | 15 | 12 | 9 |
| 130W | 20 | 15 | 12 |
| 150W | 25 | 20 | 15 |
This machine can be used in which industry?
This machine can make which materials?

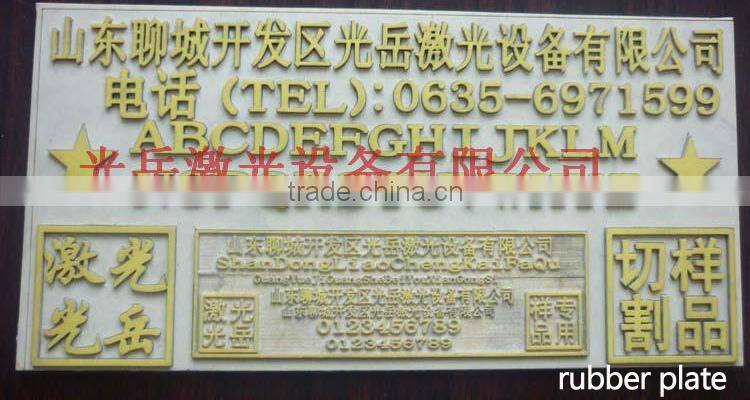

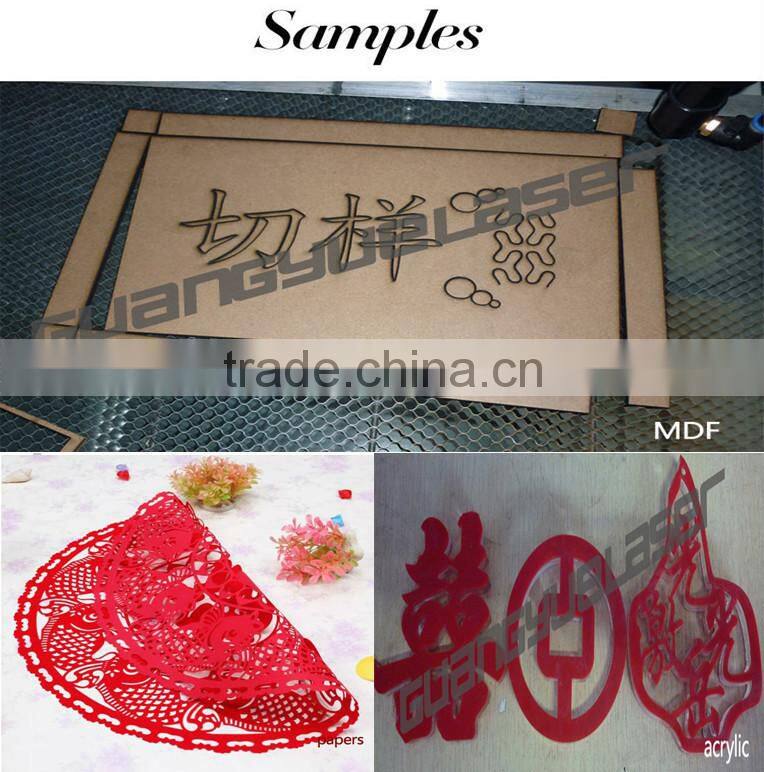

SOME OF SAMPLES SHOW
PACKAGING
COMPANY INFORMATION
SERVICE
1.This type of laser engraving machine is guaranteed for one year;consumable parts,as laser
tube and lens is for 3 months.Any other parts are provided as agent's price
2.Full English instructions and installation Videos
3.24hrs of phone,skype,Email& trademanager online service
4.All the machines has been adjusted before delivery
5.Professional technical team can support you the best technical guidance&meet your various requirments
6.OEM service availble as your orders
CONTACT INFORMATION
Our tenet "quality first, credit standing paramountcy, price in reason, delivery in time"
Welcome to cooperate and develop with us!
If any questions,pls just contact us at any time.
Ms Ina Wang
|
| Email: inalaser@f |
| Mob:0086-13646354381 |
Skype:inaguguwang |
QQ:1368238825 Trademanager: cn1512504927 |
