INST 10 pin DIN male and female circular cable connector
- shenzhen
- T/T Credit Card
You May Like
-
INST M16 4pin cable waterproof connector
-
INST 18mm 5PIN 5amp molding cable waterproof connector
-
INST 18mm 4PIN 5amp molding cable waterproof connector
-
INST 18mm 3PIN 5amp molding cable waterproof connector
-
INST 18mm 2PIN 5amp molding cable waterproof connector
-
INST 3 pins IP68 Male Plug Power waterproof connector
Product Details
| Place of Origin | Guangdong, China | Brand Name | Instantware | |
| Model Number | M22 | Type | Other | |
| Application | Power | Gender | Male |
Product Description
INST 10 pin DIN male and female circular cable connector
Product Specs
Description | Details | Code |
1. Connector Size | INST-DIN | M24 |
2. Current Rating | 7-20A | 7-20 |
3. Number of Contacts | 2,3,4,5,6,7,8,9,10,11,12,13,14,15, | 2-15 |
4. Connector Type | Without SR/SR | B |
5. Connector Gender | Male,Female | M,F |
6. Contact Gender | Male,Female | M,F |
7. Assembly Style | Field Installation /Molding(Solder) | M |
8. Mating Style | Screw | S |
9. Backs Shell | Straight/Right angle/T | ST/RA/T |
10. Waterproof Rating | IP67 | 7 |
Material: Core Material: PA6+30%GF UL94V0 Mold Material: Waterproof PVC Pin and Hole: Brass, Nickle Plated or Gold plated Sealing: Silicone Cable: Customize Other type cable for customize | ||
Property : Contact Resistance: <5mΩ Insulation Resistance: ≥500 MΩ at DC500V Breakdown Voltage: ≥2.5kV normal, 1.0kV water Temperature Rating: -45℃~+105℃ Protection Ration: IP67, 300mm water half an hour / IP68 10m Water 2 weeks Durability: 3K plug/Unplug Cycles
| ||
It is widely used in ·New energy ·LED ·Industrial control product ·Automotive ·Security product ·Power Supply ·Electric Vehicle ·Solar Energy ·IPC ·Various Mold It is high performance and competitive price. Welcome OEM/ODM.
| ||
Packing: 1. plastic bag 2. carton 3. Customize
Shipping:We could offer various shipping solutions for your choice, competitive express freight such as DHL/ FedEx/ UPS...

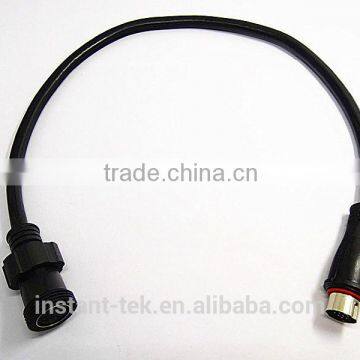

INST 10 pin DIN male and female circular cable connector
INST 10 pin DIN male and female circular cable connector
INST 10 pin DIN male and female circular cable connector
