63 amp industrial plug and socket
- Shenzhen
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | INST | |
| Model Number | M36 | Type | Adapter | |
| Application | Power | Gender | Other, male and female |
Product Description

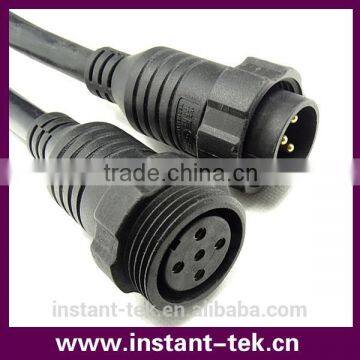

63 amp industrial plug and socket
Description | Details | Code |
1. Connector Size | INST-M58 | M58 |
2. Current Rating | 60-100A | 60-100 |
3. Number of Contacts | 2,3,4,5 | 2-5 |
4. Connector Type | Without SR/SR | B/S |
5. Connector Gender | Male,Female | M,F |
6. Contact Gender | Male,Female | M,F |
7. Assembly Style | Field Installation /Molding(Solder) | M |
8. Mating Style | Screw | S |
9. Backs hell | Straight | L |
10. Waterproof Rating | IP67 | 7 |
Material: Core Material: PA6+30%GF UL94V0 Mold Material: Waterproof PVC Pin and Hole: Brass, Nickle Plated or Gold plated Sealing: Silicone Cable: Customize Other type cable for customize | ||
Property : Contact Resistance: <5mΩ Insulation Resistance: ≥500 MΩ at DC500V Breakdown Voltage: ≥2.5kV normal, 1.0kV water Temperature Rating: -45°C~+105°C Protection Ration: IP67, 300mm water half an hour Durability: 3K plug/Unplug Cycles
| ||
It is widely used in ·New energy ·LED ·Industrial control product ·Automotive ·Security product ·Power Supply ·Electric Vehicle ·Solar Energy ·IPC ·Various Mold It is high performance and competitive price. Welcome OEM/ODM.
| ||
About us
Shenzhen Instantware Information Technology Co., Ltd. is a manufacturer of waterproof connectors with well-equipped testing equipment and strong technical force. With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in outdoors LED, IPC and other industries. Our products are widely recognized and trusted by users and can meet continuously developing economic and social needs. We welcome new and old customers from all walks of life to contact us for future business relationships and achieving mutual success!
