H07BN4-F rubber cable EPDM jacket flame retardant IEC 245

H05RN-F
Rated voltage 300/500V
Insulation material Rubber
Conductor material high class Copper
Cross sectional area 0.75mm2~6mm2
Cores :2core; 3core; 4core; 5core; 3+1core
Hot-Selling Products -------- rubber cable h07rn-f 2x1.5mm2 2x2.5mm2 2x4mm2 2x6mm2

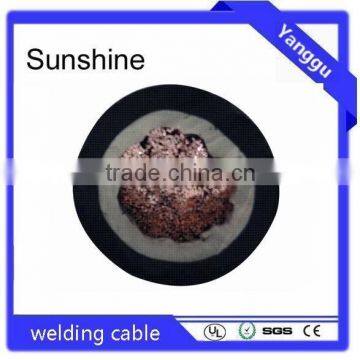

H07RN-F Rubber Cable
1.Description
Heavy duty rubber cable sheathed flexible power cable H07RN-F for using on mobile devices.
2.Standard
IEC60245-4
3.Characteristic
1.Voltage Rating:450/750V
2.Operating Temperature Rating: -25°C/60°C (MAX.+85°C)
3.Bending radius: 8times OD
4.Material Specification
Conductor: High class copper conductor
Insulation:Rubber compound
Sheath:Rubber compound
Sheath Colour:Black
5 Identification
Two Cores -Brown and Blue
Three Cores -Brown,Blue and Green/Yellow
Four Cores -Brown,Grey, Black and Green/Yellow
Five Cores -Brown, Blue, Grey, Black and Green/Yellow
Six Cores –Black with white numerals,Green/Yellow
Hot-Selling Products -------- rubber cable h07rn-f 2x1.5mm2 2x2.5mm2 2x4mm2 2x6mm2

1 Finely stranded copper conductor according to Din VDE 0282
2 Seperating plyster film
3 Neoprene core insulation type EM5
4 Self-extinguishing and flame propagation resistance according to Din VDE 0482 part 265-2-1/EN 50265-2-1.
5 Operating temperature from -25°C to +85°C

(1).What’s Yangguang cable main charactors ?

We can supply all of the cables including normally power cable , computer cable , control cable , equipment cable , etc. , because we own self factories and technology , can qualify all different customers’ requirement .

(2). What’s kind of standard do Yangguang cable take by ?

In China native market , we obey GB standard and all the export model we firstly must obey the IEC standard .Also we can supply the American ASTM standard , Germany VDE standard , French NFC standard , English BS standard , Australian and New Zealand AS/NZS standard.

(3)What’s the qualify system do Yangguang cable qualify ?

We firstly obey ISO9001 certificaten , and computer wire , electric wire we obey UL certificaten ,also some cable we obey the Rohs and CE certificate .

(4)When can I get the price?

We have strictly regulation , we must deal with customer’s quotation within 24 hours , if you have urgent requirement please call me and I will push the cost calculation accelerate forward.

(5).If I can get Yangguang cable authorization to join the international bidding ?

Yes, we can authorize the formula documents to help customers join in local bidding .

(6).What about the lead time for mass production?

Honestly, it depends on the order quantity and the season you place the order.The best record we keep is delivering 10 kilometers cable within a week. Generally speaking, we suggest that you start inquiry two months before the date you would like to get the products at your country.

(7). Anymore question please contact me email or any way directly .
