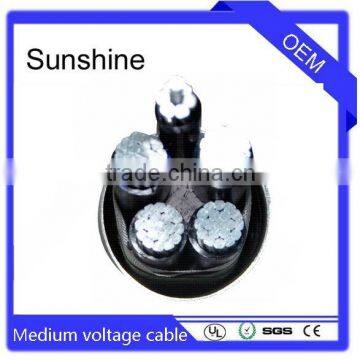

1.5mm2-800mm2 Section Aluminum Wire Armoured Aluminum Core HIGH VOLTAGE CABLE

1 Application:

It is used to transmit and distribute power in power transmission and distribution system of 35kV or lower. It is
generally applied to the fields including power, construction, mines, metallurgy, petrochemical industry and
communication in complete replace of oil immersed paper insulated power cable and in partial replace of
PVC insulated power cable. Power cables for power networks, underground, outdoors and in cable ducting

2 Construction

Standards: BS6622, BS EN/IEC 60228,IEC60502.2

Conductor: Class 2 stranded plain copper conductor to BS EN 60228:2005 (previously BS6360)

Conductor screen: Semi-conducting material

Insulation: XLPE (Cross-Linked Polyethylene) Type GP8 to BS7655

Insulation Screen: Semi-conducting material

Metallic Screen: Individual and overall copper tape screen to BS6622

Filler: PET (Polyethylene Terephthalate) fibres

Separator: Binding tape

Bedding: PVC (Polyvinyl Chloride) Type TM1 to BS7655

Armoring:

Single Core: Aluminum Wire Armored (AWA)

MultiCore: Steel Wire Armored (SWA)

Sheath: PVC (Polyvinyl Chloride) Type TM1 to BS7655

Color: Red or Black

3 Using features:

1.Rated voltage: Uo/U:3.6/6kV, 6/10kV(11kV), 12/20kV(24kV), 19/33kV, 26/35kV(35kV).

2. No. of core: Single core or three cores.

3. The highest allowed operating temperature of conductor for long-term working is 90oC.
In short-circuit (Max. long-term is no more than 5 seconds). The highest temperature for
conductor is no more than 250℃.

4. D.C. resistance of the conductor complies with the stipulations of 3.6/6kV, 6/10kV(11kV),
12/20kV(24kV), 19/33kV, 26/35kV(35kV).

5. The environment temperature should be no lower than 0oC when lay. Otherwise it
should be preheated.

6. The cable is laid without horizontal drop limit.

7. Working Frequency Voltage Test: 3.5Uo/5min without puncture.

8. Partial Discharge Test: The discharge volume should be no more than 10pC under
1.73Uo for the cable.

9. Minimum Bending Radius

Single core - Fixed: 15 x overall diameter

3 core - Fixed: 12 x overall diameter

(Single core 12 x overall diameter and 3 core 10 x overall diameter where bands are
positioned adjacent to joint or terminations provided that the bending is carefully
controlled by the use of a former)

Note:

The single core armored cables are used for D.C. system only. If used for A.C. system,
the magnetic isolation should be applied on the steel armor wires of non-magnetical
materials should be used.
