strain clamps made by WEICHUANG/ electric power fitting

Specifications

1. Our Company

Our company is a professional manufacturer was established in 1992 who produce and export overhead line fitting, cable fitting for ADSS, OPGW and ACSR, has attained ISO9001: 2000. We have a Export Department , which specialize in the export of various products made by ourselves including suspension line fitting, tension line fitting and power accessories and so on. During the nearly 20 years, we have built good business relationships with customers abroad. 80% of our products have been widely used in Korea, Southeast Asia, Iraq, Zambia, the Middle East, Saudi Arabia, Australia and other regions.

2. Advantage

(1) Special material for superior quality and longevity.

(2) Phosphating surface finish for environmental protection, rust protection.

(3) We are the professional manufactures of the products have been gotten an honor in domestic and foreign. We will try our best to meet your need.

(4) Different kinds of electic power fittings are produced and sold with high quality and competitive.

(5) All the products are national standard, and also can be made with your design.

(6)  Attractive appearance, easy installation, reasonable price.

3.  Strain clamp are used to fix conductor and ground  wire through insulators or link fitting to tower arms or substation structures. In according to the clamp construction and mounting way. The clamps include two types as compression type and bolt type. The compression type include hydraulic and explosive type.

The meaning of letter Arabic figure in the catalog are shown as follow.

N-strain clamp L-bolt type D-inverse mounting Y-hydraulic type B-explosive type

The figures mean the of assembled leads which apply to each other numbers

The radius of curvatrure is more than eight fold diameter of the suitable conductor

As the bolt type strain clamp is used to AAC and ACSR, the conductor may to wound by aluminium tapes or preformed armour rods for protecting these taps or rods are included in the diameter of suitable conductor.

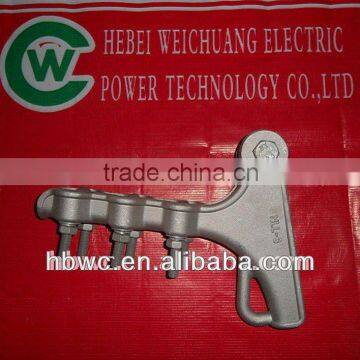

Name: NLD-2 strain clamps

Types: NLD-1 NLD-2 NLD-3 NLD-4

Material: the clamp body and keepers are malleable iron, the closed-pin is stainless steel work, the other parts are steel.

Rated failure load: 45KN

4. Package

We will be responsible for packing the stores suitable for transit by sea/ rail/ road so as to ensure their being free from loss or damage on arrival at destination.

Thanks to pay attention to our products! We will be appreciate to hear of you for any requst.

If you need any information, please do not hesitate to contact us. I will help you with my best effort, expect for cooperation.
