Trusting Different Types of Electrical Cables
- Qingdao
- T/T PayPal
You May Like
Product Details
| Place of Origin | Shandong, China | Brand Name | yangguyangguang | |
| Model Number | PVC, YJV, YJLV etc | Insulation Material | Other, PVC, XLPE | |
| Type | Low Voltage | Application | Other, Industrial, construction industrial | |
| Conductor Material | Other, Copper, Copper | Jacket | PVC |
Product Description

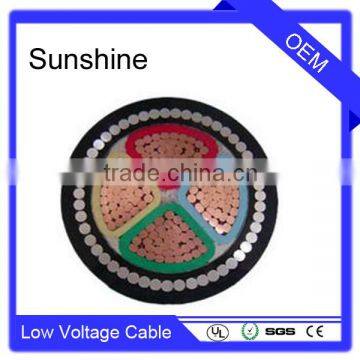

Trusting different types of electrical cables
| Core Type | Description | Application | |
| Cu | Al | ||
| YJV | YJLV | XLPE insulated and PVC sheathed power cable | Can be used indoor/outdoor tunnel, reinforced concretepipelines and loose soil. |
| ZR-YJV | ZR-YJLV | Can not bear outer mechanical borce, a certain traction force is ok. | |
| YJV22 | YJLV22 | XLPE insulated, steel tape armored and PVC sheathed power cable | Can be used outdoor and laid underground |
| ZR-YJV22 | ZR-YJLV22 | Can bear out mechanical force,not bear a large tractional force. | |
| YJV32 | YJLV32 | XLPE insulated,thin steel wire armored and PVC sheathed power cable | Can be used in high drop area and mines; |
| ZR-YJV32 | ZR-YJLV32 | Can bear outer mechnical force and fairly large tractional force; | |
| YJV42 | YJV42 | XLPE insulated, thick steel wire armored and PVC sheathed power cable | Can be used in vertical shaft,sed floor and high dorp area; |
| ZR-YJV42 | ZR-YJLV42 | Can bear outer mechnical force and very large tractional force. | |
Features:
1. The long-term operating temperature of PVC insulated cable is 70℃, XLPE 90℃.
2. The max temperature of the conductor of cable should less then 160 °C when short circuit. (less then 5 second).
3. The cable is not limited by drop in level when being laid, and the environment temperature shall not be lower than 0°C.
4. Perfect chemical stability, resistant against acids, alkalis, grease and organic solvents, and flame resistant.
5. Light weight, perfect bending properties, installed and maintained easily and conveniently.
6. Rated voltage: 0.6/1kV, 3.6/6kV.
7. Number of cores: One, two, three, four, five.
8.Cable laying, bend radius≥10 times cable O. D.
| 1, Wire Drawing | 2, Conductor Stranding | 3,Wrapping |
| ||
| 4,Spurt Code | 5, Molding | 6, Extrusion |
| ||
| 7, Armour | 8, Testing | 9, Packing&Delivery |
| ||
| Advantage | Delivery time( Working Day) | |||||
| 2-3 | 3-7 | 7-10 | 10-20 | 20-30 | >30 | |
| Airmail Post | 10% | 50% | 35% | 5% | ||
| EMS | 5% | 50% | 30% | 15% | ||
| DHL | 5% | 80% | 15% | |||
| Fedex | 5% | 80% | 15% | |||
| UPS | 80% | 20% | ||||
| UPS Expedited | 30% | 70% | ||||
Sunshine cable is one of the most famous and reputation cable manufacturer in China. We have more than 500 skillful employees to make products with high quality. Our products are seld to all over the world including Europe, Australia, the US, Canada, Brazil and other areas.
Our company specializes in producing conductors, utp cables, medium/high-pressure cables, pvc/xlpe cables, YC cable, BV cable, aerial insulation cable and coexial cable. Besides, we offer the most efficient and effective assembly services.
If you are interested in any of our products, feel free to contact us. We are looking forward to establishing successful and long-term business relationships with your esteemed company.
- What kind of cable do you produce?
We specialize in producing various conductors, pvc/xlpe cable, YC calbe, BV cable, areial cable, coexial cable and so on.
- What is your delivery time?
Usually, our delivery time wihtin 7days after received deposit.
- What is your payment term?
Usually, we accept T/T. Other payment, we can negotiate with customers.
- Can you customize cables basing on customer's sample?
Yes, of course
- What is your minimum order quantity?
1 box for EXW as your samples,
- Can I get some discount if we place a bulk order?
Yes, of course you can, we used to give some discount for our long time cooperation.
