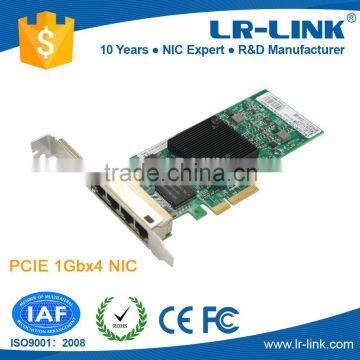

LREC9714HT Intel I350AM4 Chipset Gigabit RJ45 4 Port PCI Express Lan Card For Server

LREC9714HT Intel I350AM4 Chipset Gigabit RJ45 4 Port PCI Express Lan Card For Server

Quad-port Gigabit Ethernet 4 port lan card designed with performance enhancing features and new power management technologies

Key Features:

*  Halogen-free quad-port Gigabit Ethernet adapters with copper interface options

*  Innovative power management features including Energy Efficient Ethernet (EEE) and DMA Coalescing for increased efficiency and reduced power consumption

*  Flexible I/O virtualization for port partitioning and quality of service (QoS) of up to 32 virtual ports

*  Scalable iSCSI performance delivering cost-effective SAN connectivity

*  High-performing bridgeless design supporting PCI Express* Gen 2.1 5GT/s

*  Reliable and proven Gigabit Ethernet technology from Intel Corporation

Nice Product Pictures Showing:

General Features:

Intel® Ethernet Controller I350

With PCI Express* V2.1 (5 GT/s) Support

Low-Profile and Standard height full

Ethernet Features:

IEEE* 802.3 auto-negotiation

1Gb/s Ethernet IEEE 802.3, 802.3u, 802.3ab PHY specifications Compliant

Integrated PHY for 10/100/1000 Mb/s for multispeed, full, and half-duplex

IEEE 802.3x and 802.3z compliant flow control support with software-controllable Rx thresholds and Tx pause frames

Automatic cross-over detection function (MDI/MDI-X)

IEEE 1588 protocol and 802.1AS implementation

I/O Virtualization Features:

Eight transmit (Tx) and receive (Rx) queue pairs per port

32 Virtual Functions on Quad-port or 16 Virtual Functions on Dual-port

Support for PCI-SIG SR-IOV specification

Rx/Tx Round-Robin Scheduling

Traffic Isolation and Traffic Steering

VM to VM Packet forwarding (Packet Loopback)

MAC and VLAN anti-spoofing

IEEE 802.1q Virtual Local Area Network (VLAN) support with VLAN tag insertion, stripping and packet filtering for up to 4096 VLAN tags

Stateless Offloads/Performance Features:

TCP/UDP, IPv4 checksum offloads (Rx/ Tx/Large-send); Extended Tx descriptors for more offload capabilities

IPv6 support for IP/TCP and IP/UDP receive checksum offload

Legacy and Message Signal Interrupt (MSI) Modes

Message Signal Interrupt Extension (MSI-X)

Intelligent interrupt generation

Receive Side Scaling (RSS) for Windows environment

Header/packet data split in receive

PCIe v2.1 TLP Processing Hint Requester

Descriptor ring management hardware for Transmit and Receive

Remote Boot Options:

Preboot eXecution Environment (PXE) flash interface support

Intel® Ethernet iSCSI Remote Boot for Windows, Linux, and VMware

Intel Boot Agent software:

Linux boot via PXE or BOOTP, Windows* Deployment Services, or UEFI

Adapter Product Features:

Plug and play specification support

Intel® I/O Acceleration Technology (Intel® I/OAT)

Ships with full-height bracket installed; low-profile bracket included in package

The 4 Port PCIe Lan Card Technical Features:

Ordering Information:

PS: The above details is just for reference,if there is any change,no inform will have.
