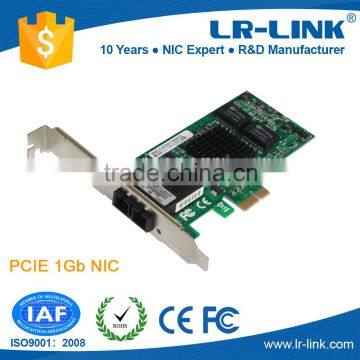

LREC9210PF Gigabit PCI Express optical Fiber Ethernet Card(1x9 module SC Interface)

FOB Price

Negotiable / Pint

10 Pints(Min.Order)

Port shenzhen or hongkong
Payment TermsCredit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Products Status	Stock	Application	Desktop
Type	Wired	Kind	Internal
Transmission Rate	1000Mbps	Interface Type	PCI Express
Certification	CE,FCC,ROHS	Brand Name	LR-LINK
Model Number	LREC9210PF	Place of Origin	Guangdong, China

Product Description

LREC9210PF Gigabit PCI Express optical Fiber Ethernet Card(1x9 module SC Interface)

1.PCI Express Gigabit Optical Fiber adapter

2.SC Port,1000Base-LX Optical adapter

3.1x9 module fiber adapter

4.desktop internal ethernet nic card
5.Network Interface Card

Descriptions:

LREC9210PF is a Fiber Gigabit Ethernet to PCI Express bus adapter that fully complies with all IEEE 802.3z and 1000Base-SX/LX standards. It provides up to 2000Mbps full-duplex bandwidth capacity to support high-end servers. In addition, with advanced functions like VLAN filtering packet processing, the adapter provides added performance, flexible configuration and secure networking for users in a standard-based environment. Two LED indicators (LINK/ACT and FDX) on the bracket will help to oversee the board link, activities and full-duplex status.

Key Features:

High bandwidth 1000Mbps Network Speed
Supports Full-Duplex Mode
Supports IEEE 802.3x Full-Duplex Flow Control
Supports PCI express bus
Supports Jumbo Frame up to 9014 Bytes
Supports High Level VLAN Filtering Function
Supports 802.3ad Link Aggregation (LACP)
Supports on-board verification of IP headers and TCP / UDP checksums for received data
Supports on-board screening of VLAN tagged Ethernet frames
Supports ASF
RoHS Compliance

Technical Specification:

Standards:
IEEE 802.3z Gigabit Ethernet 1000Base-SX/LX
IEEE 802.3x Full-Duplex Flow Control
IEEE 802.1Q VLANs
IEEE 802.1p Quality of Service

Connector: SC

Fiber Optic Cable :
multi-mode: 62.5/125, 50/125μm
single-mode:9/125μm

Data Transfer Mode/Speed:
Full duplex with NWay flow control
1000Mbps speed

Diagnostics LED on Bracket:
LINK/ACT
FDX

Bus Slot: 32 bits PCI 2.3 Compliant

Power Requirement: Max. 10W, +5VDC@2A
Ambient Temperature: 0°C ~ 50°C
Humidity: 5%~90%

Weight: 0.07Kg
Emission:Complies with EMI Standard, FCC Class B, CE Mark

Software Support:
Windows 98,Windows 2000,Windows 2003,Windows XP,Windows NT4.0,Vista,Novell Netware 2.4,Linux,UnixWare 7.0

PS:
