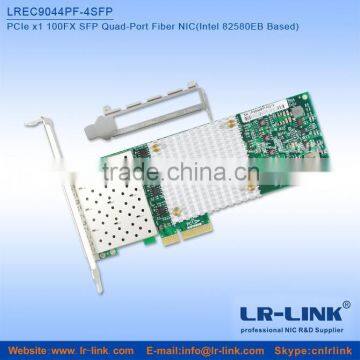

LREC9044PF-4SFP PCIe x1 100FX 4 SFP Port Fiber network card (Intel 82580 Based) Unique

LREC9044PF-4SFP PCIe x1 100FX Quad SFP Port Fiber NIC (Intel 82580 Based)

Based on the new Intel 82580 Gigabit Ethernet Controller,

LREC9044PF-4SFP Server Adapter is LR-LINK’s fourth generation of PCIe GbE adapter. This adapter provides a smaller footprint and lower power dissipation. In addition, the LREC9044PF-4SFP Adapter offers advanced features, including support for multi-core processors and server virtualization, as well as a scalable PCI Express Gen2.0 interface.

Halogen-Free1

Designed for Multi-Core Processors

This adapter provides high-performing, Gigabit connectivity in a multi-core platform as well as in a virtualized environment. In a multi-core platform, the adapter supports technologies such as MSI-X, and Low Latency Interrupts that help accelerate data across the platform, improving application response times.

Support for iSCSI

LR-LINK LREC9044PF-4SFP server adapters with native iSCSI initiators built into Microsoft® Windows®, Linux®, and VMware® ESX platforms provide a simple, dependable, cost-effective way to connect to LANs and iSCSI SANs. These native initiators are broadly tested using multiple generations of operating systems, storage systems, and OS tools to help ensure reliability and ease of use. Standardizing on Intel Ethernet server adapters for iSCSI allows administrators to use a single initiator, TCP/IP stack, and set of management tools and IT policies. In addition, the LR-LINK LREC9044PF-4SFP server adapter includes a number of hardware features designed to accelerate iSCSI traffic and enhance data processing. For example, TCP segmentation offload, Receive side coalescing (RSC), and checksum offload capabilities help reduce processor utilization, increase throughput, and deliver exceptional iSCSI performance. The adapters are designed to flexibly scale workloads across multi-core processor–based systems. Finally, using native OS initiators, an LR-LINK LREC9044PF-4SFP Server Adapter enables support for the CRC-32 digest instruction set included in the Intel Xeon® processor 5500 series, which improves transmission reliablity and thus delivers an enterprise class iSCSI solution for the IT customer.

Optimized for Virtualization

The LR-LINK LREC9044PF-4SFP Server Adapter showcases a suite of hardware assists that improves overall system performance by lowering the I/O overhead in a virtualized environment. This optimizes CPU usage, reduces system latency, and improves I/O throughput. These features include:

• Virtual Machine Device Queues (VMDq)

• Intel I/O Acceleration Technology (Intel I/OAT)

Virtual Machine Device queues (VMDq)

VMDq reduces I/O overhead on the hypervisor in a virtualized server by performing data sorting and coalescing in the network silicon. VMDq technology makes use of multiple queues in the network controller. As data packets enter the network adapter, they are sorted, and packets traveling to the same destination (or virtual machine) get grouped together in a single queue. The packets are then sent to the hypervisor, which directs them to their respective virtual machines. Relieving the hypervisor of packet filtering and sorting improves overall CPU usage and throughput levels.

Reliable Performance

The adapter includes a number of advanced features that enable it to provide industry-leading quad-port 1GbE performance and reliability.

PCIe* v2.0 (5GT/s)

PCIe v2.0(5GT/s) support enables customers to take full advantage of the 1GbE by providing a maximum of 2.0 Gbps bidirectional throughput per port on a single quad-port card.

For today’s demanding virtualized data center environments, the new LR-LINK LREC9044PF-4SFP Adapter delivers ultimate flexibility and scalability.

General Features

Intel® 82580 Gigabit Ethernet Controller with

PCI Express* V2.0 (5 GT/s) Support

Low-Profile and Standard height full

remote boot support

Load balancing on multiple CPUs

Compatible with x4, x8, and x16 standard and low-profile PCI Express* slots

Multi-port design

Support for most network operating systems (NOS)

Intel® PROSet Utility for Windows* Device Manager

I/O Virtualization Features

MSI-X support

Low Latency Interrupts

Header Splits and Replication in Receive

Multiple Queues: 8 queues per port

Tx/Rx IP, SCTP, TCP, and UDP checksum offloading (IPv4, IPv6) capabilities

Tx TCP segmentation offload (IPv4, IPv6)

Receive and Transmit Side Scaling for Windows environment and Scalable I/O for Linux* environments (IPv4, IPv6, TCP/UDP)

Virtualization Features

VMDq

Advanced Packet Filtering

VLAN support with VLAN tag insertion, stripping and packet filtering for up to 4096 VLAN tags

Manageability Features

Advanced filtering capabilities

Preboot eXecution Environment (PXE) Support

Simple Network Management Protocol (SNMP) and

Remote Network Monitoring (RMON) Statistic Counters

Wake-on-LAN support

iSCSI Boot

Watchdog Timer

IEEE 1588 precision time control protocol

Advanced Software Feature

Adapter fault tolerance (AFT)

Switch fault tolerance (SFT)

Adaptive load balancing (ALB)

Teaming support

IEEE 802.3ad (link aggregation control protocol)

Test switch configuration: Tested with major switch original equipment manufacturers (OEMs)

PCIe Hot Plug*/Active periphera; component interconnect (PCI)

IEEE 802.1Q* VLANs

IEEE 1588 Precision Time Control Protocol

IEEE 802.3 2005* flow control support

Tx/Rx IP,TCP& UDP checksum offloading(IPv4, IPv6) capabilities control protocol(TCP),user datagram protocol

(UDP), Internet protocol (IP)

IEEE 802.1p*

TCP segmentation large send offload

MSI-X supports Multiple Independent Queues

Interrupt moderation

IPv6 offloading — Checksum and segmentation capability extendedto new standard packet type

Adapter Product Features

Intel® PROSet Utility

Plug and play specification support

Intel® I/O Acceleration Technology (Intel® I/OAT)

Ships with full-height bracket installed; low-profile bracket included in package

Technical Features

Data rate supported per port: 100Mbps

Bus type: PCI Express* 2.1 (5 GT/s))

Bus width: 1-lane PCI Express; operable in x1,x4, x8 and x16 slots

Interrupt levels: INTA, INTB, INTC, INTD, MSI, MSI-X

Controller-processor: Intel 82580 Gigabit Ethernet Controller

Power consumption (typical): 6.0 W

Storage temperature: -40 °C to 70 °C (-40 °F to 158 °F)

Operating temperature :0 °C to 55 °C (32 °F to 131 °F)

Storage humidity: 90% non-condensing relative humidity at 35 °C

Network Operating Systems (NOS) Software Support

Windows* Vista* SP2

Windows Server* 2003 SP2

Windows* Unified Storage Solution 2003

Windows Server 2008 SP2

Windows Server 2008 R2

Windows 7

Linux* Stable Kernel version 2.6

Linux RHEL 4.8.

Linux RHEL 5.4

Linux SLES 10 SP3

Linux SLES 11

FreeBSD* 8.0

FreeBSD*7.2

UEFI* 2.1

VMware ESX* 4.x

PS: The above details is just for reference,if there is any change,no prior notice .
