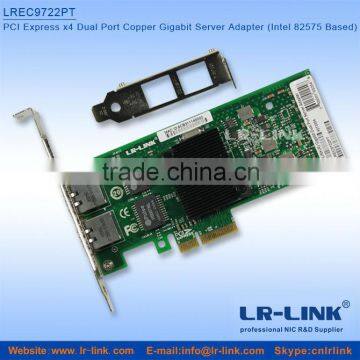

LR-LINK LREC9722PT Intel 82575 PCI-Ex4 10/100/1000Mbps Dual Port Server network Adapter NIC

LREC9722PT  Intel 82575 PCI-Ex4 1000Mbps Dual Port Server Network Adapter NIC

General

Product codes :LREC9722PT intel  82575 Gigabit Dual Port Server Adapter

  Connectors :RJ45

IEEE standards/network topology :10BASE-T, 100BASE-T,1000BASE-T

Cabling: Category-5, unshielded twisted pair (UTP)

Adapter Product Features

Intel PROSet Utility: For easy configuration and management

Plug and play specification support :Standard

Intel I/OAT1  including multiple queues & receive-side scaling

Ships with full-height bracket

installed, low-profile bracket added in package

Receive Side Scaling

Direct Cache Access (DCA) :The I/O device activates a pre-fetch engine in the CPU that loads the data into the CPU cache ahead of time, before use, eliminating cache misses and reducing CPU load

Network Operating Systems (NOS) Software Support

Windows*Vista* SP1

Windows Server* 2003 SP2

Windows* Unified Storage Solution 2003

Windows Server* 2008

Linux* Stable Kernel version 2.6

Linux* RHEL 4

Linux* RHEL 5

Linux* SLES 9
Linux* SLES 10

FreeBSD* 7.0

UEFI* 1.1

VMware ESX* 3.x

Advanced Software Features

•Adapter fault tolerance (AFT)

•Switch fault tolerance (SFT)

• Adaptive load balancing (ALB)

• Teaming support

• IEEE 802.3ad (link aggregation control protocol)
• Test switch configuration

•PCIe Hot Plug*/Active peripheral component interconnect (PCI)

•IEEE 802.1Q* VLANs

•IEEE 1588 Precision Time Control Protocol

•IEEE 802.3 2005* flow control support

•Tx/Rx IP, TCP, and UDP checksum offloading (IPv4, IPv6) capabilities (Transmission control protocol (TCP), user datagram protocol (UDP), Internet protocol (IP))

•IEEE 802.1p*

• TCP segmentation/large send offload

•MSI-X supports Multiple Independent Queues

• Interrupt moderation

•IPv6 offloading:Checksum and segmentation capability extended to new standard packet type

Technical Features

Data rate supported per port:10/100/1000

Bus type PCI Express: 2.0 (2.5 GT/s)

Bus width:4-lane PCI Express, operable in x4, x8 and x16 slots

Interrupt levels: INTA, MSI, MSI-X

Controller-processor: Intel 82576

Typical power consumption             2.2W

Operating temperature                      0° C to 55° C (32° F to 131° F)

Storage temperature                         -40° C to 70° C(-40° F to 158° F)

Storage humidity                               90% non-condensing relative humidity at 35° C

LED indicators                                   LINK (solid) and ACTIVITY (blinking)

Physical  Dimensions

Length                                                16.74 cm (6.59 in)

Width                                                  6.81 cm (2.681 in)

Full-height end bracket                  12.00 cm (4.725 in)

Low-profile end bracket                  7.92 cm (3.12 in)

Test switch configuration               Tested with major switch original equipment manufac- turers (OEMs)
