Home > Products > Flash Dryer > Revolving Flash Dryer

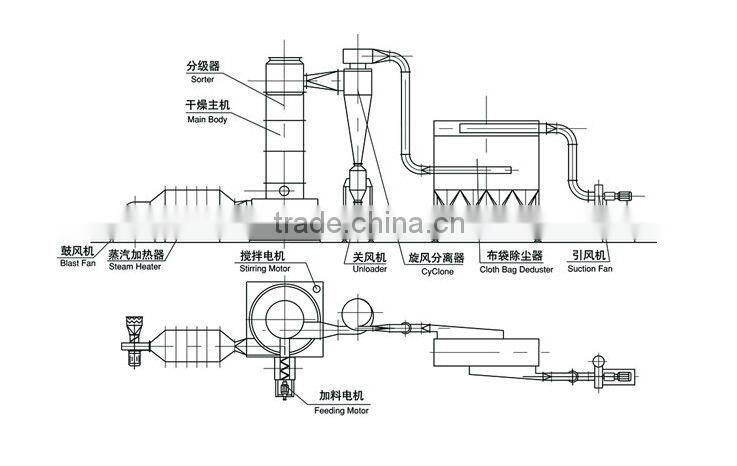

Revolving Flash Dryer
US$ 8,000 - 12,000
/ Set
1 Set(Min. Order)
- SHANGHAI
- T/T Money Gram
You May Like
Product Details
| Condition | New | Type | Flash Drying Equipment | |
| Place of Origin | Jiangsu, China | Brand Name | SHEN YU | |
| Model Number | XSG-12 | Power(W) | 22000 | |
| Dimension(L*W*H) | 1300mm*1300mm*5000mm | Certification | ISO 9001:2000 | |
| Warranty | three years | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
XSG rotating flash dryer is used for drying materials such as paste, cake shape material, powder. granule,etc.Description:
XSG series rotating flash dryer is a kind of new equipment, which is developed basing on advance technology abroard. It eliminates environmental pollution and the entire machine performance can reach the international 1990's advance level. Drying, grinding and sieve are completed in one equipment at a time.
Features:
1. It combines the rotational flow technology with smashing and classification technology.
2. Compact structure, resonable design and high production efficiency.
3. Feeding device can be chose according to your needs, and charging process is continuous and stable.
4. With air pressure equipment and shaft equipment, it can longer the life of machine.
Application:
1.Organic Material:
PE, rhoda mine,101Gel, cadmium laureate, benzoic acid, germicide, sodium oxalate, cellulose, aminophenazone, 4-PABA, etc.
2.Inorganic Material:
acetate fiber, rock quartz, mud conditioner,borax, calcium, carbone, hydroxide, copper sulfate ferric oxide, barium carbonate, antimony trioxide, all kind of metallic hydroxide, all kinds of heavy metallic salt, synthetic,etc.
3.Ceramic Industry:
kaolin,silica, alumina clay,etc.
4.Dyestuff Industry:
anthraquinone, black ferric oxide, indigo blue pigment, butyric acid, titanium hydroxide,zinc sulfide.
5.Food Industry:
starch, soybean protein,GLU, soya protein, agglomerative starch, wheat starch,etc.
Technical Parameter:
| Model | XSG-2 | XSG-4 | XSG-6 | XSG-8 | XSG-10 | XSG-12 | XSG-16 | XSG-20 |
| ID of main machine,mm | 200 | 400 | 600 | 800 | 1000 | 1200 | 1600 | 2000 |
| Air amount,M3/h | 350-500 | 1150-2000 | 2450-4500 | 4450-7550 | 7000-12500 | 10000-20000 | 18000-36000 | 28200-56500 |
| Evaporated moisture,kg/h | 12-17 | 40-70 | 80-150 | 150-250 | 230-4250 | 300-600 | 600-1000 | 1000-1500 |
| Max equipped capacity,kw | 10 | 20 | 40 | 65 | 85 | 105 | 150 | 230 |
| Max,hight,m | 4.0 | 4.8 | 5.8 | 6.5 | 7.1 | 7.8 | 8.8 | 10.1 |
| Occupied area ,m 2 | 15 | 20 | 28 | 35 | 40 | 52 | 80 | 150 |
Product Details:
