High Sensitivity Waterproof GPS Antenna for Marine Navigation GPS Timing Clock Antenna Mushroom Head Antenna Quality Choice

High sensitivity Waterproof GPS antenna for marine navigation GPS timing clock antenna mushroom head antenna
Condition:100% Brand New and High Quality!!!

Specification:
-Basic Color:White
-Cable Length:10M(Optional 5 meter, Please Browse our store.)

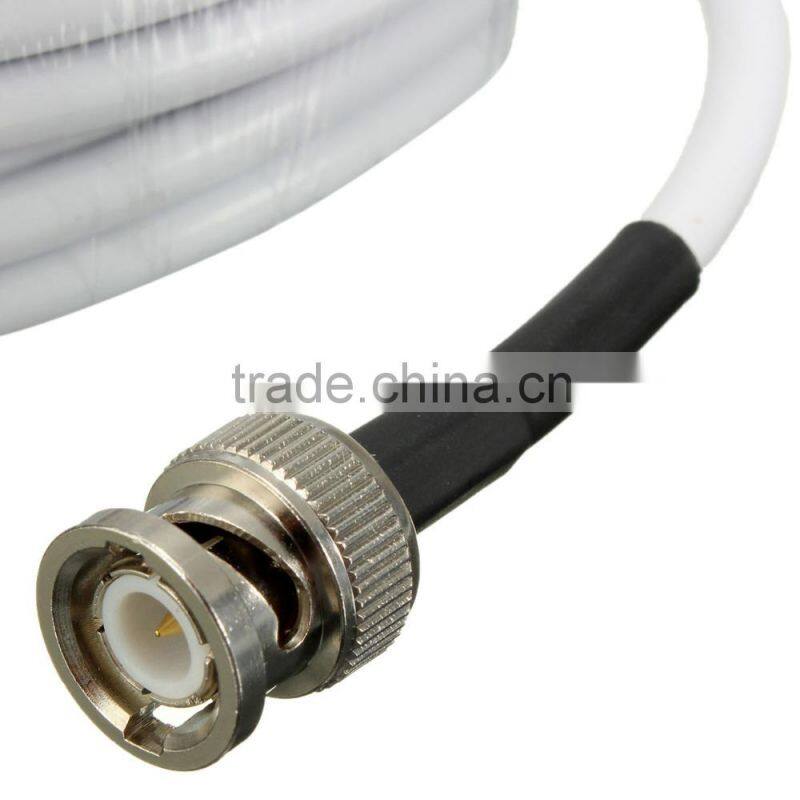

-Connector:BNC plug default
-Cable:SYV-50-3
-Center frequency:1575mhz+/-2 MHZ
-V. S. W. R:<1.5
-Band width:CF±5MHz
-Impendence:50 ohm
-Gain:≥28DB
-Polarization:RHCP
-Lna gain(without cable):42±2dB
-Filter Insertion Loss:<3dB
-Noise figure: <1.3
-Current Consumption: 18~35mA
-DC Voltage: 3~5V DC

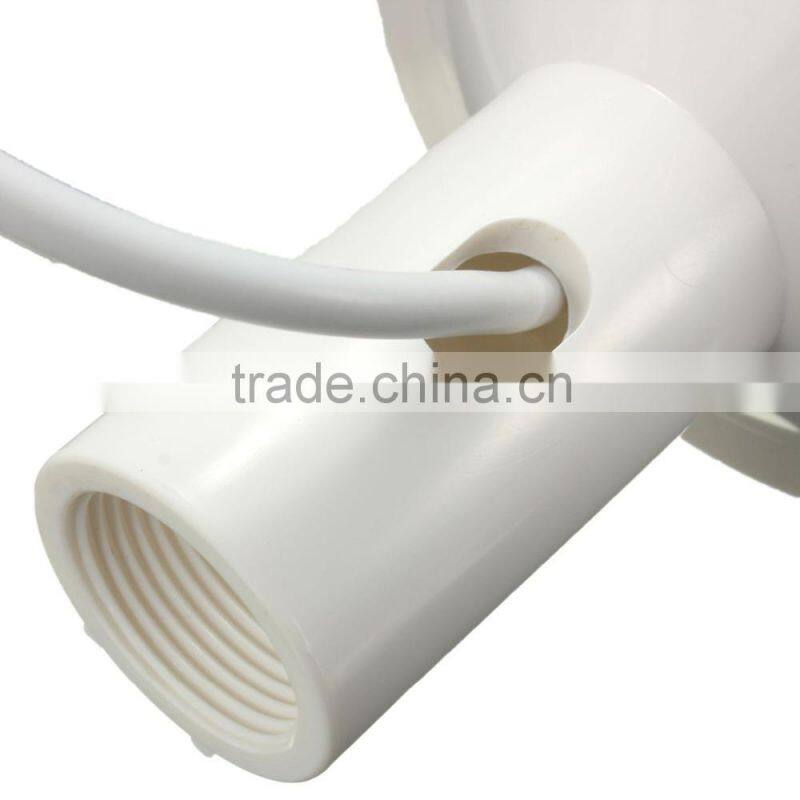

-Mounting base:screw thread connection ( G3/4 )
-Working temp:-40~+60
-Storage temp:-50~+85
-Vibration sine sweep:1g(0-p)10~50~10hz each axis
-Humidity:95%~100%rh
-Weatherproof:100%
-Quantity:1 pc


-Durable

-High quality Material
-Good performance

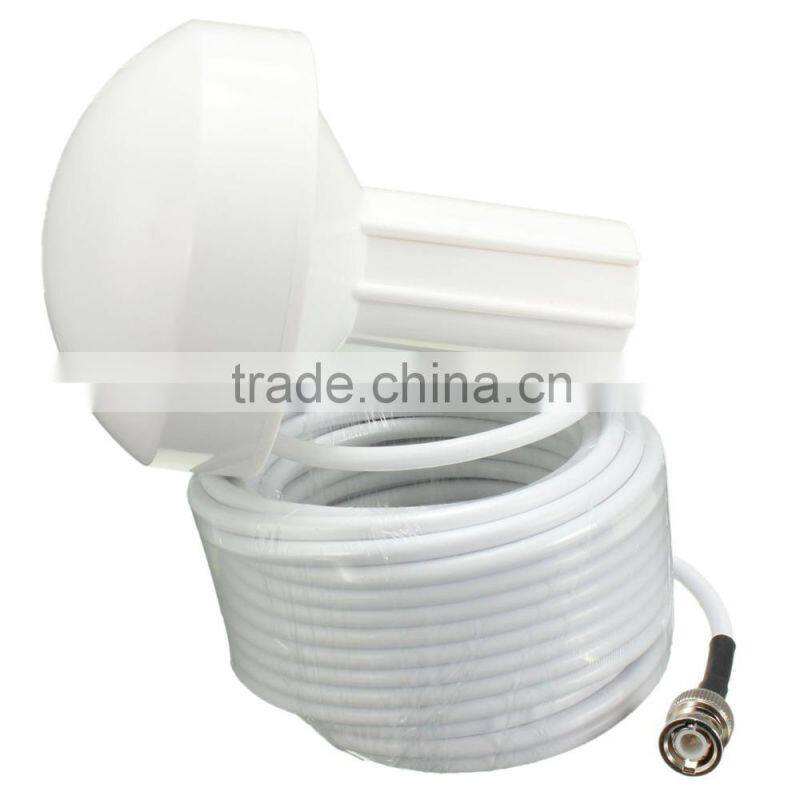

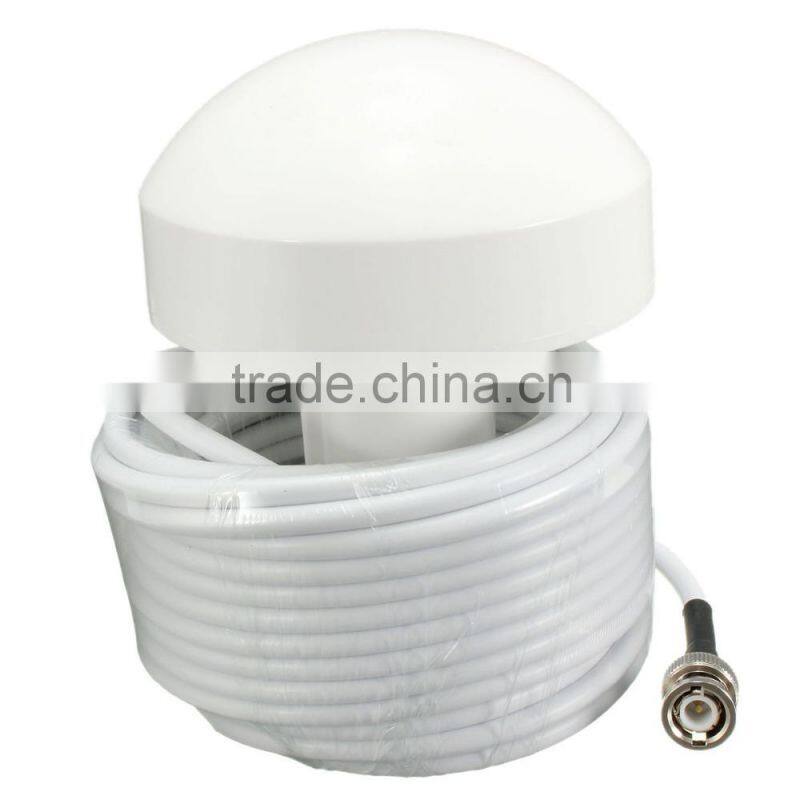

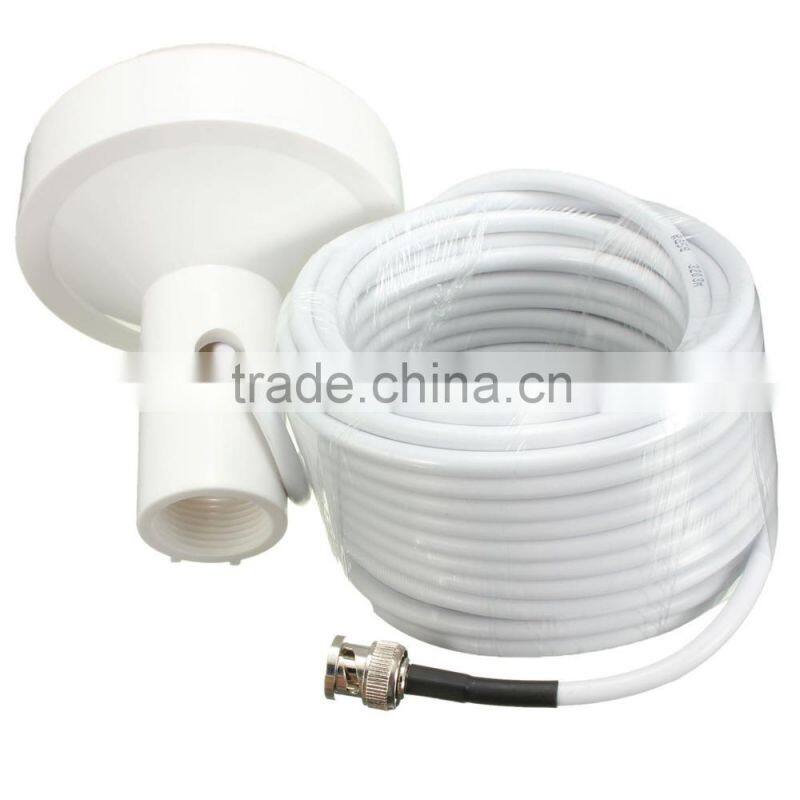

1 x 10M GPS Marine Navigation Antenna

Abarten: GPS Chart Navigator 951XW;

Furuno: GN-80 GPS Receiver AU-12-5B;
Garmin: GPS 100, GPS 100AVD, GPS 100STD, GPS 120, GPS 120XL, GPS 125 Sounder, GPS 128, GPS 15, GPS 152, GPS 45, GPS 45XL, GPS 48 GPSMAP 225, GPS 50, GPS 65, GPS 75, GPS 89, GPS 90, GPS 92, GPS 95XL, GPS II MAP 205, GPS II Plus, GPS III, GPS III Pilot, GPS III Plus, GPS V, GPSCOM 170, GPSMAP 130, GPSMAP 135 Sounder, GPSMAP 152, GPSMAP 162, GPSMAP 168 Sounder, GPSMAP 172, GPSMAP 172C, GPSMAP 176, GPSMAP 176C, GPSMAP 178, GPSMAP 178C, GPSMAP 178C Sounder, GPSMAP 180, GPSMAP 182, GPSMAP 182C, GPSMAP 185 Sounder, GPSMAP 188, GPSMAP 188C, GPSMAP 192C, GPSMAP 196, GPSMAP 198C Sounder, GPSMAP 200, GPSMAP 2006C, GPSMAP 205, GPSMAP 210, GPSMAP 215, GPSMAP 220, GPSMAP 230, GPSMAP 232, GPSMAP 235 Sounder, GPSMAP 238 Sounder, GPSMAP 276C, GPSMAP 292, GPSMAP 295, GPSMAP 296, GPSMAP 298C Sounder, GPSMAP 376C, GPSMAP 378, GPSMAP 396, GPSMAP 478, GPSMAP 492, GPSMAP 496, GPSMAP 498C Sounder, NavTalk Pilot, StreetPilot ColorMap, StreetPilot III GPS;
NorthStar: GP-270ML High Resolution Graphic Receiver, GP-360ML High Resolution Graphic Receiver, GPS Chart Navigator 951XD, GPS Chart Navigator 951XWD, iCOM, Active GPS Antenna AN145, Active GPS Antenna AN150, Chartplotter 925, Gold Chartplotter 6000i, GPS Antenna AN150, GPS Chart Navigator 951, GPS Chart Navigator 951X XD, GPS Chart Navigator 952X XD, GPS Chart Navigator 961, GPS Chart Navigator 962, GPS Navigator 941X XD XW, Platinum Chartplotter 6100i;
Raven Industries: Invicta GPS Receiver, Low Profile GPS Antenna;
San Jose Navigation: AIS Transceiver AIS-2;,
Synergy Systems: AR-10K GPS Antenna BNC, AR-10S GPS BNC Antenna, ART-10K GPS BNC Antenna 10001678, DB-9 GPS Sensors, DB9GPS Sensors, SynPaQ E-M12+T, SynPaQ E-SS12, SynPaQ IE-M12+ DB9 GPS Sensors, SynPaQ IE-m12= EN-3 GPS Sensors, SynPaQ III-M12+ GPS Sensors, SynPaQ III-M12+ T GPS, SynPaQ III-QA GPS Sensors.
