Dash DVD GPS Stereos 3M 9 Feet 28dbi High Gain Active GPS Antenna
- Shenzhen
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
GPS Antenna Active MCX Male Straight Connector With 3M Extension Cable Magnetic
-
Car GPS Navigation Antenna Aerial With SMA Male Connector 3M Cable H1E1
-
GPS Active Antenna 1575.42MHZ Fakra Plug Pin Nut for Car Aerial Receiver 5M
-
GPS Active Antenna 1575.42MHZ Fakra C 5005 SMB Jack Pin for Telematics 3M
-
28dbi GPS External Antenna With Fakra Connector Car Gps Antenna
-
1575.42MHZ RP-SMA Jack Pin for Car GPS Active Antenna Receiver
Product Details
| Place of Origin | Guangdong, China | Brand Name | Yetnorson | |
| Model Number | YNX-GPS-001 | Car Make | universal | |
| Frequence Range | 1575.42Mhz/1602MHz | Gain(dB) | 28±3dbi | |
| Cable Length | 3m/5m cable |
One product with one PE bag packaging of OEM smooth GPS antenna 1575 auto gps antenna with sticker
Product Description
Dash DVD GPS Stereos 3M 9 feet 28dbi high gain Active GPS Antenna
GPS Antenna
Dielectric Antenna
1. Center Frequency(MHz) 1575.42 MHz ±3 MHz
2. Band Width(MHz) ±5 MHz
3. V.S.W.R(in BW) 1.5:1
4. Gain(Zenith) >3dbi
5. Polarization R.H.C.P
6. Impedance 50 Ω
LNA/Filter
1. LNA Gain 28±3 dB
2. Noise Figure 1.5 dB
3. Filter Out Band Attenuation 20dB Min f0±50MHz
30dB Min f0±100MHz
4. DC Voltage 2.2~5 V
5. DC Current 5~15 mA Max
6. Output impedance 50 Ω
Mechanical
1. Cable RG174 3m/5m or others
2. Connector SMA/SMB/MCX/FAKRA/BNC/USB or others
3. Plastic Housing Black
4. Mounting Magnet/Adhesive
5. Weight 75g (3M cable)
6. Size 49×39×15mm (We have many Size type, it is optional)
Environment
storage temperature -45~+100°C
working temperature -40~+85°C
temperature 55%~75%RH
water proof IP67

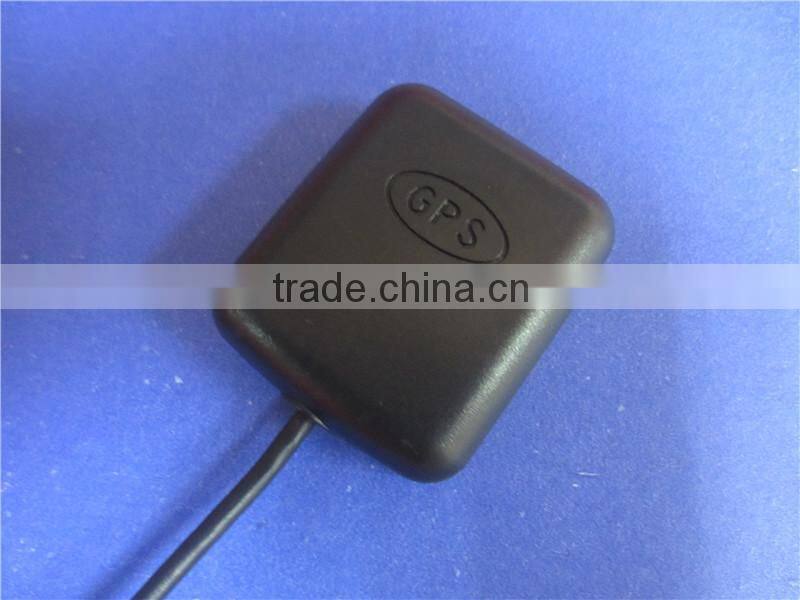

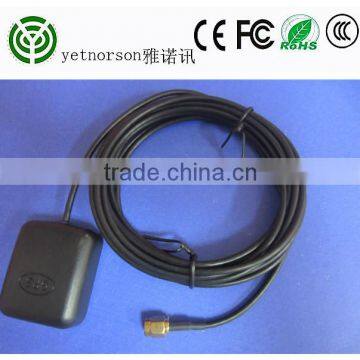

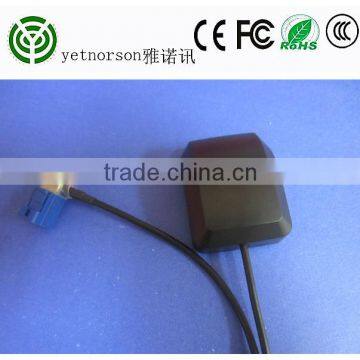

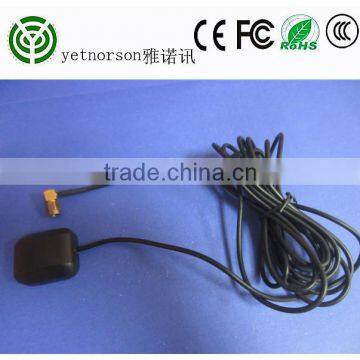

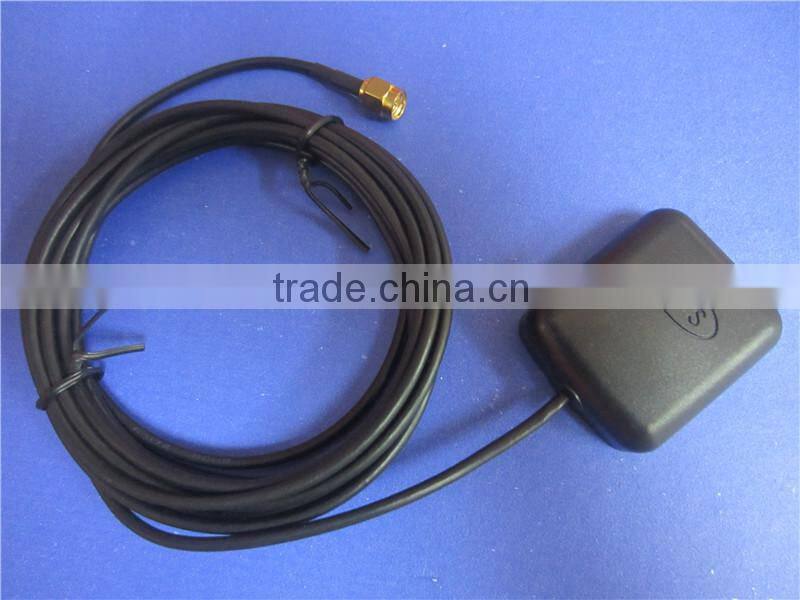

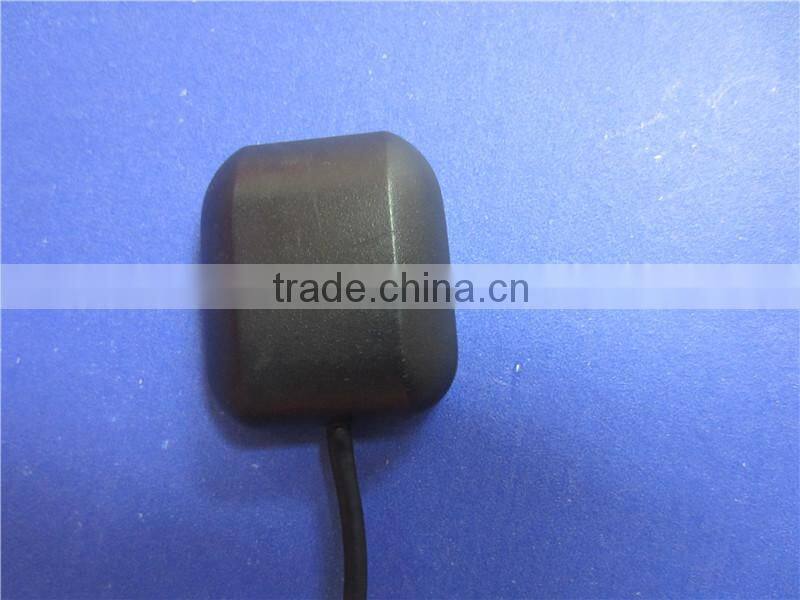

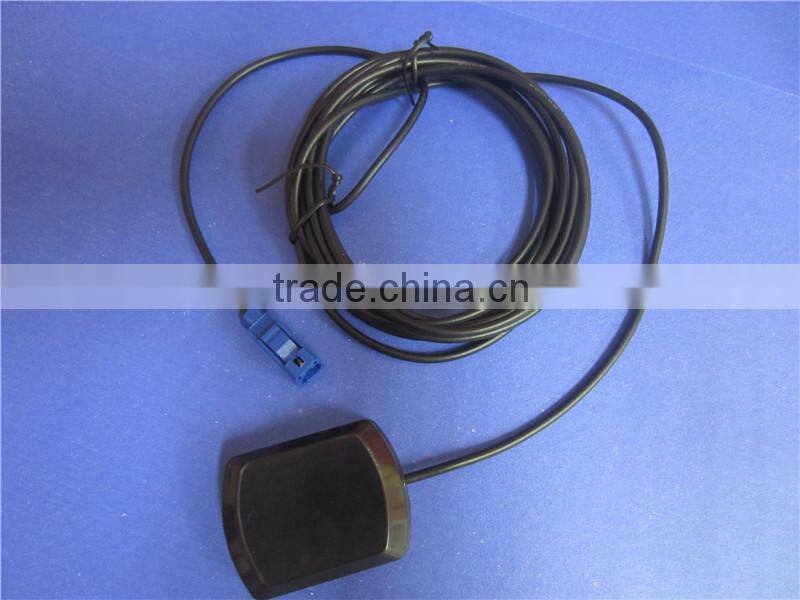

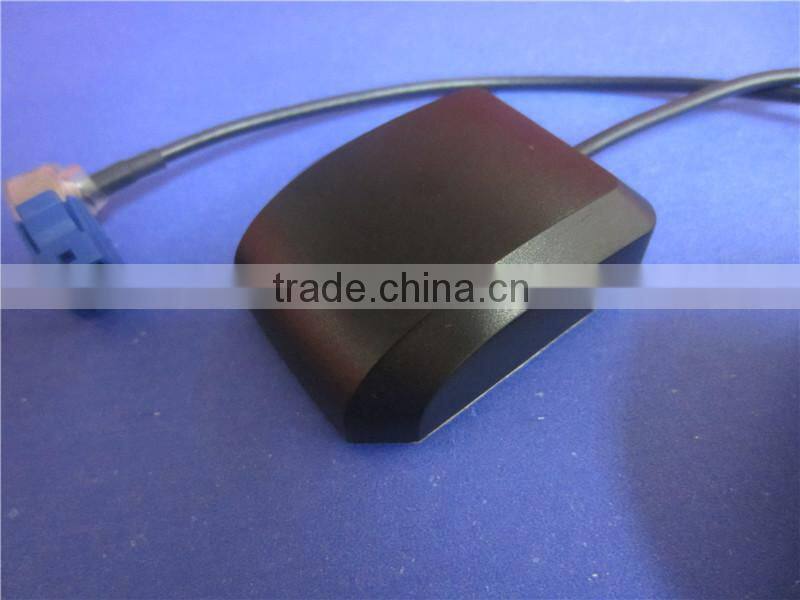

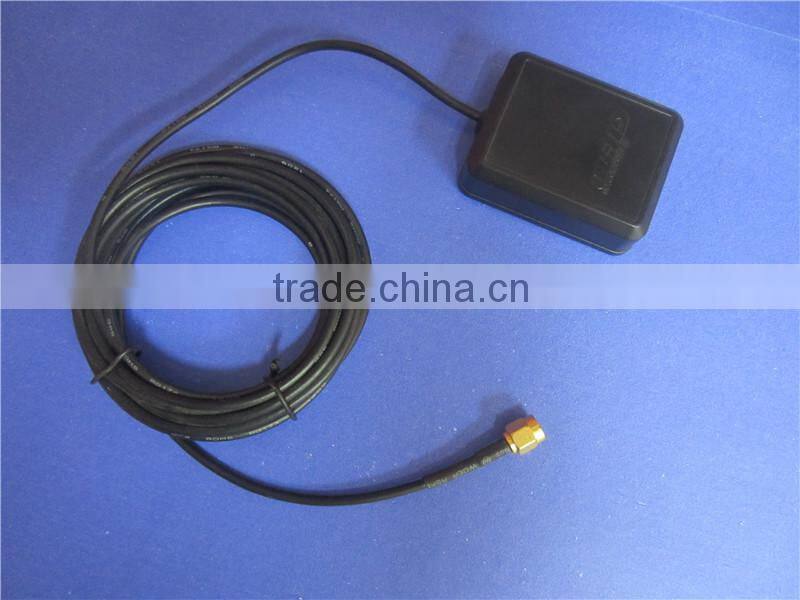

The appearance of 28dbi high gain Active GPS Antenna

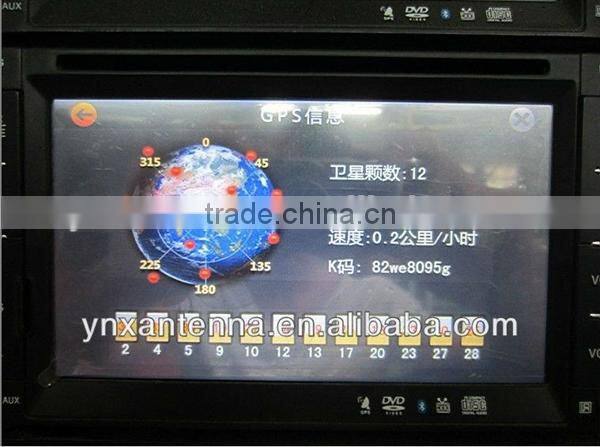

The test of 28dbi high gain Active GPS Antenna
We Provide
1) High quality and competitive price
2) Standard packing and timely delivery
3) We supply OEM and ODM service
4) Sample Order and Small Order are acceptable
1,Q:what is you brand ?
A: Yetnorson antennas
2,Q:how can i get the sample ?
A: if you need sample to test ,please pay for the shipping cost and antenna cost ,there we can send the sample to you
3,Q: how much the shipping cost will be for sample ?
A :The depend on the weight and packing size you are
4, Q :how can i get the price list ?
A :please send the email and order information for us , so we can give the latest price for you
5.Q:Can you give me the deliver time?
A: Delivery time is approx. 14 to 25 business days (excluded Saturday & Sunday, Public Holiday) to most US/UK/AU destinations
1) Australia - 7-14 working days
2)UK/ Canada - 14-21 working days
3)Europe & Ireland - 18-24 working days
4)Brazil/ South America - 30-40 working days
5)Russian Federation:30-50 working days,we suggest you choose hk post
If You have Any Questions, Feel Free to Contact Us
I am Rainbow Zhang,welcome to inquire,any questions and request, please feel free to contact with me!
Mobile: 86-13823784329
QQ: 2851130713
Skype: Rainbow-Yetnorson
Company Profile
Shenzhen Yetnorson Technology Co.,Ltd is one of professional antenna maker, which focus on GSM/CDMA/PHS/3G/4G antenna, 2.4GHz (wi-fi, wlan)/3.5GHz (wimax)/5.8GHz/wi-fi amplifier communication antenna serial(including: all direction, yagi antennas ,3G parabolic antennas, panel antenna, indoor antenna like : ceiling mount antenna, Wall Mount Antenna, desk antenna, double polar, rubber, bandwide, card mount serial antenna. We also provide DVB-T/DMB-T/CMMB moving digital TV antenna, low frenquency antenna: 315MHz/433MHz wi-fi digital /wi-fi control /wi-fi wrote water meter/electricity meter antenna, GPS guide antenna, communicate parts, connector and so on. At present, Shenzhen Yetnorson Technology Co.,Lth.has developed more than 100 styles of antenna, with wi-fi internet, wi-fi electronic control, wi-fi end, wi-fi public telephone, wi-fi digital pass, wi-fi Satilla position, wi-fi Radio broadcasting communication field. We offer antennas with good quality and good price. And we are cooperating with several overseas clients from all over the world. Please support us. Thank you very much!
