Home > Products > UV coating machine > Manual coating machine UVA/UV SERIES
Manual coating machine UVA/UV SERIES
US$ 1,000 - 3,000
/ Unit
1 Unit(Min. Order)
- Shanghai
You May Like
Product Details
| Condition | New | Type | Other, Coating machine | |
| Automatic Grade | Other, Manual | Place of Origin | Shanghai, China | |
| Brand Name | TOWIN | Model Number | UVA/UV SERIES |
Product Description
Specifications
Coating machine1.With IR drying and UV curing systems
2.Low investment & small location
3.High efficiency
4.Perfect result

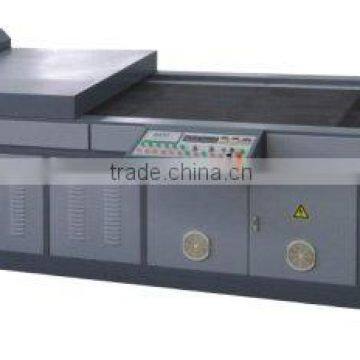

UVA/UV SERIES MANUAL COATING MACHINE
Features:
1. UVA model is configured with IR and UV drying system which is optional according to your requirement.
2. Low investment, small covering area and high efficiency. Powder-removing section, ground coating section are optional.
3. NC oil Reversed control.
Air knife with perspex cover on coater part is available for above 80gsm light paper. It's for your option.
Technical specifications:
| Model: | UV650 | UV920 | UV1200 | UVA650 | UVA920 | UVA1200 |
| Max. Width(mm) | 650 | 9500 | 12000 | 650 | 9500 | 12000 |
| Max. Speed(pcs/h) | 3500 | 3500 | 3500 | 3500 | 3500 | 3500 |
| Sheets weight(gsm) | 250-600 | 250-600 | 250-600 | 250-600 | 250-600 | 250-600 |
| UV Lamp power | 5.6KW X 2 | 8KW X 2 | 9.75KW X 2 | 5.6KW X 2 | 8KW X 2 | 9.75KW X 2 |
| IR Lamp power | / | / | / | 1KW x 12 | 1.5KW x 12 | 1.8KW x 12 |
| Light paper peering system | Air knife system for light paper above 80gsm is optional | |||||
| Weight(t) | 2 | 2.5 | 2.7 | 2.1 | 2.6 | 2.8 |
