Home > Products > UV coating machine > Automatic dual-purpose high speed coating machine

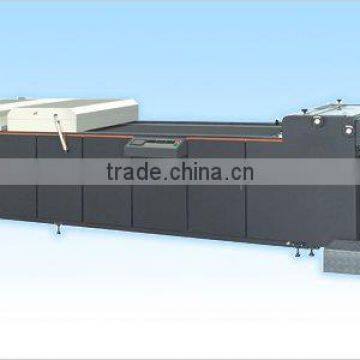

Automatic dual-purpose high speed coating machine
- 50 Unit / Units per Month
- Shanghai
You May Like
Product Details
| Condition | New | Type | Other, Coating machine | |
| Automatic Grade | Automatic | Place of Origin | Shanghai, China | |
| Brand Name | TOWIN | Model Number | SGZ-UI1040A |
Product Description
Specifications
Coating machine1. High efficiency & stability
2. High presice and quality
3. UV coating machine
SGZ-UI1040A AUTOMATIC DUAL-PURPOSE HIGH-SPEED COATING MACHINE
Features:
1. Automatic feeding section: Adopt high-speed stable feeder free from maintenance.Paper truck can directly enter feeding table which improves work efficiency greatly. Movable guide rails and manual feeding table are optional to meet the paper size that feeder can not work with.
2. UV coating: This section adopts integrated casting structure with the performance of high precision, deformation-resistant, running fast and stable and safety.Three-roller reverse running is adopted to control the UV varnish quantity and quality.
3. UV curing: Lamps, reflectors, air cooling systems are composed at this section to efficiently cure coating varnish and keep temperature of the curing box to prevent the deformation of coating paper.
4. Automatic delivery section: Pneumatic joggers can keep sheets delivered orderly. Equipped with pre-delivery table which will be automatically open when paper jam in delivery. Truck can enter the delivery table directly to take out the coated papers.
¨ Far infrared heating and double insulation thermal with a reflective IR drying system bings high thermal effect.
Technical specifications:
| Model: | SGZ-UI740A | SGZ-UI1040A | SGZ-UI1200A |
| Max. Sheet Size(mm) | 740X560 | 1040X760 | 1200X880 |
| Min. Sheet Size(mm) | 280X400mm | 307X400mm | 307x400 |
| Max. Speed(pcs/h) | 7000 | 7000 | 7000 |
| Sheets weight(gsm) | 80-600 | 80-600 | 80-600 |
| UV Lamp power | 6.5KW x 3 | 8KW x 3 | 9.75KW x 3pcs |
| IR Lamp power | 1Kw x 18 | 1.5KW | 1.8KW x 18 |
| Total Power(kw) | 40 | 44 | 51 |
| Weight(kgs) | 3800 | 4600 | 5000 |
| Dimension(mm) | 10940X1450X1600 | 10940X1750X1600 | 10940X1910X1600 |
