Home > Products > HD AHD Camera > SONYIMX322 Security HDAHD camera,2.0megapixel HD AHD camera with Aluminum casing
SONYIMX322 Security HDAHD camera,2.0megapixel HD AHD camera with Aluminum casing
- 2000 Piece / Pieces per Month
- Shenzhen / Hongkong
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
H.264 High Profile Matrix IR AHD camer,Indoor HD-AHD cam for video recorder
-
Shenzhen factory Analog HD-AHD camer,2 mega-pixel HDAHD camera rohs approval
-
30M Long IR Dome HD AHD cam,CCTV HD AHD cam for AHD DVR
-
de seguridad HD 1080P HD AHD camera,Dot-Matrix HD AHD camer 2-years-warranty
-
Home surveillance HDAHD camer,2.0megapixel HD-AHD camera for wholesales
-
Board lens HD 1080P HDAHD camera,Dot Array HD AHD camer support OEM
Product Details
| Place of Origin | Guangdong, China | Brand Name | ZBRAVO | |
| Model Number | Z-A3550L | Type | Analog Camera | |
| Style | Dome Camera | Sensor | CMOS | |
| Technology | Infrared | Special Features | Other, AHD Camera |
Product Description

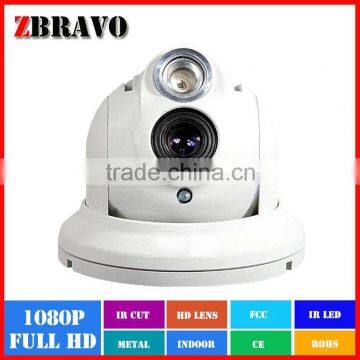

SONYIMX322 Security HDAHD camera,2.0megapixel HD AHD camera with Aluminum casing
- Model: Z-A3550L
- CCD + DSP: 1/3 SONY IMX322+2441H
- Image Sensor: 2.0 Megapixel CMOS Sensor
- Horizontal Resolution: 1080P
Effective Pixels (PAL / NTSC): 1920(H)×1080(V)
- IR Led: 1 pcs Dot IR LED
- IR range:30m
- 3.6mm 3MP fixed board lens
- Color: White
- Weight: 0.4KG
- Dimension: 120(H)*90(D) mm
Model | Z-A3550D | Z-A3550N | Z-A3550L |
CCD + DSP | 1/4 OV9712+NVP2431H | 1/3 SONY IMX225+2431H | 1/3 SONY IMX322+2441H |
Image Sensor | 1.0 Megapixel Sensor | 1.3 Megapixel Sensor | 2.0 Megapixel Sensor |
Horizontal Resolution | 720P | 960P | 1080P |
Effective Pixels | 1280(H)×720(V) | 1280(H)×960(V) | 1920(H)×1080(V) |
Color | White | ||
Compression | H.264 High Profile | ||
TV System | PAL/NTSC | ||
Lens | 3.6mm 3.0Megapixel board lens | ||
IR leds | 1pcs Dot IR led | ||
IR range | 30M IR Range | ||
Scanning System | 2:1Interlace | ||
Minimum illuminator | 0.001Lux/F1.2 | ||
OSD Support | YES | ||
Language | Chinese/English/Franch/Russian etc | ||
IR Cut Filter | YES | ||
HLC | YES | ||
BLC | YES | ||
Mirror | YES | ||
Infrared wavelength | 850nm | ||
S/N Ratio | >=58dB(AGG OFF) | ||
AES | 1/50-1/100,000sec(PAL),1/60-1/100,000sec(NTSC) | ||
DNR | 3D-DNR | ||
Transmission Distance | Over 500m via 75-3 Coaxial Cable | ||
Video Output | 1-channel BNC high definition video output | ||
AGC | Auto/Manual/Off | ||
White Balance | ATW/Manual/Auto | ||
Anti-cut Bracket | 3-AXIS | ||
Synchronization System | Internal Synchronization | ||
Consumption | 3W | ||
Voltage | DC12V (9V ~ 15V) | ||
Operating Temperature | —20℃~60℃ / 10% ~ 95%RH | ||
