Automatic foil stamping and die cutting machine

Specifications

Automatic foil stamping and die cutting machine

APPLICATIONS:

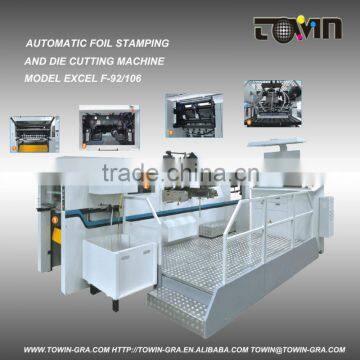

Automatic foil stamping and die cutting machine Excel F-92/106 is a sheet-fed flat-bed foil stamper and die cutter with high speed. It is used to realize die cutting, foil stamping and embossing. Foil stamping and embossing or die cutting and embossing can be done in one pass.

MAIN FEATURES:

1.Middle line positioning system for quick plate loading and locking.

2.New gripper bar with revolving gripper opening and grippers adjustable in transversal to give machine more flexibility.

3.Quick pressure loading and unloading device to shorten the procedure to be in 3-4 seconds.

4. Stamping system controlled by Transcend 09 computer control.

5.Foil stamping system has functions of automatic step calculation and simulation

6.Gaphic operation interface

7. System of passing the highest point twice by means of double toggle structures to ensure stamping quality greatly.

8.New side lay to ensure accurate registration to different kinds of substrate at high speed.

9.Gripper opening twice and mechanical double sheet detector(ultrasonic double sheet detector is optional) to ease your operation.

10.New delivery system with mechanical brushes and delivery suction device to ensure good delivery to thin paper less then 100gsm

11. New feeding system, new feeder and new side lay give nice sheet transportation together.

9.Double platform control system composed by Bosch-Rexroth MLC and Lenze L-Force gives

TECHNICAL SPECIFICATIONS

w   Max. sheet size(mm)                          1020X650/1060X760mm

w   Min. sheet size:                                  430X650/430X350mm

w   Max. die cutting size:                         920X640/1060X746mm

w   Max stamping size:                            900X600/1020X660mm

w   Height of cutting rules:                      23.8mm

w   Stock range:                                          Paper: 90gsm at minimum

w                                                                    Carton:157-2000gsm

w                                                                    Corrugated board: E/B flute

w   Min. gripper margin:                          9mm

w   Max. machine speed:                         7000s/h

w   Max. stamping speed:                       7000s/h

w   Max. hologram stamping speed:    7000s/h

w   Thickness of stamping plate:           3mm

w   Longitudinal foil feeding roller:        4

w   Cross foil feeding roller:                     2

w   Feeding pile height:                             1400mm

w   Delivery pile height:                            1100mm

w   Electric heating zones:                       12

w   Min. foil roll width:                              20mm

w   Foil roll core:                                         25/76mm(1/3’’)

w   Rated power:                                        50kw

w   Air supply:                                              0.8-1.0MPa, less or equal to 0.6cbm/min

w   Machine weight:                                  1.9/2 tons

w   Machine size:                                       5800X4500X2280/5850X4600X2280mm
