Automatic foil stamping and die cutting machine
- 50 Unit / Units per Month
- Shanghai
You May Like
-
Hot foil stamping and die cutting machine
-
Automatic rotary hot foil stamping machine
-
Automatic foil stamping and die cutting machine
-
Automatic die cutting and foil stamping machine with stripping
-
Automatic die cutting and foil stamping machine
-
High-speed automatic folder gluer for lock-bottom paper box-ZH-YZ650
Product Details
| Condition | New | Type | Other, Die cutting machine | |
| Place of Origin | Shanghai, China | Brand Name | TOWIN | |
| Model Number | TYM1050 |
Product Description
Specifications
Die cutting machine1. With foil stamping function
2. High efficiency and stability
3. High quality
4. Perfect result

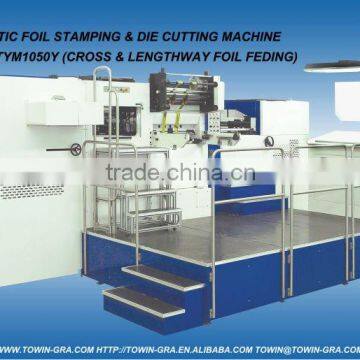

TYM 1050 AUTOMATIC FOIL STAMPING & DIE-CUTTING MACHINE
Features:
1. This cutting machine adopts the imported AC converter to control the host trasmission, and it's booted up and braked by imported pneumatic clutch.
2. Imported electrical control system is used to control the overall operation. Large LCD touch screen is for man-machine conversation, condition monitoring and faults diagnosis and display which makes the operation more humanized.
3. Three rollers driven by servo are used for the foil delivering.
4. Zoning control the temperature control modules. Temperature is set and displayed on screen. Timely heating function can effectively improve the working efficiency.
Technical specifications:
| Max sheet size(mm): | 1050x750 |
| Min sheet size(mm): | 450x390 |
| Paper weight(g/m2): | 150-500 |
| Cardboard(mm): | ≤1.5 |
| Min gripper(mm): | 4 |
| Max stamping size(mm): | 1020x700 |
| Max fed foil length(mm): | 700 |
| Thermal plate zones: | 12 |
| Max die cutting size(mm): | 1040x730 |
| File size of board frame(mm): | 1120x760 |
| Max working pressure(N): | 250x10000 |
| Max stamping speed(pcs/h): | 4000 |
| Max speed(pcs/h): | 5500 |
| No. of foil feeding shafts: | 3 |
| Foil size(mm): | Min width:45 |
| Foil core diameter(mm): | 25/1"76/3" |
| Height of fed paper stack(mm): | 1100 |
| Height of delivered paper stack(mm): | 850 |
| Rated power(kw): | 51 |
| Weight(kg): | 20000 |
| Dimension(mm): | 6000x4640x2140 |
