Road Grader XCMG Mini Motor Grader GR180 Small Motor Grader for Sale
- any China Port
- T/T
You May Like
-
China Road Machinery 180HP Xcmg GR180 Motor Grader Price for Sale
-
Land Leveling Machine 180HP XCMG Small Motor Grader Price GR180 for Sale
-
Chinese Top Brand XCMG Motor Grader GR180 With 190HP
-
XCMG Motor Grader GR180
-
180HP XCMG MOTOR GRADER GR180/HOT EXPORT MOTOR GRADER
-
2016 XCMG Construction Machinery Motor Grader GR180
Product Details
| Condition | New | Forward Speed(km/h) | 38 | |
| Reverse Speed(km/h) | 23 | Place of Origin | Jiangsu, China | |
| Brand Name | XCMG | Model Number | GR180 AS3032 | |
| Weight | 15400kg | Dimension(L*W*H) | 8900x2625x3470 | |
| Certification | ISO | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
XCMG official manufacturer Motor Grader GR180 pull behind road grader for sale
The XCMG GR Series Motor Graders are mainly used in ground leveling ,canalling , slope scraping ,earthmoving ,scarification or snow removal work on road, airfield ,farmland ,and so on .They are necessary construction machines for national defense engineering ,mine construction, town and country roads building ,and farmland improvement..

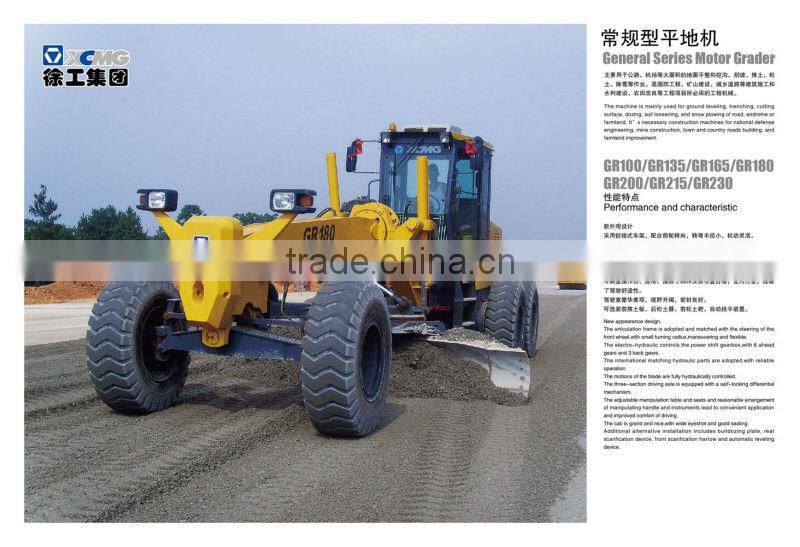

Performance and characteristic:
New appearance design.
The articulation frame is adopted and matched with the steering of the front wheel, With small turning radius,maneuvering and flexible.

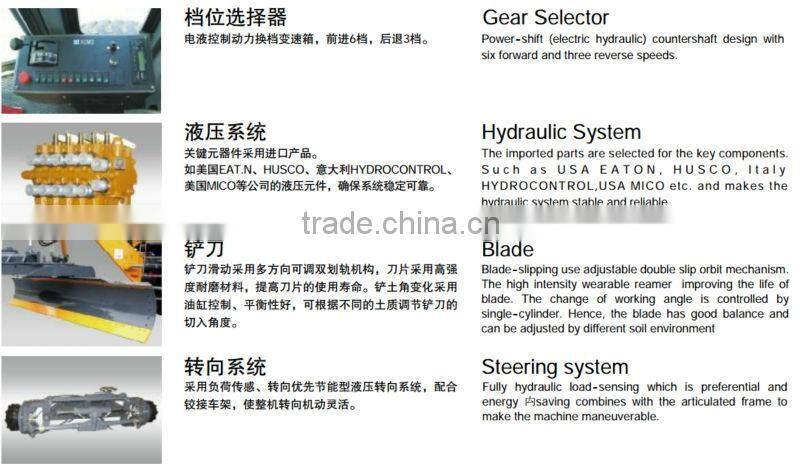

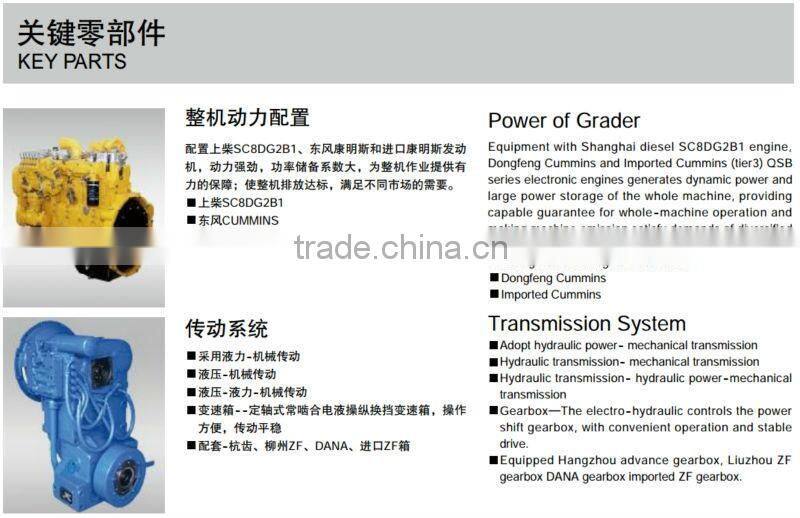

The electro-hydraulic controls the power shift gearbox,with 6ahead gears and 3 back gears.
The international matching hydraulic parts are adopted,with reliable operation.
The motions of the blade are fully hydraulically controlled.
The rear axle is the three-section driving axle which is provided with the NO-SPIN self-locking differential mechanism.
The manipulation table and seats are adjustable. The arrangement of the manipulation handle and instruments are reasonable,with convenient application,and the comfort of driving is improved .
The cab is grand and nice,with wide eyeshot and good sealing .

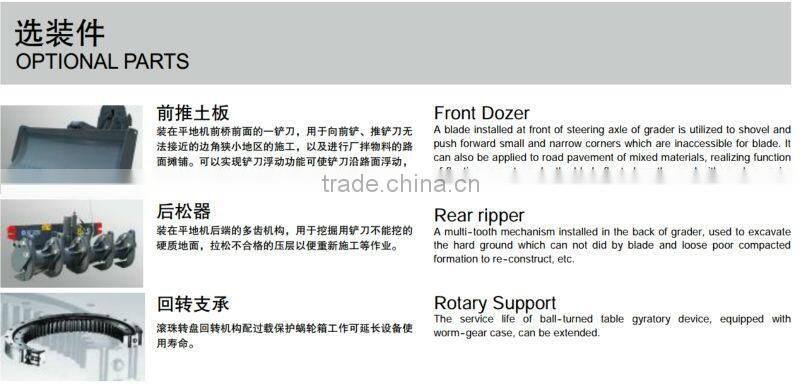

The front bulldozing plate,rear scarification device,front scarification harrow and automatic leveling device can be added .
XCMG small road grader GR180 Motor Graders
XCMG mini Motor Grader GR180 Motor Graders
| Main Technical Specifications | |||||
| Model | GR180 | GR215 | |||
| Engine | Enginemodel | CTAA8.3/SC8D190G2B1 | CTAA8.3/6CTA8.3 | ||
| Ratedpower/speed | kw/rpm | 138/2200140/2300 | 153/2200 160/2200 | ||
| Travelingspeedforward | km/h | 5,8,11,19,23,38 | 5,8,11,19,23,38 | ||
Performancespexification | Travelingspeedreverse | km/h | 5,11,23 | 5,11,23 | |
| (f=0.8)Tracliveforce | kN | 84 | 90 | ||
| Max.gradeability | % | 30 | 30 | ||
Min.turning radius using articulation | m | 7.3 | 7.3 | ||
| Maximum lift above ground | mm | 450 | 450 | ||
Operatingspecification | Maximum depth of cutting | mm | 500 | 500 | |
| Maximum blade position angle | 90 | 90 | |||
| Blade cutting angle | 28~70 | 28~70 | |||
| Blade | Circle reversing rotation | 360 | 360 | ||
| Molo board width x height | mm | 3660×610/3965×610 | 3965×610/4270×610 | ||
| Dimension(LxWxH) | mm | 8900x2625x3470 | 8970x2625x3470 | ||
| Operating weight(Standard) | kg | 15400 | 16500 | ||
Road grader XCMG grader GR180 Motor Graders
XCMG small road grader GR180 Motor Graders
XCMG mini Motor Grader GR180 Motor Graders
Road grader XCMG grader GR180 Motor Graders
XCMG small road grader GR180 Motor Graders
XCMG mini Motor Grader GR180 Motor Graders
Road grader XCMG grader GR180 Motor Graders
