Home > Products > Mining Dump Truck > Howo Hova Mining Dump Truck

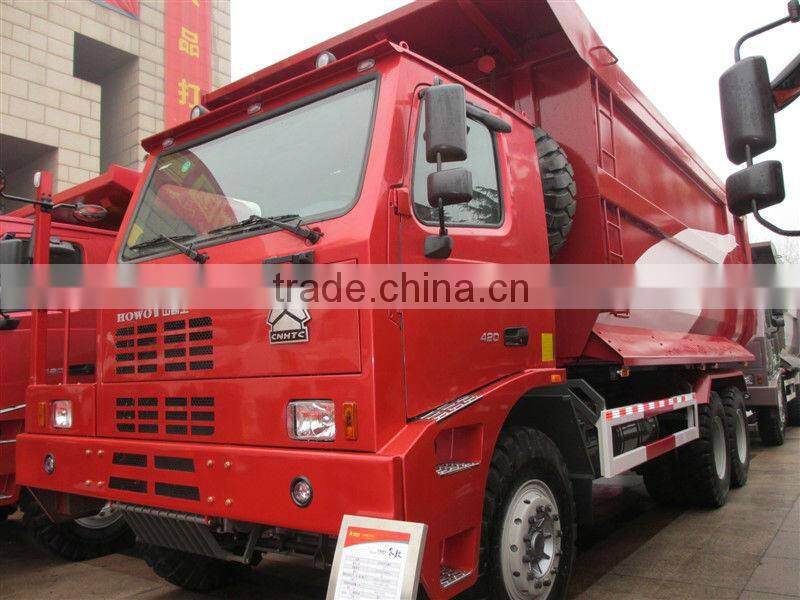

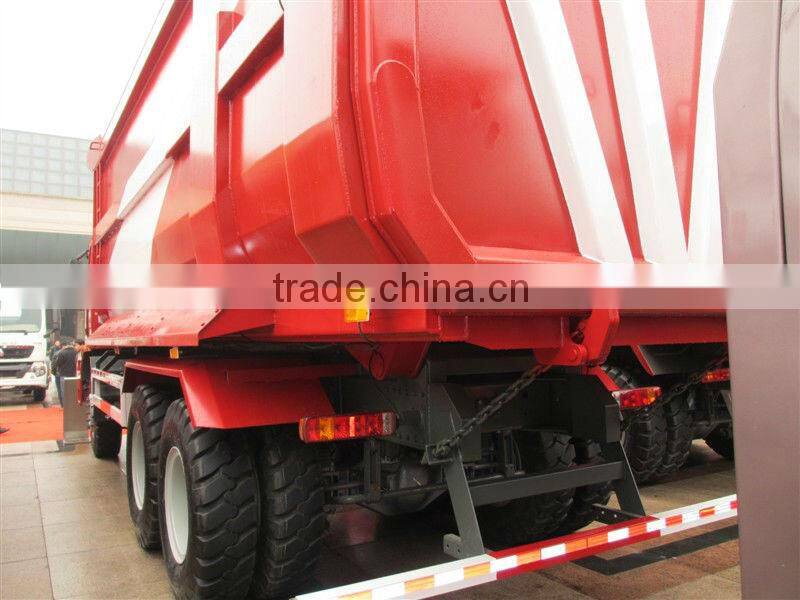

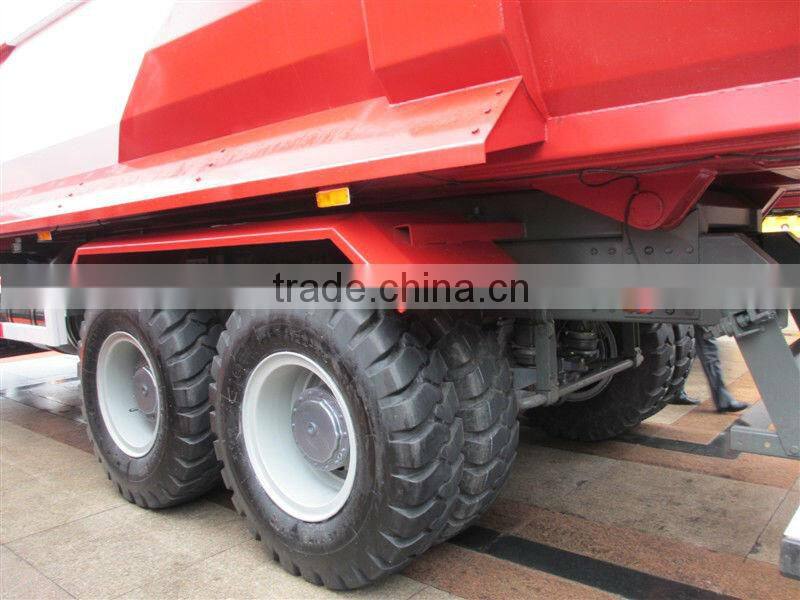

Howo Hova Mining Dump Truck
- Tianjin
- T/T
You May Like
Product Details
| Drive Wheel | 6x4 | Capacity (Load) | 51 - 60t | |
| Horsepower | 351 - 450hp | Condition | New | |
| Transmission Type | Automatic | Emission Standard | Euro 2 | |
| Fuel Type | Diesel | |||
| Place of Origin | Shandong, China | Brand Name | Howo | |
| Model Number | ZZ3257N3647A | Dimensions (L x W x H) (mm) | Dimensions (L x W x H) (mm): 8450x3500x4100 |
Product Description
Specifications
Brand Name: sinotruckDrive Wheel: 6x4
Capacity (Load): 61 - 70t
Horsepower: 351 - 450hp
Specifications
howo 6x4 mining dumper 10 wheel 70t tipper
Engine:371hp Euro2
capacity:70ton120cub
wheeler:10
sleeper:one
howo 6x4 mining dumper 10 wheel 70t tipper
- Descriptions
To build china’s best mining dump truck!
HOWO mine overload, the truck has an existing design idea .dump design it is entirely new model which according to the characteristics of the mining condition, it is suitable for severe applications such as strip mine, reclamation, steel works, construction site of hydropower station and dock. Engaged in the area of short distance transport business, belonging to non-announcement vehicles model.
Sinotruck power engine, powerful, and reliability. New materials, new structures engine flywheel and engine rear Suspension.
For more details, please read the following form.
Product Description | |||
SPECIFICATIONS FOR DUMP TRUCK | |||
Vehicle Specifications | Model | ZZ5707S3640AJ | |
Traction 4X2,6X4,8X4 | 6X4 | ||
Power | 371HP | ||
Weight Parameter | Complete Vehicle Kerb Mass(kg) | 24260 | |
Maximum authorized total mass (kg) | 70000 | ||
Dimension Parameter | External Dimensions(mm) | Length (mm) | 8450 |
Width(mm) | 3500 | ||
Height(mm) | 4100 | ||
wheelbase(mm) | 3800+1500 | ||
Internal cargo Sizes | Length (mm) | 5600 | |
Width (mm) | 3100 | ||
Height (mm) | 1800 | ||
Performance Parameter | Maximum Speed(km/h) | 75 | |
Maximum Gradeability(%) | 43 | ||
Turning diameter(m) | 17 | ||
Recommended Configuration | Engine | Engine Type | WD615.47 |
Rated power(kW)/Rev(r/min) | 273/2200 | ||
Torque(N*m)/Rev(r/min) | 1900/1100-1600 | ||
Transmission | HW15710 | ||
Clutch(mm) | 430 | ||
Axle | Front Axle | HF12 | |
Rear Axle | AC26 | ||
Fuel Tank(L) | 500 | ||
Track(mm) | 2740+2520 | ||
Front overhang/rear overhang(mm) | 1500/1000 | ||

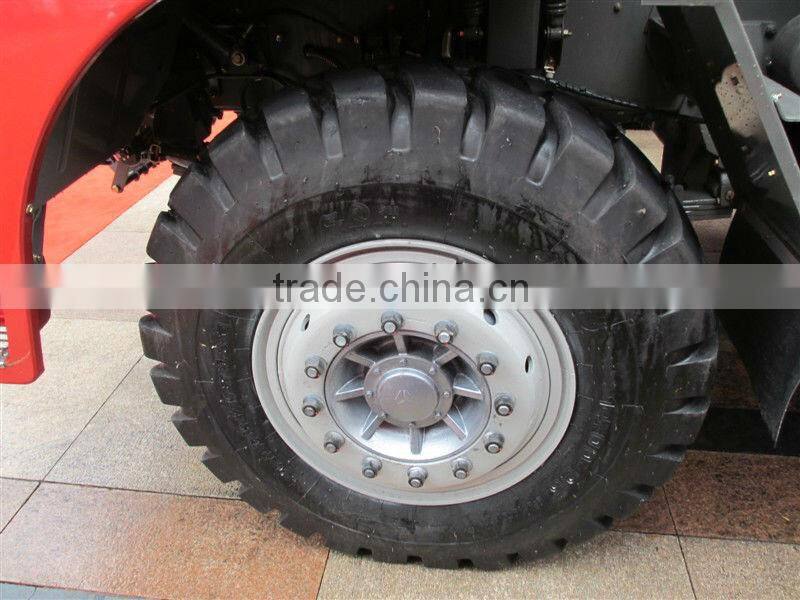

Type | 14.00-20 | ||
Cabin | Sleeper | one sleeper | |
OTHER | ABS | optional | |
COLOR | optional | ||
