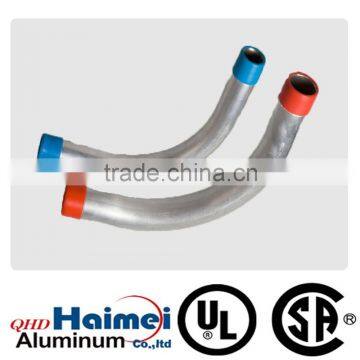

5'' Rigid Aluminum 90 Degree Elbows UL Approval
USD $41.05 - $59.11
/ Piece
1 Piece(Min.Order)
- 6000 Ton / Tons per Month
- XINGANG/HOUSTON
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Place of Origin | Hebei, China | Brand Name | HAIMEI | |
| Model Number | ALU5090EL00 | Type | Other, RIGID, Rigid | |
| Material | Other, ALUMINUM6063 |
Product Description
Product Description
Specifications:
• 6063 Aluminum Alloy
• Available 1/2’’to 6’’
• NPT thread on each end
• Aluminum Rigid Elbows meet UL6A and ANSI C80.5
Product image
Size
| Trade Size | Approxinate Weight | Nominal Diameter | |||||||
| Desingnator | per100Ft(30.5) | A | B | C | |||||
| U.S. | Metric | Ib. | Kg. | in. | mm. | in. | mm. | in. | mm. |
| 1/2 | 16 | 26 | 11.7 | 4.00 | 101.6 | 6.50 | 165.1 | 2.50 | 63.5 |
| 3/4 | 21 | 37 | 16.7 | 4.50 | 114.3 | 7.25 | 184.2 | 2.75 | 69.9 |
| 1 | 27 | 63 | 28.7 | 5.75 | 146.1 | 8.375 | 212.7 | 2.875 | 73.0 |
| 1-1/4 | 35 | 103 | 46.7 | 7.25 | 184.2 | 10.25 | 260.6 | 3.00 | 76.2 |
| 1-1/2 | 41 | 143 | 65.0 | 8.25 | 209.6 | 11.875 | 301.6 | 3.625 | 92.1 |
| 2 | 53 | 228 | 103.3 | 9.50 | 241.3 | 14.00 | 355.6 | 4.50 | 114.3 |
| 2-1/2 | 63 | 375 | 170.0 | 10.50 | 266.7 | 15.75 | 400.1 | 5.25 | 133.4 |
| 3 | 78 | 592 | 268.7 | 13.00 | 330.2 | 18.75 | 476.3 | 5.75 | 146.1 |
| 3-1/2 | 91 | 842 | 381.7 | 15.00 | 381.0 | 21.75 | 552.5 | 6.75 | 171.5 |
| 4 | 103 | 1084 | 491.7 | 16.00 | 406.4 | 23.00 | 584.2 | 7.00 | 177.8 |
| 5 | 129 | 2331 | 1058.0 | 24.00 | 609.6 | 36.00 | 914.4 | 11.00 | 279.4 |
| 6 | 155 | 3721 | 1688.0 | 30.00 | 762.0 | 42.50 | 1079.5 | 12.50 | 317.5 |
