0.25 inch UL 90 degree rigid aluminum elbow
- 6000 Ton / Tons per Month
- Tianjin Xingang Port
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Place of Origin | Hebei, China | Brand Name | HAIMEI | |
| Model Number | E310429 | Type | Other, rigid | |
| Material | Other, ALUMINUM |
Product Description

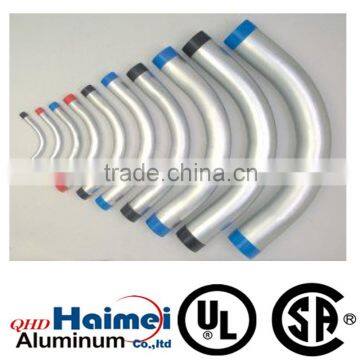

HaiMei Rigid Aluminum Conduits and Accessories are manufactured from 6063 aluminum alloy. They meet the Underwriters Laboratories Standard for Electrical Metal Conduit – Aluminum Bronze & Stainless Steel, UL6A. This product is especially suited for applications and installations requiring light weight, highly corrosive resistant, and non-magnetic protection. The series of our products are manufactured in standard trade size from 1/2" to 6" and include conduits, elbows (90o and 45o), couplings, and nipples.
• 6063 Aluminum Alloy
• Available 1/2 "to 6"
• NPT thread on each end
| Trade Size | Approxinate Weight | Nominal Diameter | |||||||
| Desingnator | per100Ft(30.5) | A | B | C | |||||
| U.S. | Metric | Ib. | Kg. | in. | mm. | in. | mm. | in. | mm. |
| 1/2 | 16 | 26 | 11.7 | 4.00 | 101.6 | 6.50 | 165.1 | 2.50 | 63.5 |
| 3/4 | 21 | 37 | 16.7 | 4.50 | 114.3 | 7.25 | 184.2 | 2.75 | 69.9 |
| 1 | 27 | 63 | 28.7 | 5.75 | 146.1 | 8.375 | 212.7 | 2.875 | 73.0 |
| 1-1/4 | 35 | 103 | 46.7 | 7.25 | 184.2 | 10.25 | 260.6 | 3.00 | 76.2 |
| 1-1/2 | 41 | 143 | 65.0 | 8.25 | 209.6 | 11.875 | 301.6 | 3.625 | 92.1 |
| 2 | 53 | 228 | 103.3 | 9.50 | 241.3 | 14.00 | 355.6 | 4.50 | 114.3 |
| 2-1/2 | 63 | 375 | 170.0 | 10.50 | 266.7 | 15.75 | 400.1 | 5.25 | 133.4 |
| 3 | 78 | 592 | 268.7 | 13.00 | 330.2 | 18.75 | 476.3 | 5.75 | 146.1 |
| 3-1/2 | 91 | 842 | 381.7 | 15.00 | 381.0 | 21.75 | 552.5 | 6.75 | 171.5 |
| 4 | 103 | 1084 | 491.7 | 16.00 | 406.4 | 23.00 | 584.2 | 7.00 | 177.8 |
| 5 | 129 | 2331 | 1058.0 | 24.00 | 609.6 | 36.00 | 914.4 | 11.00 | 279.4 |
| 6 | 155 | 3721 | 1688.0 | 30.00 | 762.0 | 42.50 | 1079.5 | 12.50 | 317.5 |
Only Haimei Rigid Aluminum Conduit Offers 2 Ways to Save on Every Job
1.Lower Upfront Material Cost
| Percent Material Savings for Aluminum vs Galvanized |
size | %Savings |
1/2” | 15% |
3/4” | 8% |
1" | 12% |
1 1/4” | 14% |
1 1/2” | 9% |
2" | 9% |
2 1/2” | 21% |
3" | 15% |
3 1/2” | 12% |
4" | 11% |
5" | 38% |
6" | 44% |
2.Less Installation Labor
| Persent Installation Labor Savings for Aluminum vs Galvanized |
| Size | Laid in Trench | 12"ceiling | 16"ceiling | 20"ceiling |
| 1 1/4" | 34.9% | 32.6% | 32.2% | 35.3% |
| 1 1/2" | 46.9% | 48.1% | 47.7% | 46.9% |
| 2" | 59.7% | 57.1% | 55.3% | 57.1% |
| 2 1/2" | 59.1% | 58.2% | 59.1% | 57.1% |
| 3" | 57.1% | 58.1% | 57.1% | 57.6% |
| 3 1/2" | 72.4% | 71.2% | 58.2% | 57.9% |
| 4" | 73.1% | 71.5% | 71.4% | 70.2% |
| 5" | 72.4% | 70.8% | 70.0% | 71.4% |
| 6" | 71.4% | 71.0% | 70.3% | 70.0% |
