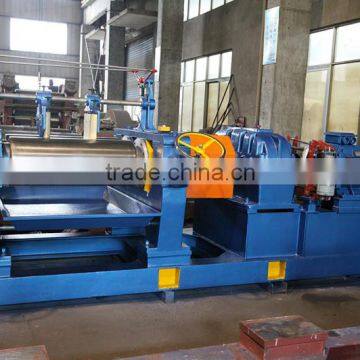

Chinese Supplier Newest Rubber Open Roller Mixing Mill Opening Type Rubber Mixing Mill Machine

Chinese Supplier Newest Rubber open roller mixing mill Opening type rubber mixing mill machine

Usage:

This machine is mainly used in Rubber & Plastic Product factory for Natural Rubber Mixing(plasticating),Raw Rubber and Compound mixing,rubber warm-up mixing and pressing sheet.

Features:

1)      The roll adopts the vanadium titanium metal alloy chilled cast iron and its surface is hard and wear-proof. The internal cavity is processed to make temperature well proportioned on the roll surface.

2)      The machine is equipped with an overload protection device to prevent the main components from being damaged.

3)      The machine is also equipped with an emergency brake device. When an emergent arises, just draw the safety pull rod, and the machine will stop immediately. It is safe and reliable.

4)      The transmission system adopts a hardened tooth-surface reducer, which has a compact structure with higher transmission efficiency, lower noise and longer service life.

5)      The base frame is a whole framework, which is convenient for installation.

6)      Auto-lubrication system for greese or oil and match bearing bush.

7)      The XB-400 equipped with hydraulic brake.

Main technical parameters:

model xk-360

dia of rolls:360mm

working length of rolls:900mm

friction ratio of rolls(front/rear):1:1.25

linear speed of front roll:16.25m/min

gap adjusted scope:10mm

capacity per batch:20-25kg

driving motor power:30kw

overall size:3780x1850x1740mm(lxwxh)

weight:6500kg
