Open Mixing Mill Equipment
- Qingdao port
- T/T
You May Like
Product Details
| Condition | New | Place of Origin | Shandong, China | |
| Brand Name | Zhihong | Model Number | XK-230-1 | |
| Voltage | 220V-460V | Power(W) | 15kw | |
| Dimension(L*W*H) | 2800x1200x1120mm | Weight | 2500kg | |
| Certification | ISO9001 | Warranty | 12 months | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
open mixing mill equipment
open mill rubber mixing machine
two roll rubber mill qingdao
Usage:
This machine is mainly used in Rubber & Plastic Product factory for Natural Rubber Mixing(plasticating),Raw Rubber and Compound mixing,rubber warm-up mixing and pressing sheet.
Features:
1) The roll adopts the vanadium titanium metal alloy chilled cast iron and its surface is hard and wear-proof. The internal cavity is processed to make temperature well proportioned on the roll surface.
2) The machine is equipped with an overload protection device to prevent the main components from being damaged.
3) The machine is also equipped with an emergency brake device. When an emergent arises, just draw the safety pull rod, and the machine will stop immediately. It is safe and reliable.
4) The transmission system adopts a hardened tooth-surface reducer, which has a compact structure with higher transmission efficiency, lower noise and longer service life.
5) The base frame is a whole framework, which is convenient for installation.

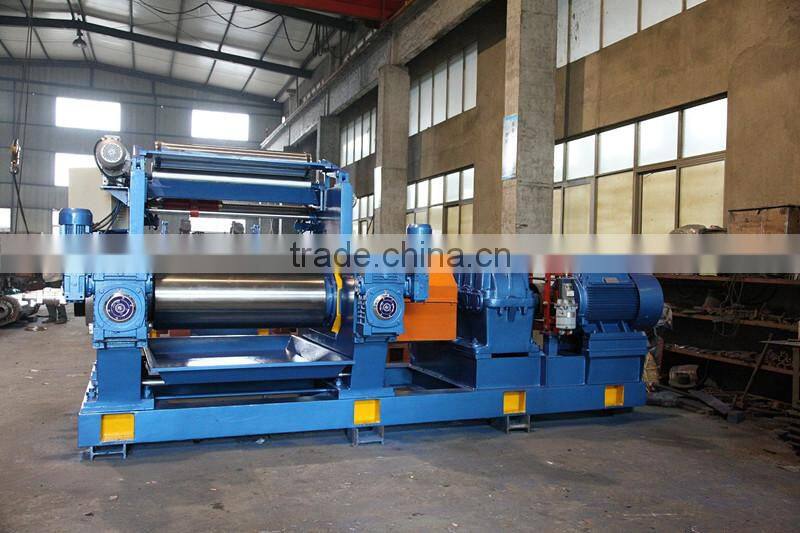

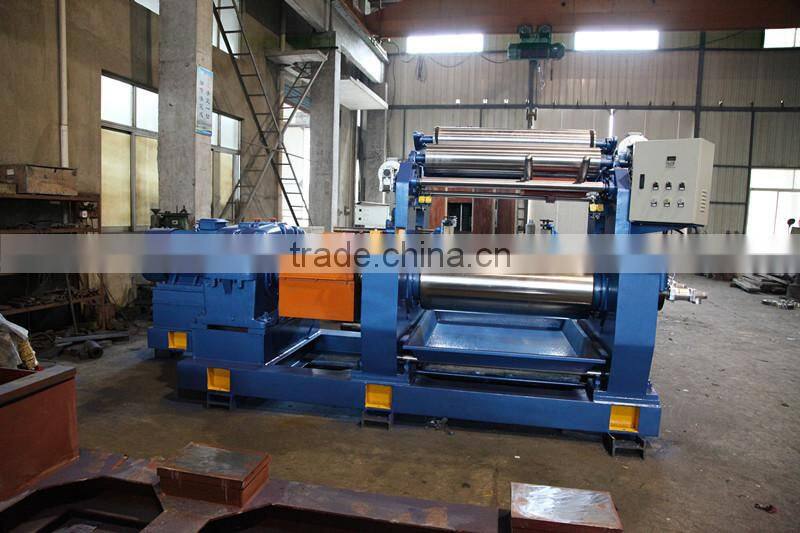

6) Stock blender can be installed according to requirement, it can save labor manpower .
7) Auto-lubrication system for greese or oil and match bearing bush.
Main technical parameters:
Technical parameter type | XK-160 | XK-230 | XK-250 |
working diameter of rolls(mm) | 160 | 230 | 250 |
working length of rolls(mm) | 320 | 600 | 620 |
front roll surface speed(m/min) | 8.95 | 10.21 | 14.1 |
friction ratio | 1:1.35 | 1:1.19 | 1:1.17 |
max.nip(mm) | 4.5 | 7 | 8 |
capacity per.batch(kg) | 1~2 | 6~10 | 8~15 |
motor power(kw) | 5.5 | 15 | 18.5 |
overall dimension:LxWxH(mm) | 1380x860x1320 | 2800x1200x1120 | 3400x1500x1800 |
weight(kg) | 1280 | 2500 | 3500 |
If you are interested in our more products, please check our website:
http://zhihongrubbermachinery.en.china.cn
Thank you
