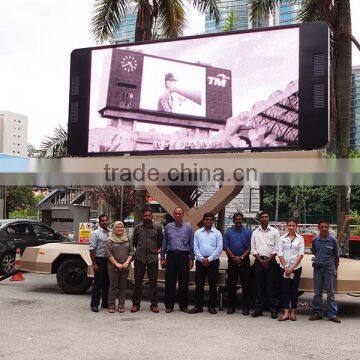

Popular Mobile Outdoor LED Display Advertising Trailer for muslin buyers

Model

YES-T12

Chassis

Brand

Yeeso

External dimension

6600mm×1820mm×2650mm

Material

16# manganese steel

sheet metal structure

1.2mm plate steel

Tire

650 rubber tire

Gross mass

4750KG

Brake

Manual and Hit hydraulic brake

minimum turning diameter

≤18000mm

Scissor Type Hydraulic Lifting Platform and support system

Hydraulic lift platform

Lifting type:Scissor,Platform size:3200mm×750mm×400mm

Lifting height:2000mm,load bearing :5T

Supporting system

leading screw supporting legs system,  Lifting height: 300mm,each afford 5T,its wind-proof level can reach to maximum level 8 when screen is lifted up

LED screen

Screen size

4800mm×2400mm=11.52 sqm

Module size

160mm(W) ×160mm(H)

Chip

R: Guanglei,G,B:Silan

Pixel pitch

10 mm

Brightness

≥6000cd/ sqm

Max power consumption

1200 W/ m

Average power consumption

600W/ m²

Life span

100,000hour

Power supply

Input voltage

three-phase five-wire 380V

Output voltage

220V

Electrical current

50A

Power consumption

average:0.5wh/sqm

Multi-media control system

Industrial PC

Processor: Dual Core CPU, display card:512,hard disk:320G,CD-ROM:DVD, internal storage:2G

Monitor

KVM 15-inch LCD display

Power amplifier

unilateral power output:200W

Speakers

Max power consumption:200W

Control system of LED screen

Linsn/ZHOGNQING(The patent technology of point by point correction)
