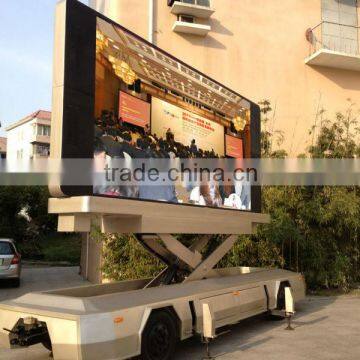

2013 For Sale, YES-T12 Mobile LED Trailer, Trailer mounted Folding LED display,Advertising Vehicle,Advertising trailer

Model

YES-T12

Chassis

Brand

YEESO

External dimension

6800mm×1920mm×2350mm

Material

16# manganese steel

sheet metal structure

1.2mm plate steel

Tire

650rubber tire

Gross mass

4750KG

Brake

Manual and Hit hydraulic brake

minimum turning diameter

<18000mm

Scissor Type Hydraulic Lifting Platformand support system

Hydraulic lift platform

Lifting type: Scissor, Platform size: 3200mm×750mm×400mm

Lifting height:2000mm,load bearing:5T

Supporting system

leading screw supporting legs system, Lifting height: 300mm,each afford 5T,its wind-proof level can reach to maximum level 8 when screen is lifted up

LED screen

Screen size

4800mm×2400mm

Module size

160mm(W)×160mm(H)

Chip

R: GUANGLEI; G,B:SILAN

Pixel pitch

10 mm

Brightness

≥6000cd/m²

Max power consumption

1200W/sqm

Average power consumption

600W/m²

Life span

100,000hour

Power supply

Input voltage

three-phase five-wire 380V

Output voltage

220V

Electrical current

50A

Power consumption

average:0.5wh/m²

Multi-media control system

Industrial PC

Processor:Dual Core CPU; Display card: 1G; Hard disk:500G; CD-ROM: DVD; Internal storage:2G

Monitor

KVM 15-inch LCD display

Power amplifier

unilateral power output: 200W

Speakers

Max power consumption: 200W

Control system of LED screen

Linsn/ZHOGNQING
