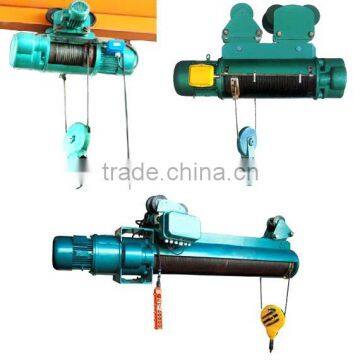

CD/MD Model Trolley Motor Hoist, Trolley Electric Hoist

Specifications

  CD&MD model wire rope electric hoist is a kind of light-duty lifting equipment with advantages of tight structure, light weight, small volume, wide common use and convenient operation etc.If reducers with hard gear surface are applied, it will have long life and high mechanical efficiency. Conic rotor brake motors are equipped which has safety limiter in both up and down directions.

    CD model electric hoist has only one normal speed ,which can satisfy normal application. MD model electric hoist has normal lifting speed and slow lifting speed which make it lift steadily and accurately.

    CD&MD model electric hoist can be widely used to hoist heavy objects, or installed on the straight or curve I-section steel beam of single beam cranes. They can also be used together with Electric Hoist Double beam gantry cranes and jib cranes. All the above has made the electric hoists common in industrial and ore enterprises, railway, wharfs and warehouses.

    The standard capacity of this type electric hoist: 0.5T, 1T, 2T, 3T, 5T, 10T, 16T, 20T..

    Lifting height: 6m, 9m, 12m, 18m, 24m, 30m, and Max. 100m..

The lifting motor of electric hoist:

The travelling unit of electric hoist:

The wire rope guider of electric hoist:

The main limit witch for upward/downward motions & second limit switch for upward motion:

The hook has safe latch, and 360 grade turning:

The electrical control box of hoist with Siemens brand contactors and pendant pushbuttons control:

The package of hoist for delivery:
