Wirerope Electric Hoist For Explosive Gas
- Tianjin Port
- T/T Credit Card
You May Like
Product Details
| Condition | New | Place of Origin | Henan, China | |
| Brand Name | pengda | Model Number | BCD/HB | |
| Usage | Other, Industrial hoist | Power Source | Other, Electric, Electric,3phase 380V 50Hz | |
| Sling Type | Wire Rope | Maximum Lifting Weight | 20ton | |
| Maximum Lifting Height | 30m | Lift Speed | 8m/min,7m/min, 4.2m/min, 3.3m/min | |
| Certification | ISO9001 | Warranty | 12 months |
Product Description
Specifications

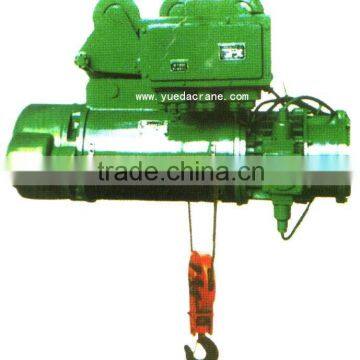

Wire Rope Electric HoistExplosion proof electric hoist
Lifting Capacity:20t
Lifting Height: 9-30m
Duty Class: M3
The BCD/HB model electric hoist is explosion proof hoist, it is developed from CD model electric hoist, the motors and electrical organs are explosion proof protection, it is used in the environment that mixed with inflammable gas/oil, the duty class is intermediate-M3.
This hoist is applicable to workshop where the Explosion conduction is lower than IIB or IIC, the burning point of inflammable gas is not higher than T4.
The capacity from 1ton to 20ton.
The lifting height from 6m to 30m.
Environmental Conditions:
Elevation: below 1000m, relative humidity(RH): Max. 85%(-25oC~40oC)
Mainly applied to Class I, Class IIB and IIC. Temperature scale is class T1-T4 (explosion hazardous area).
Can be used on the I beam track or single beam crane.
Can be installed on the fixed support as a use of weight lifting.
Lifting Motor
Adopt professional explosion-proof conic rotor brake asynchronous motors, safe and reliable;
Protection grade is IP54 / IP55 and Class F insulation.
Explosion proof type push buttons:
Packing of hoist
