Home > Products > Electric Hoist > Wire Rope 10t Electric Hoist
Wire Rope 10t Electric Hoist
- Tianjin Port
- T/T Credit Card
You May Like
-
Wire Rope 5ton Electric Hoist
-
HY Model Metallurgy Hoist 2ton Metallurgy Hoist Electric Hoist
-
HY Model Metallurgy Hoist 5ton Metallurgy Hoist Electric Hoist
-
Explosion Proof 16ton Hoist Anti-explosion Electric Hoist
-
HY Type Electric Hoist 10ton Metallurgy Electric Hoist
-
Wirerope Electric Mobile Hoist 5ton
Product Details
| Condition | New | Place of Origin | Henan, China | |
| Brand Name | pengda | Model Number | CD1/MD1 | |
| Usage | Other, Industrial/constuction/workshop/warehouse | Power Source | Other, Electric, Electric,3phase 380V 50HZ or other standards | |
| Sling Type | Wire Rope | Maximum Lifting Weight | 10t | |
| Maximum Lifting Height | 9~30m | Lift Speed | 7m/min, 7/0.7m/min | |
| Certification | ISO9001 | Warranty | 14 months | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Wire Rope 10t Electric Hoist
10ton electric hoist is one kind of heavy lifting equipment with tight structure, it can lift heavier cargo, the lifting capacity from 10ton, the lifting height from 9m to 30m, the control models are pendant pushbuttons or wireless remote control.
We can also produce other type electric hoist:
1). Frequency inversion functional electric hoist;
2). CD1 and MD1 model wire rope electric hoist;
3). Low headroom type electric hoist;
4). wire rope explosion-proof electric hoist;
5). Curve travelling electric hoist.
Main technical specification of 10ton electric hoist
Capacity (ton) | 10 | ||
Model | CD | MD | |
Travelling mechanism | Travelling speed (m/min) | 10, 20, 30 | 10, 20, 30 |
Motor | 2x0.8kw | 2x0.8kw | |
Lifting mechanism | Lifting speed (m/min) | 7(single speed) | 7/0.7(double speed) |
Lifting height (m) | 9, 12, 18, 24, 30 | 9, 12, 18, 24, 30 | |
Motor | 13kw | 13/1.5kw | |
Duty Class | M3 | ||
Power source | 380V, 50HZ, 3 phase (or other standard) | ||
Working temperature | -20~40°C | ||
Width of I-beam | 100~132mm or others | ||
Branch of rope | 4 ropes | ||
Brake | Mounted on motors | ||
Control model | Pendant pushbutton control or wireless remote control | ||

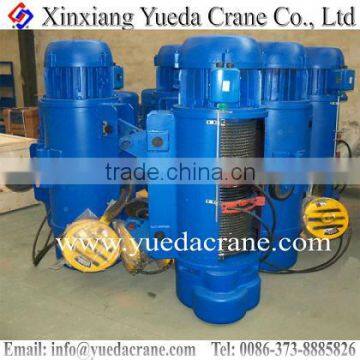

The picture of electric hoist:
The lifting motor of electric hoist:
The travelling unit of electric hoist:
The wire rope guider of electric hoist:
The main limit witch for upward/downward motions & second limit switch for upward motion:
The hook has safe latch, and 360 grade turning:
The electrical control box of hoist with Siemens brand contactors and pendant pushbuttons control:
The package of hoist for delivery:
