SU10 Pro Audio Plastic Coaxial Active Speaker

Specifications

Active speaker         professional active speaker         active plastic speaker          plastic mini active speaker         conference active speaker            10 inch coaxial speakers            clear plastic speaker              coaxial active speaker             coaxial driver

Contact your sales representative Sawean Su at 0086 15018515829, always here
cn201432212

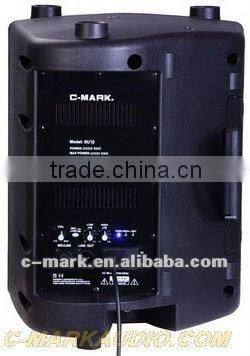

SU10 plactive active speaker

SU series full plastic coaxial speaker is a kind of plastic-coated speaker driven by coaxial speaker units. It is mainly applied in venues such as Karaoke rooms with large SPL, live performance, conference rooms, multi-functional hall, and mini outdoor performance, etc.

SU series powered plastic speaker features compact, lightweight, high efficiency, low heat, high reliablity because it has built in digital amplifier. Input audio signal will be split to HF and LF by electronic crossover and then amplified individually to drive the tweeter and woofer in order to get better sound quality.

it has the following features:

1. The external covering of the speaker is molded by high polymer engineering plastics. Neat cabinet structure, light weight, anti-collision design
2. Simple and neat appearance, novel shape, small size, convenient mobility, suitable for mobile performance.
3. Coaxial drivers, unique one-magnet-dual-loop technology, tweeter and bass diaphragm make the sound in the same axis, so that treble and bass sound synchronously, with no time difference, clear voice, high fidelity, accurate middle and high low-frequency positioning, and even sound field distribution, both horizontal and vertical dispersion angles are 120 °.
4. High reliability, stability and durability; Stable performance, HF feedback protection is designed in speaker crossover circuit to protect the speaker and ensures its stability and reliability.
5. Convenient suspension, suspension device can meet a variety of ways, for example, a couple of SU speakers can be assembled and suspended horizontally, or very easy to fix on the wall and ceiling.

SU10 plastic coaxial active speaker Specifications

Power : 200W RMS

Max Power: 400W RMS

Component:  LH105034

Frequency response:  60Hz-18KHz

sensitivity:  95dB(1M/1W)

THD+N:<0.1% SPL:118dB

Net Weight:14KG

Power supply:  100-240V ~ 50/60Hz

Product Size: 350X340X460

Packing size: 420X430X540
