Home > Products > C-MARK New Active Loudspeaker > 850W 128dB 3 Way Coaxial Driver Digital Active Loudspeaker C-MARK TK315A

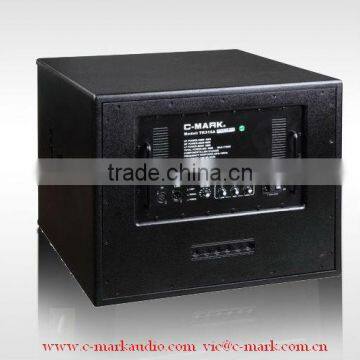

850W 128dB 3 Way Coaxial Driver Digital Active Loudspeaker C-MARK TK315A
Negotiable
1 (Min.Order)
- 0 per Month
- Yantian/Shekou
- T/T
You May Like
-
HI44T+LO1275A,450W,100dB Active Audio Speaker C-MARK FT04A for sale
-
Hi75TG+LO15100A,650W,102dB Active Audio Speaker C-MARK FT05A for Sale
-
450W/121dB Active Stage Monitor Loudspeaker C-MARK FT04MA
-
Hi75TG+2xLO15100A,950W,106dB C-MARK FT06A Active Audio Loudspeaker for Sale
-
WLO18125A 900W/133dB Active Loudspeaker C-MARK FT10A
-
Hi44T+LO1275A-8Ohm-400W/125dB Network Active Loudspeaker C-MARK K12
Product Details
| Place of Origin | Guangdong, China | Brand Name | C-MARK | |
| Model Number | TK315A |
Product Description
Specifications
performs super bass effect3 way coaxial driver drives HF,LF and Sub
Pre-amp components
3-channel Class D amplifier circuits
Brief Introduction
TK315A digital active loudspeaker performs super bass effect, it consists of a coaxial driver that drives all HF, LF and Sub at one single point. This loudspeaker features high efficiency, high sound output, refined sound quality, perfect protection functions and good EMC characteristics. And it adapts power supply voltage from AC 100V to 240V 50/60Hz, suitable for universal power. TK315A is designed for venues like Karaoke hall, auditoriums, meeting rooms and multifunctional halls for large SPL.
Main Features
1. Adopted 3 way coaxial driver, using unique one-magnet-three-loop technology. The diagrams of HF, LF and Sub make the sound in the same axis point, so that all frequency sounds synchronously, with no time difference. With clear HF and LF, sub bass deep, strong and vigorous, it provides even sound field distribution, both horizontal and vertical dispersion angle are 120 °
2. Using PFC technology switching power supply components, adopts wide voltage range AC 100V-240V 50/60Hz global power supply.
3. Using independent 3-channel Class D amplifier circuits, high energy conversion efficiency, low-carbon and environmental friendly.
4. Pre-amplifier components using three way crossover circuits, with independent gain setting for HF, MF, LF.
5. Plug and Play, convenient to use, clear instructions, can be installed and operated easily even by non-professionals.
6. Efficient and safe dynamic compression function on power output and temperature protection circuit, free users from worries.
7. Suitable for a wide range of applications: commercial, night club, entertainment, schools, military and so on.
Technical Parameters
Model No. | TK315A |
HF Power (8Ω): | 100W RMS |
MF Power (8Ω): | 250W RMS |
LF Power(4Ω): | 500W RMS |
Power in total: | 850W RMS |
Components: | LMH151244ND (15” + 12” + 1.75”) neodymium |
Frequency response: | 40Hz-18KHz |
Crossover point: | LP 200Hz HP 3KHz |
Max power: | 1700W |
Sensitivity: | 99dB(1W/1m) |
THD: | < 0.1% |
SPL: | 128dB |
Slope: | 40dB/10 |
Power supply: | 100-240V ~50/60Hz AC |
