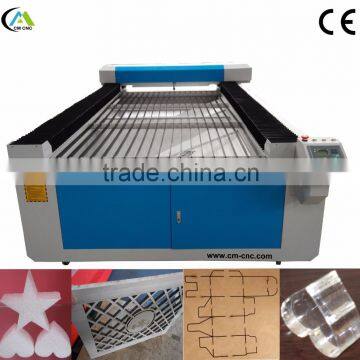

CM-1325 Popular Large Format High Power CO2 Laser Acrylic Machine

FOB Price

US$ 3,000 - 7,000 / Set

1 Set(Min. Order)

Port Qingdao
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Laser Type	CO2
Applicable Material	Acrylic, Leather, MDF, Paper, plastic, Plexiglax, Plywood, Wood	Cutting Thickness	20mm thick wood, 30mm thick acrylic
Cutting Area	1300X2500mm	Cutting Speed	0~100% control by software
CNC or Not	Yes	Cooling Mode	Water Cooling
Control Software	Ruida USB	Graphic Format Supported	AI, BMP, DST, DXF, DXP, PLT
Place of Origin	Shandong, China	Brand Name	CM
Model Number	CM-1325	Certification	CE
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

CM-1325 Popular Large Format High Power CO2 Laser Acrylic Machine

Standard Features:

1. CO2 Sealed glass laser tube.

2. Ruida USB controlling system, rich functions, can effect engraving on plane, gradient engraving by 360 degree, cutting and drilling holes etc.It can completely work off-line and do not take any computer resources

3. Has the function of re-carving after break point and power failure.

4. Transmit files directly in Coreldraw, AutoCAD,etc.

5.This machine is competiable with Windows XP,Windosws 7 and Windos 8 system

6. Adopt Hiwin linear square rails, more precision.

7.Water chiller cooling system, can cool the laser tube well.

8. Has the function of forecasting process time.

9.Big power three phase stepper motors

Applicable Industries:Model Industry(construction models, aviation and navigation models and wooden toys), advertising, decoration, art crafts, and electric appliances, etc.

Applicable Materials:Non-metal materials such as acrylic, wood planks(light planks), bamboo ware. Double colored boards, paper, leather, shells, coconut shells, ox horns, resin animal grease,ABS boards, etc.

Model	CM-1325
Laser Power	150W
Laser Type	CO2 sealed, glass laser tube, water cooling
Work Area	1300 X 2500 mm
Cooling Type	Water-cooled and Protection System
Engraving Scanning Speed	0-60000 mm/min
Cutting Speed	0-1000mm/min
Laser Output Control	1-100% Software Setting
Smallest Character Engraving	English: 1.0X1.0 mm
Highest Scanning Precision	2500DPI
Power Supply	AC 110-220V±10%, 50-60Hz
Operating Temperature	0°-45°C
Operating Humidity	5%-95%
Locating Precision	≤±0.01mm
Supported File Format	DST,PLT,BMP,DXF,AI
Compatible Software	TAJIMA,CORELDRAW,PHOTOSHOP,AUTOCAD,All Type of AUTOCAD Software in cloth
Driving System	Stepper Electrical Motor
Package Dimension	3300X2200X1500 mm
Net Weight	1200 KGS
Gross Weight	1300 KGS
Optional Spare Parts	Up-down Worktable, Rotary System, Honeycomb Worktable
Removable Spare Parts	Laser Tube and Lens

Samples

Package:
