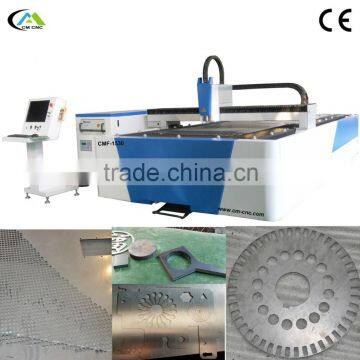

CMF-1530 Metal Laser Cutter/Stainless Steel Laser Cutting Machine

FOB Price

US$ 60,000 - 100,000 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Laser Type	Fiber Laser
Applicable Material	Metal	Cutting Thickness	Max 6mm metal
Cutting Area	1500X3000mm	Cutting Speed	30m/min
CNC or Not	Yes	Cooling Mode	Water Cooling
Control Software	CutMax Fiber Laser Cutting Software	Graphic Format Supported	AI, BMP, DST, DWG, DXF, DXP, PLT
Place of Origin	Shandong, China	Brand Name	CM
Model Number	CMF-1530	Certification	CE
After-sales Service Provided	Engineers available to service machinery overseas

CMF-1530 Metal Laser Cutter/Stainless Steel Laser Cutting Machine

Product Description:

With high quality fiber laser generator, high precision "HIWIN" ballscrew transmission and advanced

automation NC system, this product is getting high and new technology in one which by laser cutting and

high precision machinery NC technology. Getting high speed, high precision, high efficiency and low cost

together perfectly, this product can be the best choice for bulk metal materials cutting job.

Machine features:

1, High speed, high precision, high efficiency and low cost

2, Easy on operation, fiber optical path, without tediously adjustment on optical path

3, Compact structure, good sealing, strongly adaptable to changes in the environment.

4, With the perfect automatic nesting system which can save time, save the materials, the sheet utilization

ratio up to 95%

Applicable industry:

Aerospace technology, rocket, plane, robot, elevator, steamship and automobile manufacturing and metal

parts processing industry for metal plate, advertisement, kitchen ware, bit tool, hardware etc.

Parameter of the machine:

1	Machine Name	Fiber laser cutting machine
2	Laser machine cutting area	1500x3000mm
3	Cutting thickness	0.2-5mm stainless steel/0.2-6mm steel
4	Laser power	500W
5	Cooling System	Water Cooling
6	laser device	IPG(Raycus is optional)
7	Control System	CutMax Fiber Laser Cutting Software
8	Laser wave length	1080nm
9	Transmission system	Imported ballscrew
10	Drive Motor	Japan Yaskawa Servo motor
11	X.Y axis location accuracy	±0.01mm
12	X.Y axis repeat location accuracy	±0.01mm
13	X.Y axis max moving speed	30m/min
14	Max cutting speed	1--16m/min
15	Min cutting line with	0.02mm
16	Machine area size	5.6x3.2x1.5m
