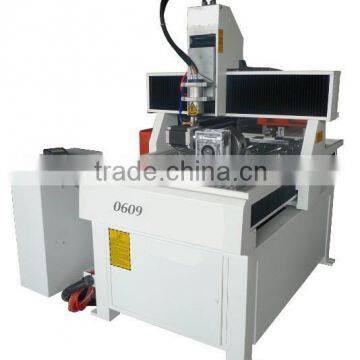

CM-6090 Wood Rotary 6090 CNC Router
- Qingdao Port
- T/T Credit Card
You May Like
Product Details
| Condition | New | CNC or Not | CNC | |
| Place of Origin | Shandong, China | Brand Name | CM | |
| Model Number | CM-6090 | Voltage | AC220V/50Hz,Single Phase | |
| Power(W) | 6KW | Dimension(L*W*H) | 1300X1100X1500mm | |
| Weight | 300KGS | Certification | CE | |
| Warranty | One Year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
CM-6090 Wood Rotary 6090 CNC Router1.X,Y,Z Are Ballscrew
2.Hiwin Linear Square Guide Rails
3.T-slot Table
4.Rotary Axis
CM-6090 Wood Rotary 6090 CNC Router
1. Independent control box.Totally smart and economical on price.
2. Ball screw rod transmission on XYZ gurantee the higher precision , more popular on thin engraving and acrylic cutting.
3. Cast-iron machine structure
4.DSP control system
5. Hiwin Linear Square Guide Rails
6.Rotary Axis
Applicable industries:
Advertisement: engraving and cutting various labels, number plate,acrylic,etc.
Art craft: engraving characters of any languages and graphics on gifts and souvenirs.
Applicable materials:
Wood, aluminum board, plastic, density board, MDF board, wave board, PVC, acrylic,crystal, light marble and other nonmetal
materials and light metal materials
Description | Parameter |
X,Y Working Area | 600*900mm |
Z Working Area | 110mm |
Resolution | +0.01mm |
Lathe Structure | Cast-iron structure |
X,Y Structure | Ballscrew transmission |
Z Structure | Germanyrolling ball screw, Hiwin square guide rail |
Max. Idling Speed | 8m/min |
Spindle | 2.2KW |
Spindle Rotate Speed | 0-24000r/min, variable speed |
Inverter | Fuling |
Working Voltage | AC220V/50Hz,Single Phase |
Working Mode | Sub-division Stepper Motor |
Driver | Leedshine 542 |
Command | G code,HPGL,U00,mmg,plt |
Operating System | DSP with USB interface |
Diameter of cutter | φ3.175-φ12.7mm |
Cooling Mode Of Spindle | Water-cooling |
Work-holding | T-slot |
Net Weight | 300KGS |
Gross Weight | 350KGS |
