Home > Products > Advertising CNC Router > CM-6090 Acrylic Engraving CNC Router

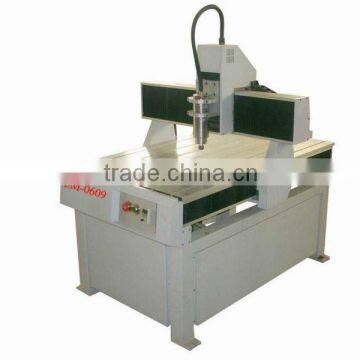

CM-6090 Acrylic Engraving CNC Router
- Qingdao
- T/T Credit Card
You May Like
Product Details
| Condition | New | CNC or Not | CNC | |
| Place of Origin | Shandong, China | Brand Name | CM | |
| Model Number | CM-6090 |
Product Description
Specifications
CM-6090 Acrylic Engraving CNC Router1.X,Y Are Ballscrew
2.Rotary Device
3.Hiwin Square Guide Way
4.Steel Lathe
CM-6090 Acrylic Engraving CNC Router
Cylinder Wood engraver is to engrave embossements on cylinder or cube workpieces by means of Chuck type Rotary device.
they make the delicate stair railings, table legs,walking sticks and etc.
One end of Rotary device is claw type which can hold the diameter 15 cm, 20cm ,30cm ,40cm diameter or some other special, total rotary chassis length can be 1200mm .it can clamp high weight goods . Both end will rotary simultaneously with accurate concentricity. in case of shifting of the cylinder goods.
Rotary device can be installed on table work CNC engravers vertically or horizontally.
Or we make the professional CNC turner without any tableworks.
Description | Parameter |
X,Y Working Area | 600*900mm |
Z Working Area | 140mm |
Resolution | +0.01mm |
Lathe Structure | Cast-iron structure |
X,Y Structure | Ballscrew transmission |
Z Structure | Germanyrolling ball screw, Hiwin square guide rail |
Max. Idling Speed | 8m/min |
Spindle | 2.2KW |
Spindle Rotate Speed | 0-24000r/min, variable speed |
Inverter | Sunfar |
Working Voltage | AC380V/50Hz |
Working Mode | Stepper |
Driver | Leedshine 860 |
Command | G code,HPGL,U00,mmg,plt |
Operating System | DSP with USB interface/Weihong |
Diameter of cutter | φ3.175-φ12.7mm |
Cooling Mode | Water-cooling |
Dust-collect Function | Optional |
Work-holding | By Clamp |
Net Weight | 500KG |
Gross Weight | 550KG |
