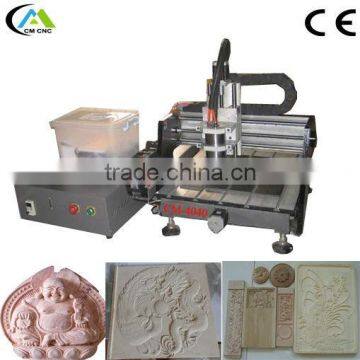

CM-4040 Mini Router CNC Para Trabajar La Madera
- 200 Set / Sets per Month
- Qingdao Port
- T/T Credit Card
You May Like
-
CM-3030 3 Axis Mini CNC Router For Artcraft
-
CM-6090 Art Carving CNC Router 6090 For Wood Acrylic Metal Stone
-
CM-1212 PCB Board CNC Engraving Machine
-
CM-3030 High Precision CNC Router Metal Engraver/Metal Engraving CNC Router
-
CM-3030 Popular Small Used CNC Router Sale
-
CM-3030 Hot Sale Small CNC Metal Router
Product Details
| Condition | New | CNC or Not | CNC | |
| Place of Origin | Shandong, China | Brand Name | CM | |
| Model Number | CM-4040 | Voltage | 220V/50Hz,Single Phase | |
| Power(W) | 4KW | Weight | 200KGS | |
| Certification | CE | Warranty | One Year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
CM-4040 Mini Router CNC Para Trabajar La Madera1.DSP System
2.Hiwin Linear Square Guide Way
3.Ballscrew
4.Cast-iron
CM-4040 Mini Router CNC Para Trabajar La Madera
Standard features:
- Whole machine is cast-iron
- The machine adopts gantry movement, it can process any kinds of materials freely.
- Three axes adopt Taiwan Hiwin high precision square guide rails; X ,Y, Z axis adopts Germany-made ball screw,with high precision and longevity.
- Well compatibility: CAD/CAM designing software e.g. Type 3/Artcam/Castmate/Wentai etc.
- Has the function of re-carving after break point and power failure.
- Has the function of forecasting process time.
- Adopting advanced DSP control system.
- Adopting water cooling system, it can provide good cooling effect when carving flinty materials.
Applicable industries:
Wood processing: processing of various furniture such as door, window, cabinet, craft wood door, screen and so on.
Advertisement: engraving and cutting various labels and number plate.
Art craft: engraving characters of any languages and graphics on gifts and souvenirs.
Applicable materials:
Wood, aluminum board, plastic, density board, MDF board, wave board, PVC, acrylic,crystal, light marble and other nonmetal materials and light metal materials.
Description | Parameter |
X,Y Working Area | 400*400mm |
Z Working Area | 140mm |
Resolution | 0.01mm |
Lathe Structure | Welded steel structure |
X,Y Structure | Ballscrew transmission |
Z Structure | Germanyrolling ball screw, Hiwin square guide rail |
Max. Idling Speed | 8m/min |
Spindle | 1.5KW |
Spindle Rotate Speed | 0-24000r/min, variable speed |
Inverter | Sunfar |
Working Voltage | AC220V/50Hz |
Working Mode | Stepper |
Driver | Leedshine 542 |
Command | G code,HPGL,U00,mmg,plt |
Operating System | DSP with USB interface |
Diameter of cutter | φ3.175-φ12.7mm |
Cooling Mode | Water-cooling |
Work-holding | By Clamp |
Net Weight | 200KG |
Gross Weight | 250KG |
