Home > Products > Advertising CNC Router > CM-1318 Wood Carving CNC Router 1318

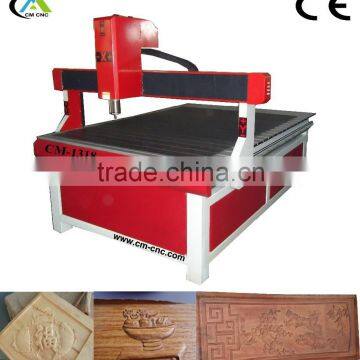

CM-1318 Wood Carving CNC Router 1318
- 300 Set / Sets per Month
- Qingdao Port
- T/T Credit Card
You May Like
-
CM-4040 Multi-purpose Desk Top CNC Router
-
CM-4040 Mini Router CNC Para Trabajar La Madera
-
CM-3030 3 Axis Mini CNC Router For Artcraft
-
CM-6090 Art Carving CNC Router 6090 For Wood Acrylic Metal Stone
-
CM-1212 PCB Board CNC Engraving Machine
-
CM-3030 High Precision CNC Router Metal Engraver/Metal Engraving CNC Router
Product Details
| Condition | New | CNC or Not | CNC | |
| Place of Origin | Shandong, China | Brand Name | CM | |
| Model Number | CM-1318 | Voltage | AC220V/50Hz,Single Phase | |
| Power(W) | 8KW | Dimension(L*W*H) | 2500X1900X1500mm | |
| Weight | 800KGS | Certification | CE | |
| Warranty | One Year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
CM-1318 Wood Carving CNC Router 1318
1. Total welded tubular steel structure, less vibration while fast speed moving.
2. Y adopt durable driving by synchronizing wheel consist of belt and gear shaft . Big power sub-division stepper motors keep stable moving, improve your working efficacy.
3. Control system is PUSH IN type DSP with USB interface. Handy operation, read fiel fast. Support USB disk(pen drive).
Simplize the usage. PCI type NC studio is also available.
4. It will start the work automatically at the point from which the power cut off. More intelligent.
5.Rotary Device, it can engrave cylinder materials.
5. Using quality sensor switch, improve the machine working safty .
Applicable industries:
Wood processing: processing of various furniture such as door, window, cabinet, craft wood door, screen and so on.
Advertisement: engraving and cutting various labels and number plate.
Art craft: engraving characters of any languages and graphics on gifts and souvenirs.
Applicable materials:
Wood, aluminum board, plastic, density board, MDF board, wave board, PVC, acrylic,crystal, light marble and other nonmetal materials and light metal materials
Description | Parameter |
X,Y Working Area | 1300*1800mm |
Z Working Area | 200mm |
Resolution | +0.01mm |
Lathe Structure | Steel structure |
X,Y Structure | Ballscrew transmission |
Z Structure | Germanyrolling ball screw, Hiwin square guide rail |
Max. Idling Speed | 8m/min |
Spindle | 2.2KW |
Spindle Rotate Speed | 0-24000r/min, variable speed |
Inverter | Sunfar |
Working Voltage | AC220V/50Hz,Single Phase |
Working Mode | Stepper |
Driver | Leadshine 860 |
Command | G code,HPGL,U00,mmg,plt |
Operating System | DSP with USB interface |
Diameter of cutter | φ3.175-φ12.7mm |
Cooling Mode | Water-cooling |
Work-holding | By Clamp |
Net Weight | 800KGS |
Gross Weight | 850KGS |
Contact Us
- Licheng Chaomeng CNC Router Sales Department
- Contact nameDavid Yang Chat Now
- Phone86-531-89653553
- AddressDongdu Int'l House, Ind. North Rd., Licheng District
