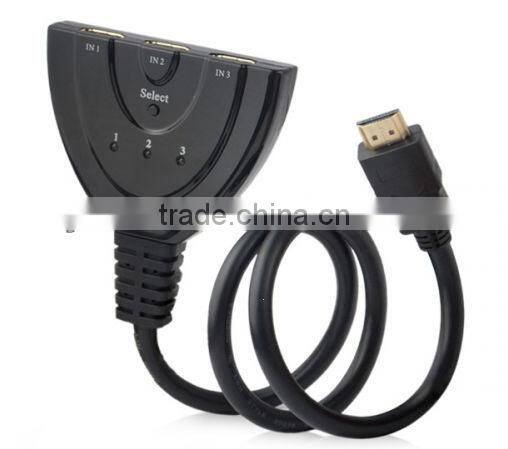

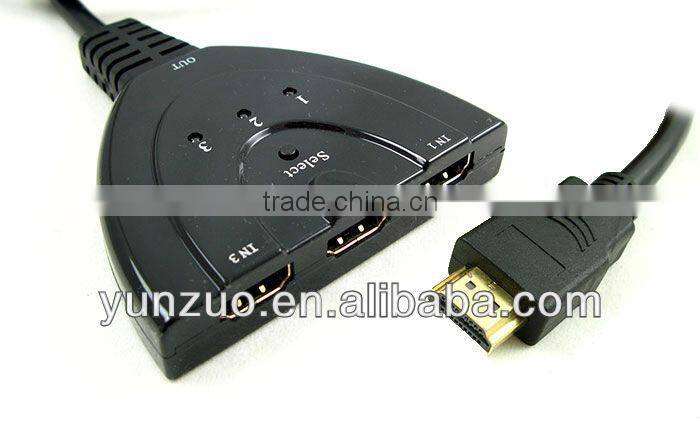

3port Hdmi Switcher, Mini Hdmi 3x1 Switcher

FOB Price

Negotiable / Piece

100 Pieces(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China		Brand Name	Yunzuo
Model Number	HYQ-3301-V2-A

Mini HDMI Switcher 3x1,3 port HDMI Switch
1.Support 12b-bit 1080P,Full HD 3D,CEC
2.Gold plated Connectors
3.HDMI spec,RoHS

3port hdmi switcher, mini hdmi 3x1 switcher

1,Support with HDMI1.3b
2,Support 12-bit Deep Color.
3,24K gold plated connector
4,High performance up to 2.5Gbps

Introduction

This HDMI Switcher has many features that enable it to perform in a superior manner. Among those features you will find:

1,Support with HDMI1.3b

2,Support 12-bit Deep Color.

3,24K gold plated connector

4,High performance up to 2.5Gbps

5,Multifunctional on switching : intelligent or mechanical

6,Maintains high resolution video - beautiful, sharp HDTV resolutions up to 1080p, 2k, and computer resolutions up to 1920 x 1200 are easily achieved

7,HDMI pass-through

8,HDCP pass-through

SPECIFICATIONS

Signal Inputs/Output
Input Video Signal	0.5-1.0 volts p-p
Input DDC Signal	5 volts p-p (TTL)
Maximum Single Link Range	1920X1200, 1080P
Output Video	HDMI 1.3b + HDCP 1.0/1.1
Video format supported
DTV/HDTV	480i/576i/480p/576p/720p/1080i/1080P
Digital Signal I/O
HDMI Compliance	HDMI 1.3b
Operating Frequency
Video Amplifier Bandwidth	2.5Gpbs/250MHz
Vertical Frequency Range	50/60Hz
Resolutions(HDTV)
Interlaced(50&60Hz)	480i,576i,1080i
Progressive(50&60Hz)	480p,576p,720p,1080p
Warranty
Limited Warranty	1 Year Parts and Labor
Environmental
Operating Temperature	0 °C to +70°C
Operating Humidity	10% to 85 % RH (no condensation)
Storage Temperature	-10°C to +80°C
Storage Humidity	5% to 90 % RH (no condensation)
Power Requirement
External Power Supply	No power needed
Regulatory Approvals
Converter Unit	FCC,CE,UL
Power Supply	UL,CE,FCC
Accessories Adapter
AC Power Adapter	US standard, UK standard and so on
User Manual
