Specifications

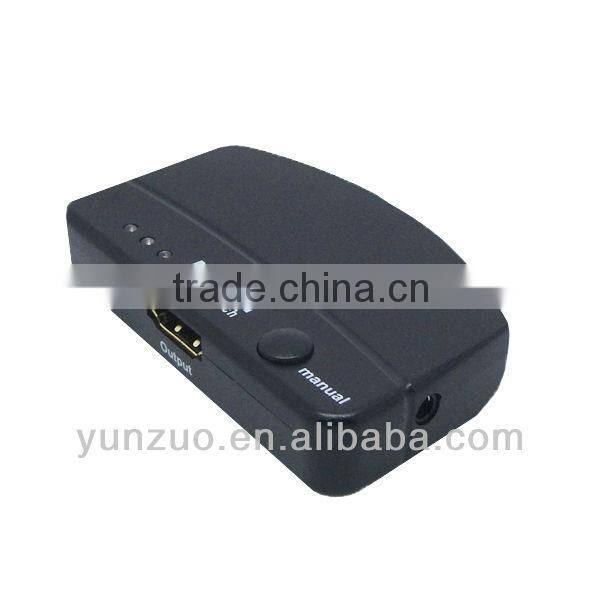

Mini 3x1 HDMI Switch 1x3 1080P

Introduction

The 3x1 HDMI Switcher allows access to multiple HDMI sources, using a single HDMI sink. The Switcher allows

three HDMI devices to be switched easily through one HDMI compatible monitor or projector. The Switcher can

also be placed at the end of a long HDMI cable to regenerate the HDMI signal.

Our devices offer solutions for noise, space and security concerns, data center control,

information distribution, conference room presentation, school and corporate training

environments.

FEATURES

Three HDMI input signals switched to a single HDMI sink devices

Support deep color 30bit, 36bit

Support Blue-Ray 24/50/60fs/HD-DVD/xvYCC

Digital audio format, as DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD

Support signal retiming

Support input up to 15metres AWG26 HDMI standard cable length,

output up to 25metres AWG26 cable length

Inputs can be switched with the IR remote control,also can be controlled by button.

It can smartly jump over those input sources which are not connected.

No loss of quality

Installs in minutes

SPECIFICATIONS:

HDMI resolution ………………………....24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i

Support video color format …………………………..…………….24bit/deep color 30bit,36bit

Support audio format……………….DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD

Max bandwidth……………………………………………………………………………250MHz

Max baud rate…………………….………………….……………………………………7.5Gbps

Input/Output TMDS signal ………….…………………………..………...0.5~1.5Volts p-p(TTL)

Input/Output DDC signal ……………………………………………..………… 5Volts p-p (TTL)

Input cable distance..…... ……………………….…….…≤15m AWG26 HDMI standard cable

Output cable distance…………………………..…….…...≤25m AWG26 HDMI standard cable

Max working current………………………………………………………………………...350mA

Operating Temperature range……..…………….………………………………… (-15 to +55°C)

Operating Humidity range………………………….….……….5 to 90%RH (No Condensation)

Dimension (L x W x H) ……………………………….….………………………77x45x15 (mm)

Weight…..…………………………………………………………..……………………………..35g
