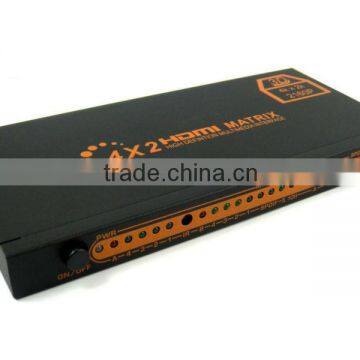

hdmi matrix switch ultra HD real 3D support V1. 4 inputs 2 ouputs 4k 2k

Specifications

hdmi matrix switch ultra HD real 3D support V1. 4 inputs 2 ouputs

This Matrix 4x2 HIFI can connect four high definition sources and two sinks with audio output optical

or stereo simultaneously. It can easily switch or split four high definition video sources

to two compatible displays or projectors. The Optical and stereo audio output can extract

audio signal from output A.

 Features

Four HDMI input signals switched or split to two HDMI sink devices
One of the HDMI output is with audio output by SDPIF and 3.5mm Stereo Audio output
Audio sync separator output can be achieved with 2CH, 5.1CH, Pass three audio modes selectable
Support 3D
Support 4K X 2K
With HDMI-CEC function
Support deep color 30bit, 36bit
Support Blue-Ray 24/50/60fs/HD-DVD/xvYCC
Digital audio format, as DTS-HD/Dolby-trueHD/LPCM7.1/Dolby-AC3/DSD
Support signal retiming
Support input up to 15metres AWG24 HDMI standard cable length
output up to 25 metres AWG24 cable length
Inputs can be switched with the IR remote control, also can be controled by two buttons

MHLinterface RCPfunction, OUT Asupports RCPfunction. Through the TV remote control
to realize the control of the mobile device and matrix switch (mobile devices should support RCP
unction and TV support CEC function)
MHL/HDMI two working mode. Two inputs combined in one, effectively reduced the inputs numbers
It can smartly jump over those sources which are not connected
It can come back to the default the input 1 status when testarted or teset
LED Indecate: when someone source device or someone sink display device is working, the
LED relative will come to light;when someone source is selected to any sink, the LED relative
to the source will come to light
No loss of quality
Installs in minutes
Need DC 5V/3Apower supply

IR Remote Operating Instruction
1. Firstly take off the plastic film that inserted in the rear of remote board
2. The Aand B signifies the HDMI Aoutput B output
3. If the Signal output from A, Only press the number key below Aline. Like after you press the 2
key under Aline, the signal 2 will output from A
4. ARC: Audio return switch (only the OUT-A output port support this feature).
5. SPDIF/:SPDIF and Headset audio ON/OFF switch
6. 2CH:2 channel stereo mode.
7. 5.1CH:5.1 channel model.
8. AUDIO COPY: Read EDID from sink devices automatically
9. Please insulate plastic film into remote panel tail for safety when you are not on remote control

Package Contents

Before attempting to use this unit,please check the packaging and make sure the following items are contained in the shipping carton:

1. 5VPower Adapto
2. Remote
3. One pc of Manua
4. MHL-HDMI Line

Following is the product pictures:
