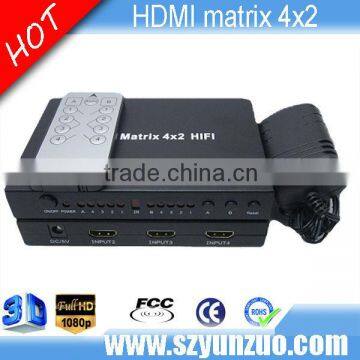

High quality HDTV HDMI matrix 4x2

FOB Price

US$ 50 - 55 / Piece

10 Pieces(Min. Order)

Port Shenzhen

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	Yunzuo		Model Number	HY-CAT5e6-60M-TX-V0
Place of Origin	Guangdong, China

Product Description

Specifications

1.switch matrix 4x2
2.Plug and play
3.Remote control for outputs
4.Stereo,Toslink or COAX audio
5.OEM

High quality HDTV matrix 4x2

The HDMI SWITCH SPLITTER Matrix routes high definition video in multiple resolutions up to 1080p plus multichannel digital audio from any of the four HDMI sources to two displays.

It eliminates the needing of disconnects and reconnects sources to a display equipped with one input. It works with HD-DVD players, Blue Ray DVD, PS3, and satellite set top boxes that connect to two HDMI displays.

Every source is accessible at all times by any display by selecting it with an IR remote.

* Supports audio output simultaneously: Stereo, Toslink and Coaxial

* It can be selected using Remote control for output A. 5.1CH can be sent by Toslink and Coaxial

* Supports 12bit per channel (36bit all channel) deep color.

* Supports uncompressed audio such as LPCM.

* Supports compressed audio such as DTS Digital, Dolby Digital

* Supports Resolutions: 1080p/1080i/720p/576p/480p/576i/480i Full-HD Chain: 1080p cascade above 6 layers Support video color format: deep color 24bit/36bit

HDR4x2 can be used anywhere high-definition video applications are used. In HDTV installations, where several sources need to be switched to different displays, SmartAVI's Matrix Switch Series is the perfect solution.

Video
Format	HDMI 1.3b [Deep Color, xvYcc color space supported]
DVI Compliance	Single-link DVI-D 1.1
HDCP Compliance	1.0/1.1
Video Bandwidth	Single-link 340MHz [10.2Gbps]
Resolution	480i,480p,720i,720p,1080i,1080p
Input Interface	(4) HDMI[7.1ch audio & video]
Output Interface	(2) HDMI[7.1ch audio & video]
Connector	Type A[19-pin female]
Maximum Distance	25 ft.
Control
Front Panel	Tact Switch
IR	Via Remote Control with IR Type 3
Other
Power	External 100-240 VAC/5VDC2A @10W
Dimensions	6.625”W x 1”H x 2.875”D
Weight	0.8 lbs.
Approvals	UL, CE, ROHS Compliant
Operating Temp.	32-131°F (0-55 °C)
Storage Temp.	-4-185 °F (-20-85 °C)
Humidity	Up to 95%
