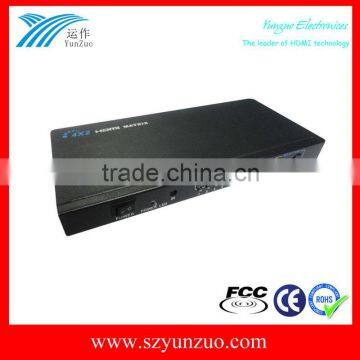

4 input 2 output hdmi switch splitter

Specifications

4 input 2 output hdmi switch splitter

1. Description

If you're like most people, you have your home theater setup in one room, but have TVs in other rooms as well. This gives everyone in the house the ability to watch what they want, when they want. But what if the kids want to watch a DVD while you want to watch the big game in the living room with your friends? You can lug the DVD player to the other room for the kids, but a better solution is to use an this 4x2 True Matrix HDMI Switch from Monoprice!

With this switch you don't need to move equipment from room-to-room, nor do you have to buy duplicate equipment for the other room. This matrix provides 4 HDMI inputs, which allows you to connect the Xbox 360™, cable box, blu-ray player, and the output from your Android phone. Any of these four inputs can be independently selected for either of the two outputs. Both displays can select the same or different inputs.

The switch includes a remote control, allowing direct selection of any of the inputs for each of the two outputs. Additionally, the matrix can be controlled by a computer, via an RS232 serial port, as well as front panel controls.

The matrix supports the full High Speed 1080p@60Hz HDMI video resolution and features a 6.75Gbps bandwidth, sufficient to support 3D video, 36-bit Deep Color, x.v.Color, and high-definition multichannel audio, including Dolby TrueHD™ and DTS-HD Master Audio™. It is powered by an included 5 VDC, 2A AC adapter. The four input and two output HDMI ports are gold plated to ensure smooth, corrosion-free connections.

2.Features

4x2 non-blocking, single-link HDMI matrix switch

Distributes any of the four inputs to any combination of the two HDMI output displays Supports optional IR remote

HDMI support 1.3c

HDCP support 1.0/1.1

Bandwidth 340 MHz (10.2 Gbps)

Total Transmission Max 25ft

Resolution 480i,480p,720i,720p,1080i,1080p

Individual tactile buttons for switching HDMI source to each display

3. Applications

HDR4x2 can be used anywhere high-definition video applications are used. In HDTV installations, where several sources need to be switched to different displays, SmartAVI's Matrix Switch Series is the perfect solution.

4. Specification

Size: 25.8cm x 11.2cm x 2.5cm
Support for Deep Color Signal.
Support for LPCM/Dolby-AC3/DTS®7.1/DSD
Autoskip for unconnected inputs.
Operating temp: -5 to +35 degrees C (-41 to +95 degrees F)
Data transfer speed: 2.25 Gbps x 3
Input Video Signal: 0.5-1.0 volts p-p
Input DDC Signal: 5 volts p-p (TTL)
Max working current: 1200mA
Power adapter supply: DC 5V, 2A
Power adapter format: Input AC (50Hz.60Hz) 100V-240V; Output DC 5V
Supported Resolutions: 1080p/1080i/720p/576p/480p/576i/480i
Full-HD Chain: 1080p cascade above 6 layers
Support video color format: deep color 24bit/36bit
Support audio format: PCM, Dolby®-AC3, DTS®7.1, DSD
HDMI output cable distance: <=15m (can be extended with amplifier in most cases)
Dimensions: 10 3/16" x 4.5" x1.25"
