HDMI converter to S video

Specifications

HDMI converter to S video

I. Description:

HDMI to CVBS signal converter which will convert HDM video signal or audio signal to AV (CVBS) composite

video signal and the FL / FR stereo audio signals, while support DVI system sideline signals. Help users

convert the high quality of the HDMI video signal into normal CVBS signal (standard-definition 480i, 576i,).So

that can play on TV, VHS VCR, DVD recorders, etc. Support NTSC and PAL two TV format.

II.Features:

 Hardware conversion, plug and play without any software driver

 Compatible HDMI1.3

 Support NTSC and PAL two standard TV formats

 One HDMI input, one AV output, one stereo output

 Inputs: HDMI x 1

 Outputs: AV x 1; L / R x 1

 HDMI input: 480P, 576P, 720P, 1080I, 1080P @ 60Hz

 compatible with DVI mode 800x600,1024x768,1280x720,1280x1024,1920x1080/@60hz

 Support the HDCP protocol, support for HDMI 1.3

 CVBS output: 480I, 576I

 Audio output: L/R channels

 Dimensions:100mm(W)x115mm(D)x 25mm(H)

III.Application Areas:

 A. Civil Industry: set-top boxes, XBOX360, PS3, high-definition players

 B. Industrial sector: high-definition camera, video camera, with this common display device will instead of big screen HDMI television monitors, to reduce the cost and space.

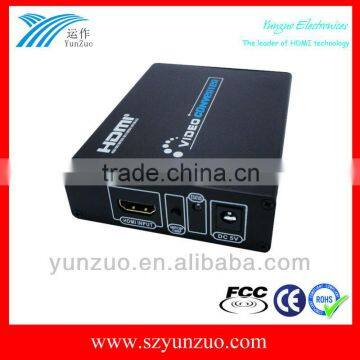

IV.Picture:
