Home > Products > Automatic Transfer Switch > 600A automatic transfer switch; ATS

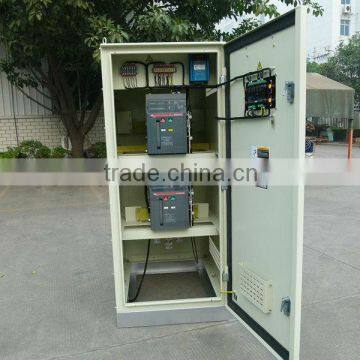

600A automatic transfer switch; ATS
- 50 Set / Sets per Month
- T/T
You May Like
Product Details
| Place of Origin | Fujian, China | Brand Name | POWERCITY | |
| Model Number | PTS-400 |
Product Description
Specifications
1. OEM2. Automatic Transfer Switch
3. 125A-2000A
PTS-400 CONTROLLER
The PTS-400 is an Automatic Transfer System Control Module. It precisely measure and display two source single phase AC voltage and output free voltage controlling switch signal. This module is compatible for a variety of ATS system and can be widely use for electrical devices in many fields such as electric power distribution systems, telecommunication, petroleum, coal, metallurgy and electric transport industry. Commercial and residential use where main and backup power source is required
Features :
• Measure two source with multi-parameters including over voltage, under voltage, over frequency, under frequency and out of phase AC signal..
• Microprocessor based design with LED display and touch pad operation.
• Measure and display two source 3-phase AC voltage precisely.
• Function of start generator and auto transfer when one switch fails to the other working switch.
• Password protection to prevent unauthorize reconfiguration of parameters.
• Parameters stored in a non-volatile memory and remains even during power failure.
• Parameters can be configured locally or remote
| SPECIFICATIONS | ||
| MODEL | PTS -125 | |
| Rate Ampere | 125 A | |
| Phase | 1Ø | 3Ø |
| Rated Voltage | 200~240V | 380~440V |
| Rated Frequency | 50Hz / 60Hz | |
| Transfer of Switch | Solenoid type | |
| No. of Poles | 2P | 3P or 4P |
| Enclosure | NEMA 3 | |
| Dimensions (cm) | 61(L) x 38(W) x 28(H) | |
| Dry Weight | 27Kg | |
| SPECIFICATIONS | ||
| MODEL | PTS -250 | |
| Rate Ampere | 250 A | |
| Phase | 1Ø | 3Ø |
| Rated Voltage | 200~240V | 380~440V |
| Rated Frequency | 50Hz / 60Hz | |
| Transfer of Switch | Solenoid type | |
| No. of Poles | 3P or 4P | |
| Enclosure | NEMA 3 | |
| Dimensions (cm) | 61(L) x 38(W) x 28(H) | |
| Dry Weight | 50Kg | |
| SPECIFICATIONS | |||
| MODEL PTS -400 | |||
| Rate Ampere 400 A | |||
| Phase 1Ø 3Ø | |||
| Rated Voltage 200~240V 380~440V | |||
| Rated Frequency 50Hz / 60Hz | |||
| Transfer of Switch Solenoid type | |||
| No. of Poles 3P or 4P | |||
| Enclosure NEMA 3 | |||
| Dimensions (cm) 77(L) x 49(W) x 28(H) | |||
| Dry Weight 50Kg | |||
