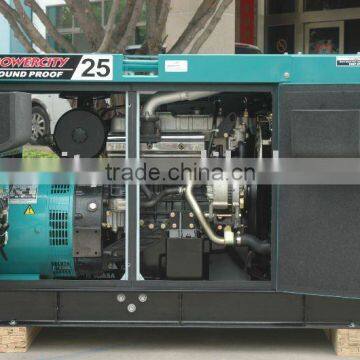

25KVA diesel generator

General Feature

• ISUZU 4JB1 design diesel engine and Powercity AC alternator SLG184H
• Output range: prime power 25KVA at 1800 rpm
• Alternator with 68% higher than genset rated output
• Comact design---minimize transportatio cost and warehousing
• Silent type----less than 68db at 7 meters with 80% load
• Multi voltage selections; 3 phase 4 wires or 2 wires zigzag connection, 220-440V, 50/60Hz, betwen 0.8 to 1.0 lagging and protection capability
• Pure single phase. 1 phase, 3 wire, 110/220V, 50Hz available upon request.
• Manual start/auto start(for ATS)

Main Parameter

Engine

• Model: ISUZU 4JB1
• Type: Inlined, swirl chambered

• Output rating	PS/rpm	36/1500	46/1800
  	KW/min-1	25/1500	32/1800

• Cylinder---Bore* Stroke(mm): 4*93*102
• Pistom displacement(L): 2.771
• Fuel(L): ASTM No. 2 diesel fuel or equivalent
• Fuel consumption@ 75% Load(L/h): 3.8/4.5
• Lubribricant Capacity(L): 4.5~5
• Battery capacity(V-Ah): 12V~80Ah
• Fuel tank capacity(L): 85

Powercity AC Alternator

• Model: SLG184H

• Frequency	HZ	50	60
  Output	Continuous	33.7	42.2
  (KVA)	Standby	37.5	46.9

• Rated voltage: 200~380/220~440
• Power factor: 0.8(lagging)
• Voltage regulation: within±1.5
• Brushless self-excitation with permanet magnet
• Class 'H" insulation
• Standard degree of protection IP23
• Automatic voltage regulation(AVR)
• With Fan cooling
• AC excitation, rotating rectification tube
• Stator grease insulation covered
