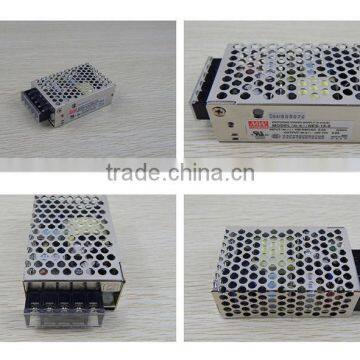

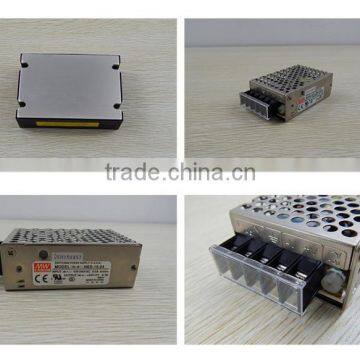

NES-15 Meanwell 15W 24V Switching Power Supply Instead S-15

MODEL

NES-15-5

NES-15-12

NES-15-15

NES-15-24

NES-15-48

 OUTPUT

DC VOLTAGE

5V

12V

15V

24V

48V

CURRENT RANGE

0 ~ 3A

0 ~ 1.3A

0 ~ 1A

0 ~ 0.7A

0 ~ 0.35A

RATED CURRENT

80A

42A

33.5A

21A

10.5A

RATED POWER

15W

15.6W

15W

16.8W

  16.8W

RIPPLE & NOISE

150mVp-p

150mVp-p

150mVp-p

200mVp-p

240mVp-p

VOLTAGE ADJ. RANGE

4.5 ~ 5.5V

10.8~13.2V

13.5~16.5V

21.6 ~ 27V

43.2~52.8V

VOLTAGE TOLERANCE

2.0%

1.0%

1.0%

1.0%

  1.0%

LINE REGULATION

1.5%

0.5%

0.5%

0.5%

0.5%

LOAD REGULATION

1.5%

0.5%

0.5%

0.5%

0.5%

SETUP RISE TIME

1000ms, 30ms/230VAC    1000ms, 30ms/115VAC at full load

HOLD UP TIME

100ms/230VAC    20ms/115VAC at full load

 INPUT

VOLTAGE RANGE

85 ~ 264VAC   120 ~ 370VDC

FREQUENCY

47 ~ 63Hz

POWER FACTOR

0.95/230VAC    0.98/115VAC at full load

EFFICIENCY

79%

81%

81%

85%

82%

AC CURRENT

0.35A/115VAC    0.25A/230VAC

INRUSH CURRENT

COLD START 45A

LEAKAGE CURRENT

<2mA / 240VAC

 PROTECTION

OVER LOAD

Above 105% rated output power

Protection type : Hiccup mode, recovers automatically after fault condition is removed

OVER VOLTAGE

5.75 ~ 6.75V

13.8 ~ 16.2V

17.25 ~ 20.25V

27.6 ~ 32.4V

55.2 ~ 64.8V

Protection type : Shut off

OVER TEMP

U1 Tj 140 typically (U1) detect on main control IC

Protection type : Shut down o/p voltage, recovers automatically after temperature goes down

Protection type : Shut down o/p voltage with auto-recovery

 OTHERS

MTBF

563.5Khrs min. MIL-HDBK-217F (25 )

DIMENSION

78*51*28mm (L*W*H)

PACKING

0.18Kg; 60pcs/11.8Kg/0.46CUFT
