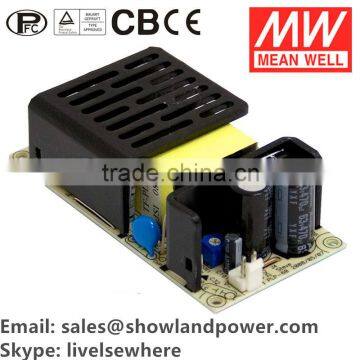

PLP-60 60w Meanwell internal driver for indoor lamp

MODEL

PLP-60-12

PLP-60-24

PLP-60-48

OUTPUT

DC VOLTAGE

12V

24V

48V

CONSTANT CURRENT

9 ~ 12V

18 ~ 24V

36 ~ 48V

CURRENT RANGE

0 ~ 5A

   0 ~ 2.5A

0 ~ 1.3A

RATED CURRENT

5A

2.5A

1.3A

RATED POWER

60W

60W

62.5W

RIPPLE & NOISE (max.)

4.5Vp-p

4.5Vp-p

4.8Vp-p

VOLTAGE ADJ.RANGE

3.75 ~ 5A

1.875 ~ 2.5A

0.975 ~ 1.3A

VOLTAGE TOLERANCE

10%

LINE REGULATION

3.0%

LOAD REGULATION

5.0%

SETUP, RISE TIME

1000ms / 230VAC 2000ms / 115VAC at full load

HOLD UP TIME (Typ.)

INPUT

VOLTAGE RANGE

90 ~ 264VAC

FREQUENCY RANGE

47 ~ 63Hz

POWER FACTOR

PF  0.9 at 75 ~ 100% load, 115VAC / 230VAC

EFFICIENCY (Typ.)

84%

88%

89%

AC CURRENT (Typ.)

0.8A/115VAC 0.4A/230VAC

INRUSH CURRENT (Typ.)

42A/230VAC

LEAKAGE CURRENT

<0.75mA / 240VAC

PROTECTION

OVERCURRENT

100 ~ 110%

Protection type : Constant current limiting, recovers automatically after fault condition is removed

SHORT CIRCUIT

Protection type : Hiccup mode, recovers automatically after fault condition is removed

OVER VOLTAGE

15 ~ 18V

28 ~ 33V

57 ~ 63V

Protection type : Shut down o/p voltage, re-power on to recover

OVER TEMPERATURE

ENVIRONMENT

WORKING TEMP.

-30 ~ +70 (Refer to output load derating curve)

WORKING HUMIDITY

20 ~ 95% RH non-condensing

STORAGE TEMP, HUMIDITY

-40 ~ +80 , 10 ~ 95% RH

TEMP. COEFFICIENT

0.03%/ (0 ~ 50 )

VIBRATION

10 ~ 500Hz, 2G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY &EMC(Note 4)

SAFETY STANDARDS

TUV EN61347-1, EN61347-2-13 approved ; design refer to UL60950-1

WITHSTAND VOLTAGE

I/P-O/P:3.75KVAC I/P-FG:1.88KVAC O/P-FG:0.5KVAC

ISOLATION RESISTANCE

I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25 / 70% RH

EMI

Compliance to EN55015

HARMONIC CURRENT

Compliance to EN61000-3-2 Class C( 75% load); EN61000-3-3

EMS

IMMUNITY

Compliance to EN61000-4-2,3,4,5,6,8,11; ENV50204, EN55024,EN61547, light industry level, criteria A

OTHERS

MTBF

583.3Khrs min. MIL-HDBK-217F (25 )

DIMENSION

101.6*50.8*29.6mm (L*W*H)

PACKING

0.16Kg; 96pcs/16.4Kg/0.89CUFT
